Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear washer hose to the rear washer nozzle.
  2. Position the rear washer nozzle to the liftgate opening pressing in until fully seated.
  3. Remove the tape from around the rear washer nozzle area.

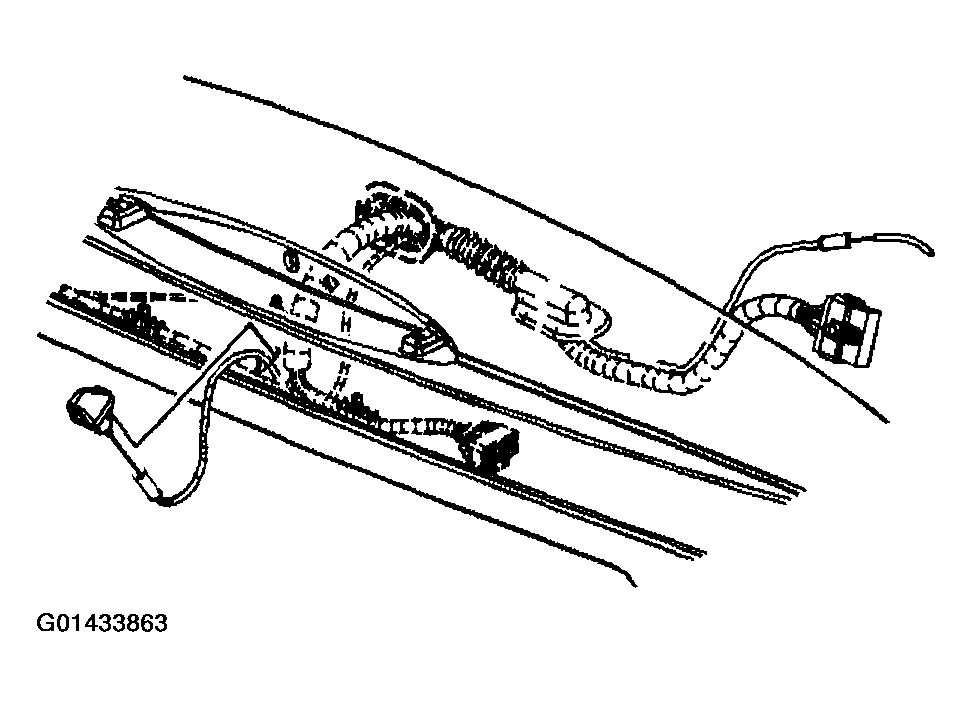

    Fig 1: Installing Rear Washer Nozzle To Liftgate
    G01433863Courtesy of GENERAL MOTORS CORP.
