Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right wheelhouse panel. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.
  2. Remove the right hinge pillar trim panel. Refer to TRIM REPLACEMENT - HINGE PILLAR in Interior Trim.
  3. Remove the right lower center pillar molding. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
  4. Remove the right rear upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  5. Remove the rear dome lamp. Refer to DOME LAMP REPLACEMENT in Lighting Systems.
  6. Remove the 2 push in retainers (2) from the rear of the headliner (1).
    Fig 1: Removing Push In Retainers From Rear Of Headliner
    G01433844Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the rear washer hose (9) from the rear washer pump.
  8. Remove the rear washer hose end (9) out through the rubber conduit opening (12) under the right side of the instrument panel.
  9. Pull the rear edge of the headliner down to gain access to the rear washer hose (9).
  10. Disconnect the rear washer hose (9) from the washer nozzle hose (4).
  11. Remove the rear washer hose (9) from inside of the rear roof panel.
  12. Remove the rear washer hose (9) from the vehicle.

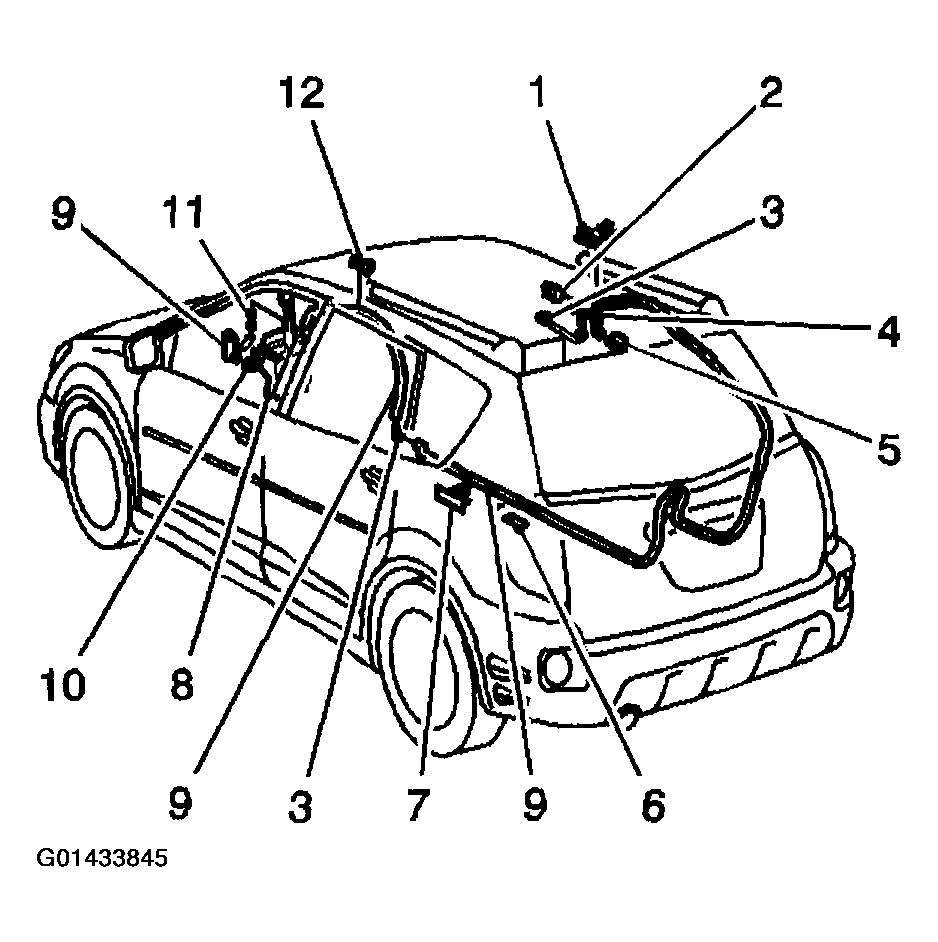

    Fig 2: Removing Rear Washer Hose From Vehicle
    G01433845Courtesy of GENERAL MOTORS CORP.
