Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate window.
  2. Disconnect the rear washer nozzle hose (1) from the rear washer nozzle (2).
  3. Remove the rear washer nozzle hose connector (3) from the roof panel grommet (4).
  4. Remove the rear washer nozzle hose (1) from the retainer (5).
  5. Remove the rear washer nozzle hose (1) from the lift gate (6).

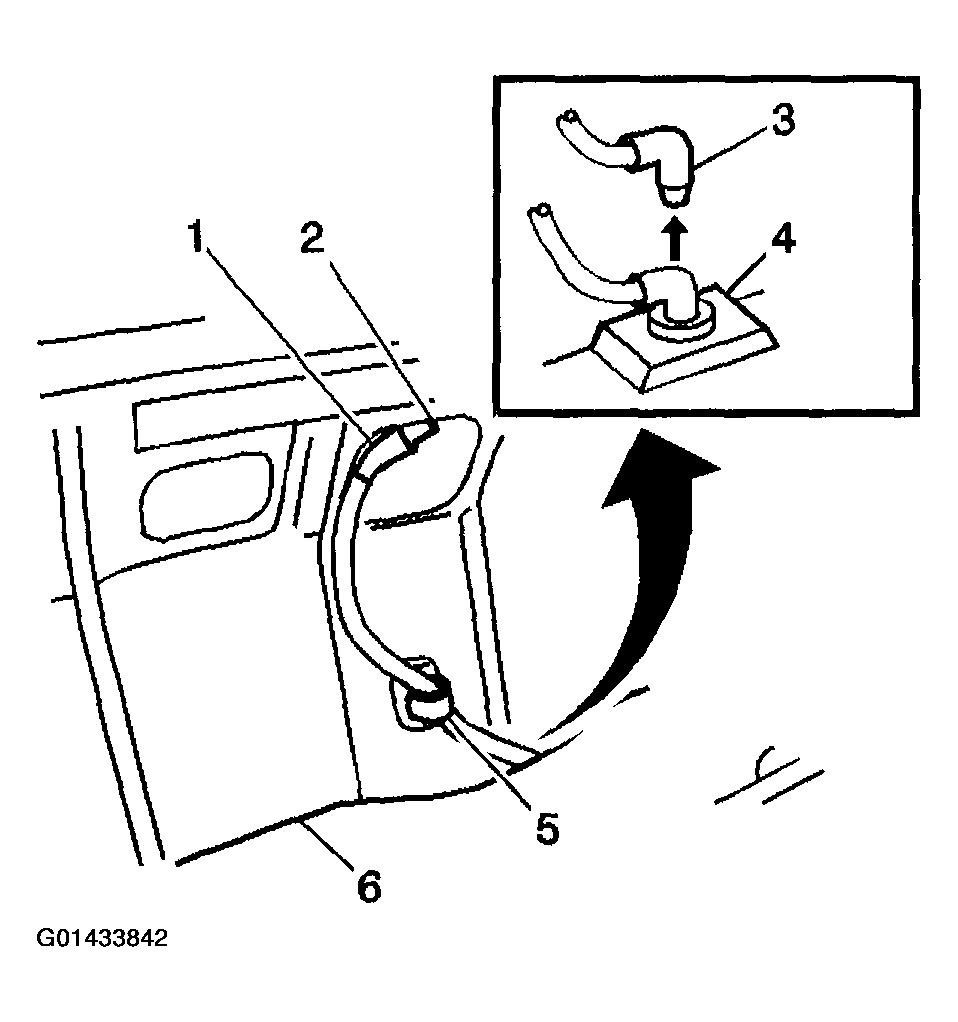

    Fig 1: Removing Rear Washer Nozzle Hose Connector From Roof Panel Grommet
    G01433842Courtesy of GENERAL MOTORS CORP.
