Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the rear washer nozzle hose connector (3) to the roof panel grommet (4).
  2. Connect the rear washer nozzle hose (1) to the rear washer nozzle (2).
  3. Secure the rear washer nozzle hose (1) to the retainer (5).
  4. Close lift gate window.

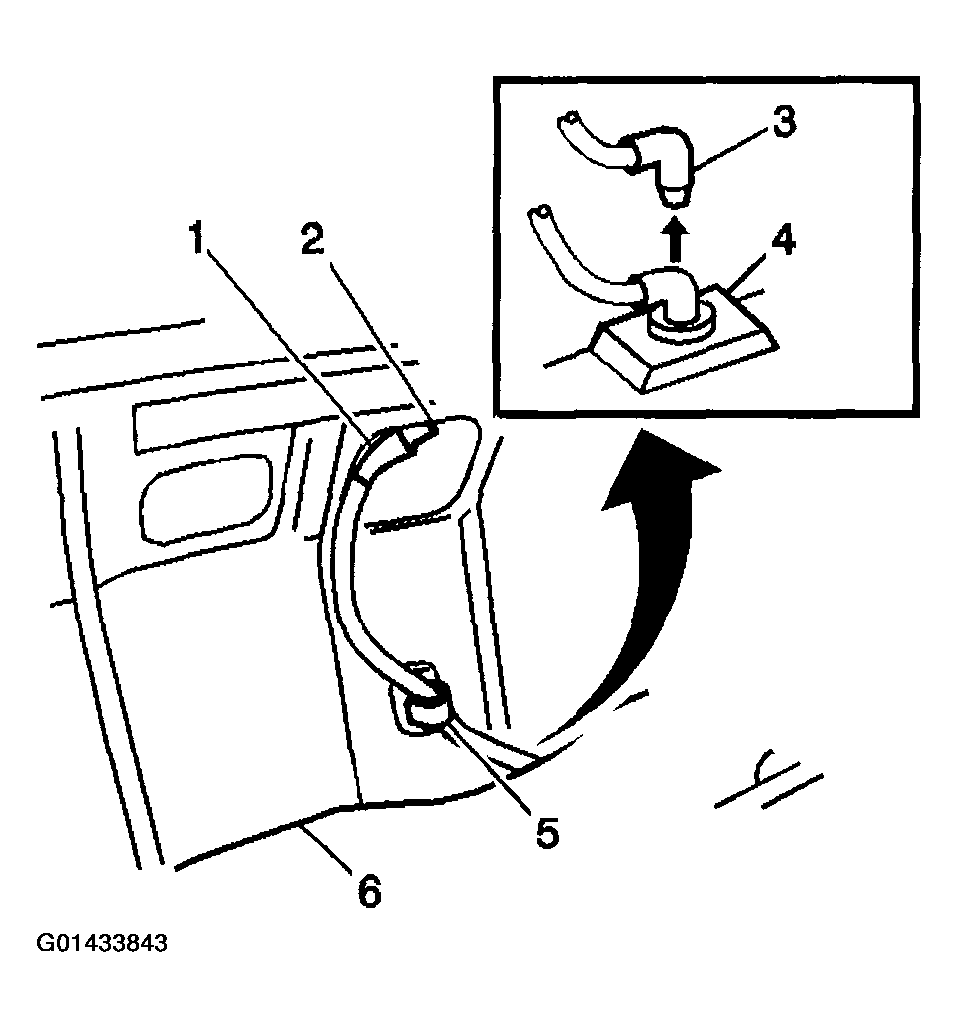

    Fig 1: Installing Rear Washer Nozzle Hose Connector To Roof Panel Grommet
    G01433843Courtesy of GENERAL MOTORS CORP.
