Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the rear window wiper blade in order to clear the retaining tab.
  2. While lifting the blade, slide the rear window wiper insert (1) out of the rear window wiper blade (2).

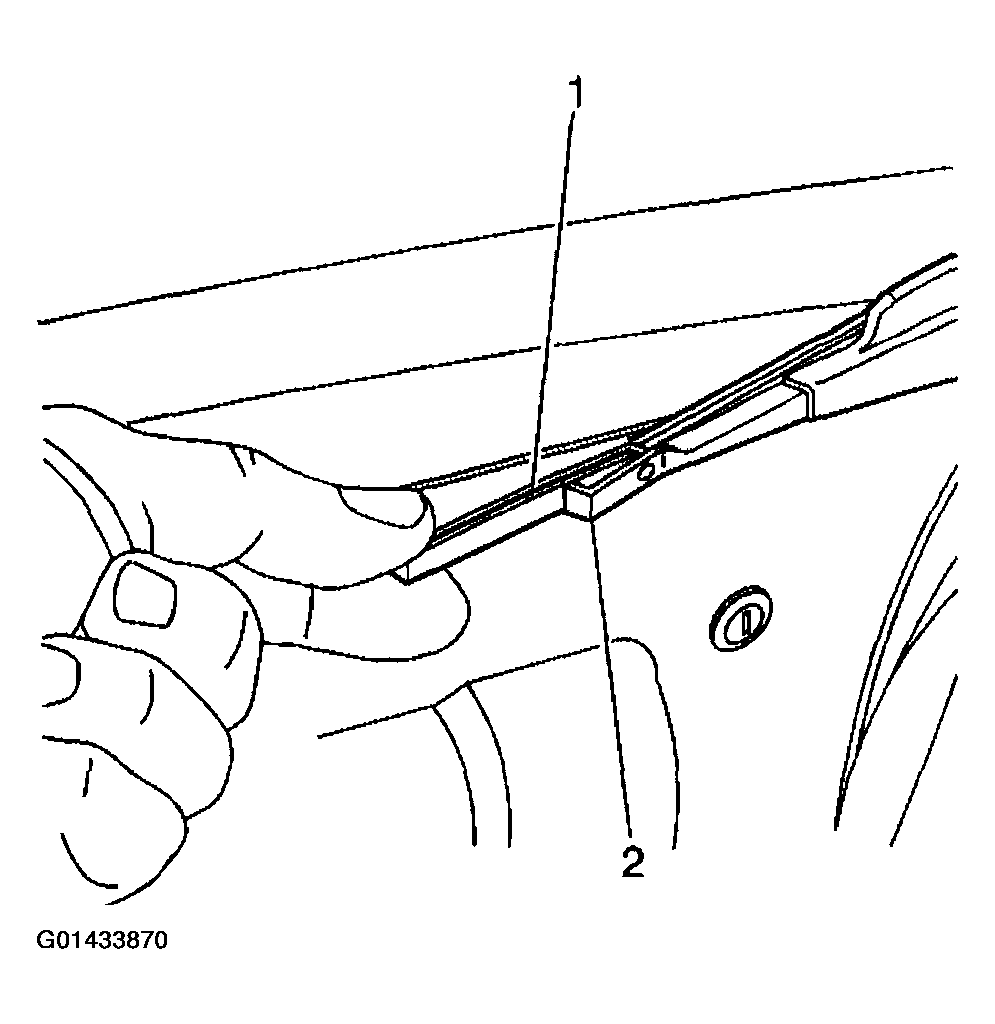

    Fig 1: Sliding Rear Window Wiper Insert Out Of Rear Window Wiper Blade
    G01433870Courtesy of GENERAL MOTORS CORP.
