Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Slide the rear window wiper blade insert (1) completely through the rear window wiper blade (2) until the insert (1) snaps into place and locks.

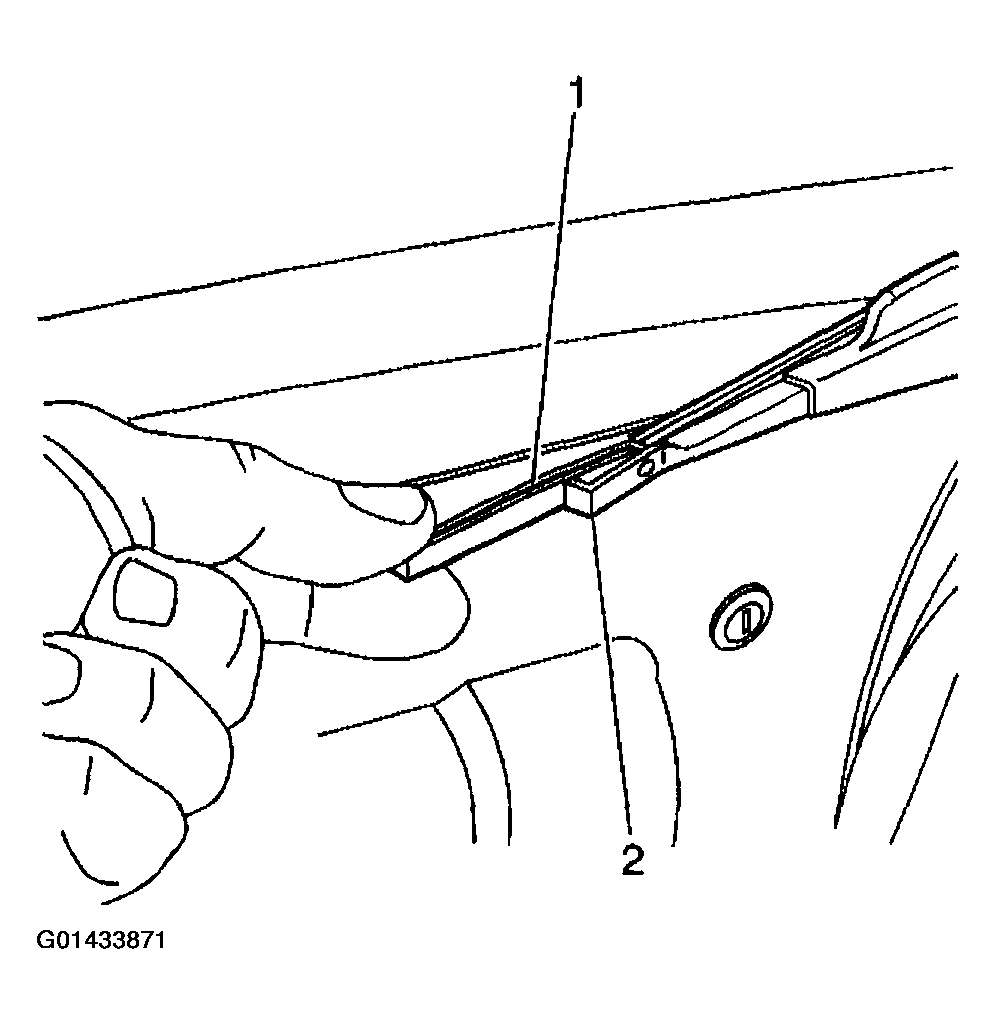

Fig 1: Sliding Rear Window Wiper Blade Insert To Rear Window Wiper Blade
G01433871Courtesy of GENERAL MOTORS CORP.
