Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove passenger-side knee bolster. Remove Connector Position Assurance (CPA) clip from passenger-side air bag module Yellow 2-pin connector and disconnect connector. See Fig 2. Remove passenger-side air bag module mounting bolts. Remove passenger-side air bag module from instrument panel.
To install, reverse removal procedure. Tighten passenger-side air bag module mounting bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

Fig 1: Removing Driver-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.

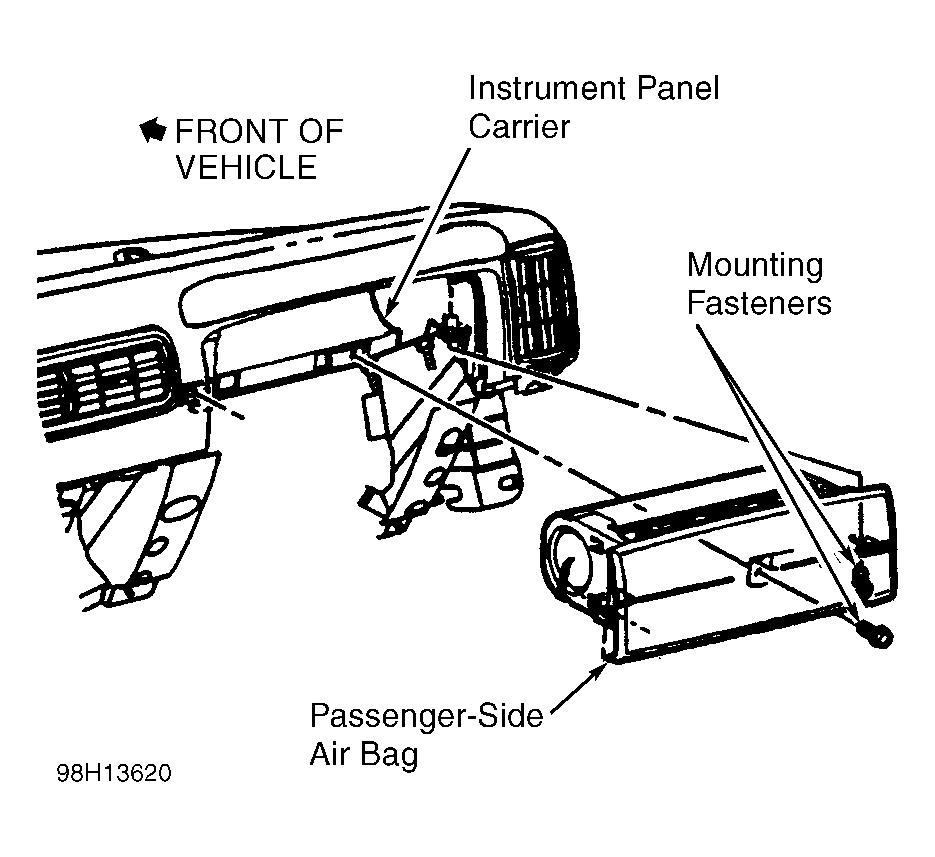

Fig 2: Identifying Passenger-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
