Centering Sir Coil Assembly
WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

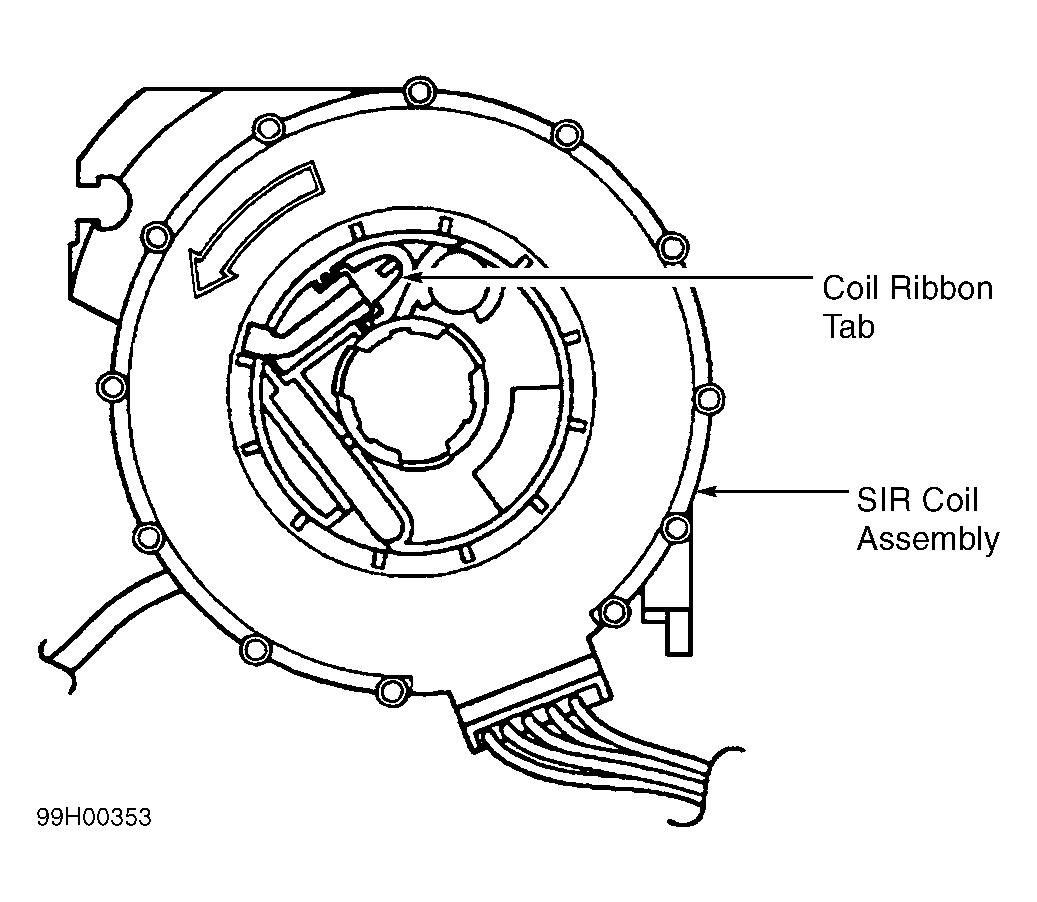

Hold SIR coil assembly with clear bottom facing upward so coil bottom is visible. While holding coil assembly housing, depress spring lock and rotate hub in direction of arrow until it stops. Coil ribbon should now be wound up snugly against center hub. Rotate coil hub in opposite direction approximately 2 1/2 turns. Release spring lock between locking tabs. See Fig 1.
