Interior Lights Schematics (I/P Lamp Dimmer)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

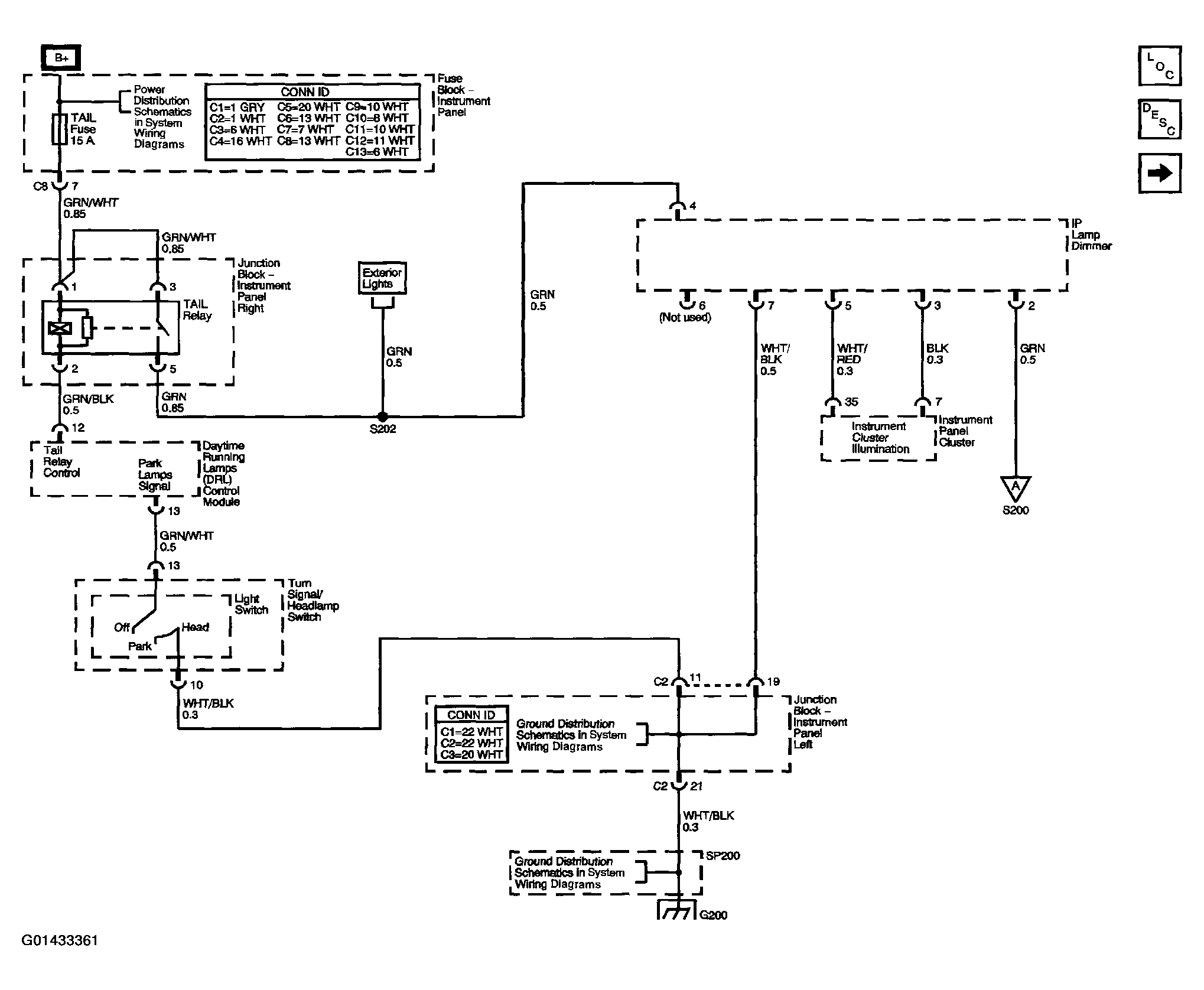

Fig 1: Interior Lights Schematics (I/P Lamp Dimmer)
G01433361Courtesy of GENERAL MOTORS CORP.
