Interior Lights Dimming Schematics (Dome/Courtesy Lamps)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

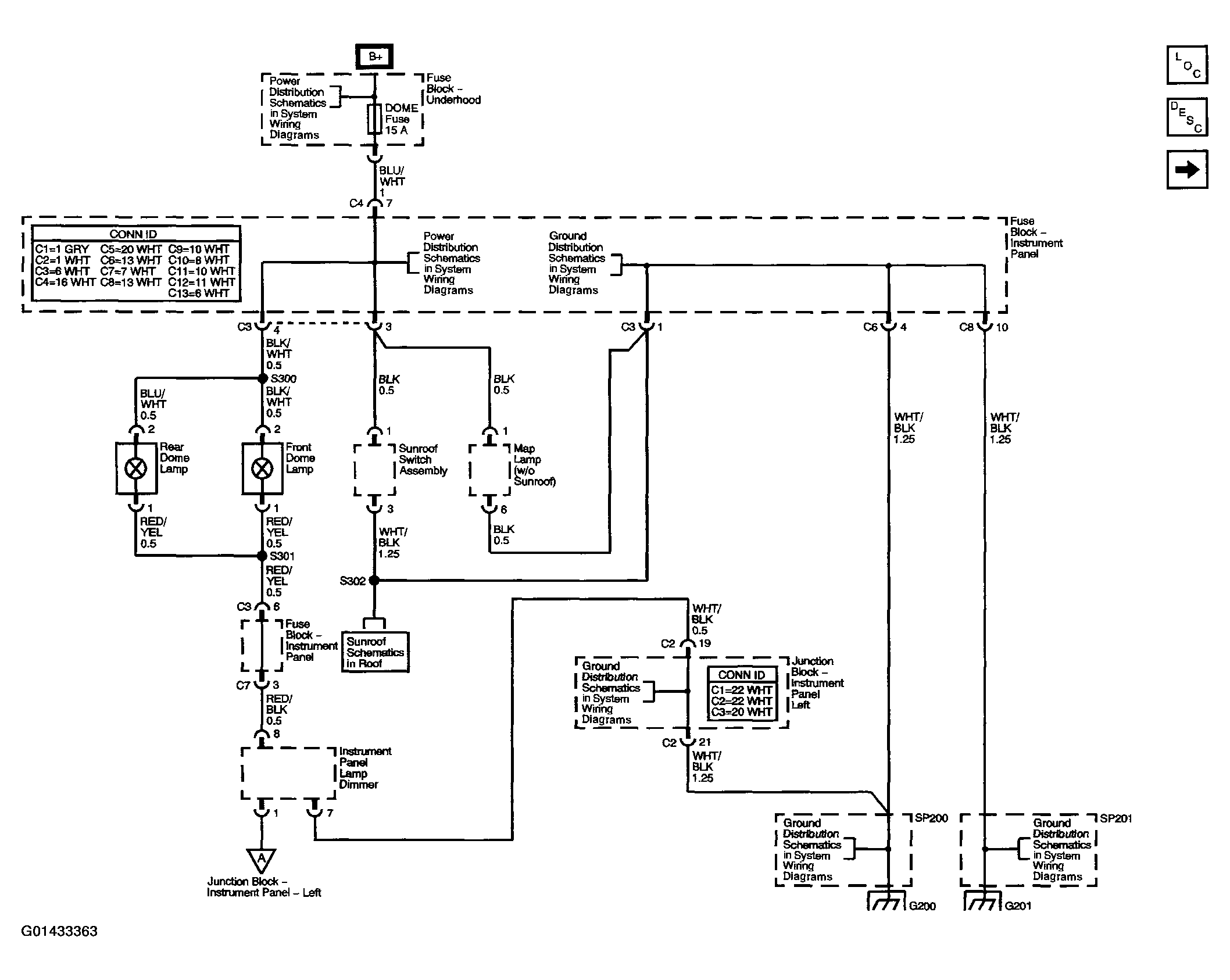

Fig 1: Interior Lights Dimming Schematics (Dome/Courtesy Lamps)
G01433363Courtesy of GENERAL MOTORS CORP.
