Exterior Lights Schematics (Turn Signal/Headlamp Switch, Hazard Switch and Flasher Relay)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

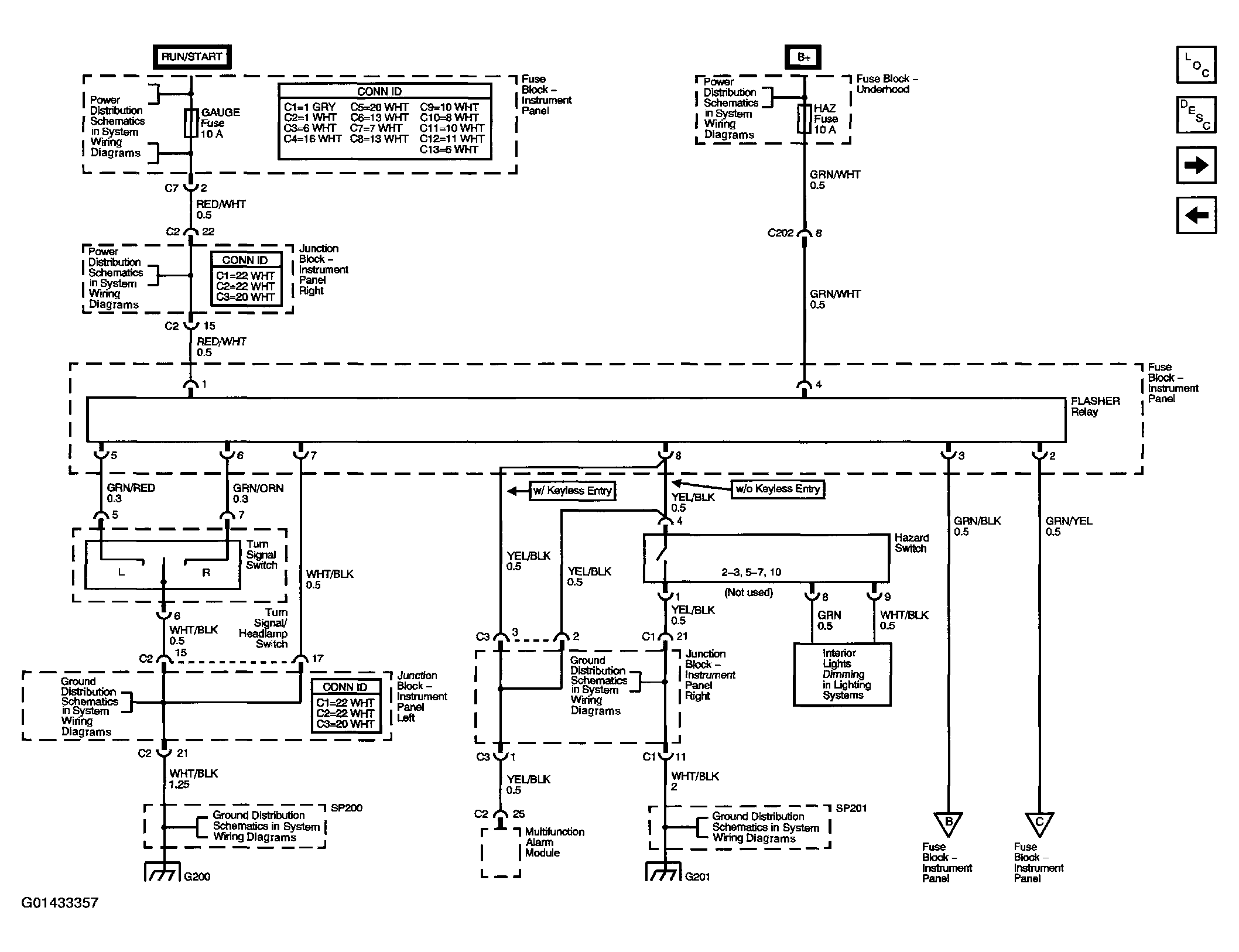

Fig 1: Exterior Lights Schematics (Turn Signal/Headlamp Switch, Hazard Switch & Flasher Relay)
G01433357Courtesy of GENERAL MOTORS CORP.
