Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

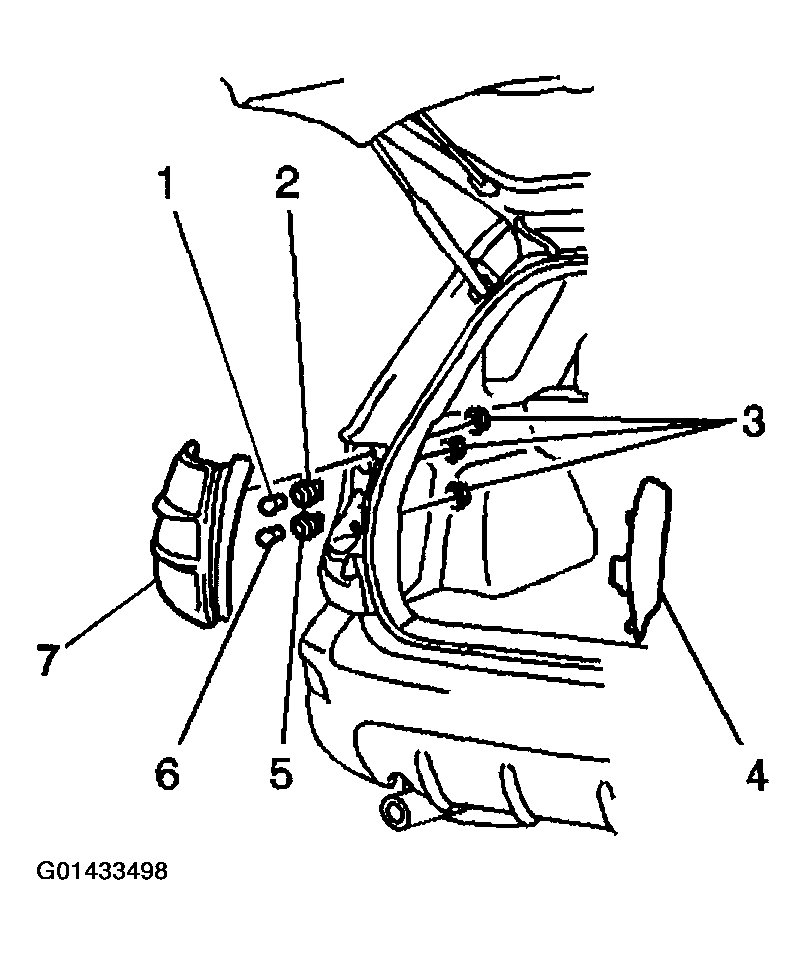

- Install the turn signal lamp bulb (6) to the lamp socket (5).
- Install the turn signal lamp socket (5) to the tail lamp (7).
Courtesy of GENERAL MOTORS CORP.
- Install the rear compartment trim panel (4) to the vehicle.
- Close the rear compartment lid.
