Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Remove the rear compartment trim panel (4).
  3. Remove the tail lamp socket (2) from the tail lamp (7).
  4. Remove the tail lamp bulb (1) from the lamp socket (2).

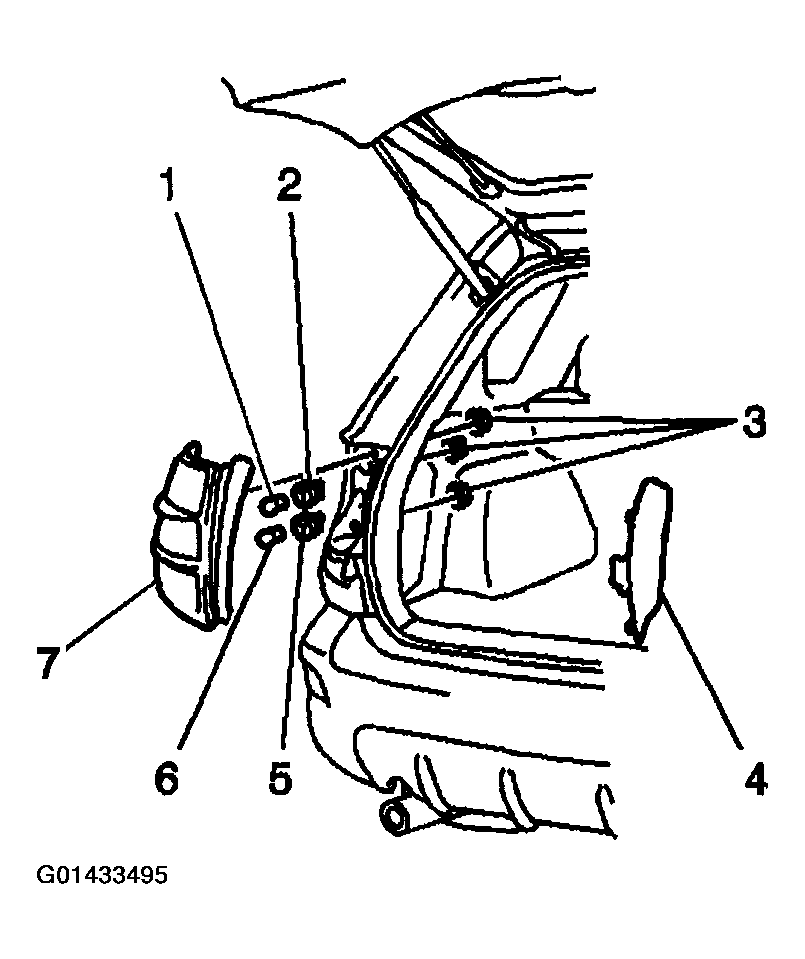

    Fig 1: Removing Tail Lamp Bulb
    G01433495Courtesy of GENERAL MOTORS CORP.
