Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open liftgate.
  2. Remove trim panel service hole cover. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  3. Disconnect the license lamp electrical connector.
  4. Remove the license plate lamp bulb, turning counterclockwise.
  5. Squeeze the tabs on each side of the license plate lamp (1).
  6. Remove the license plate lamp (1) from the liftgate (2).

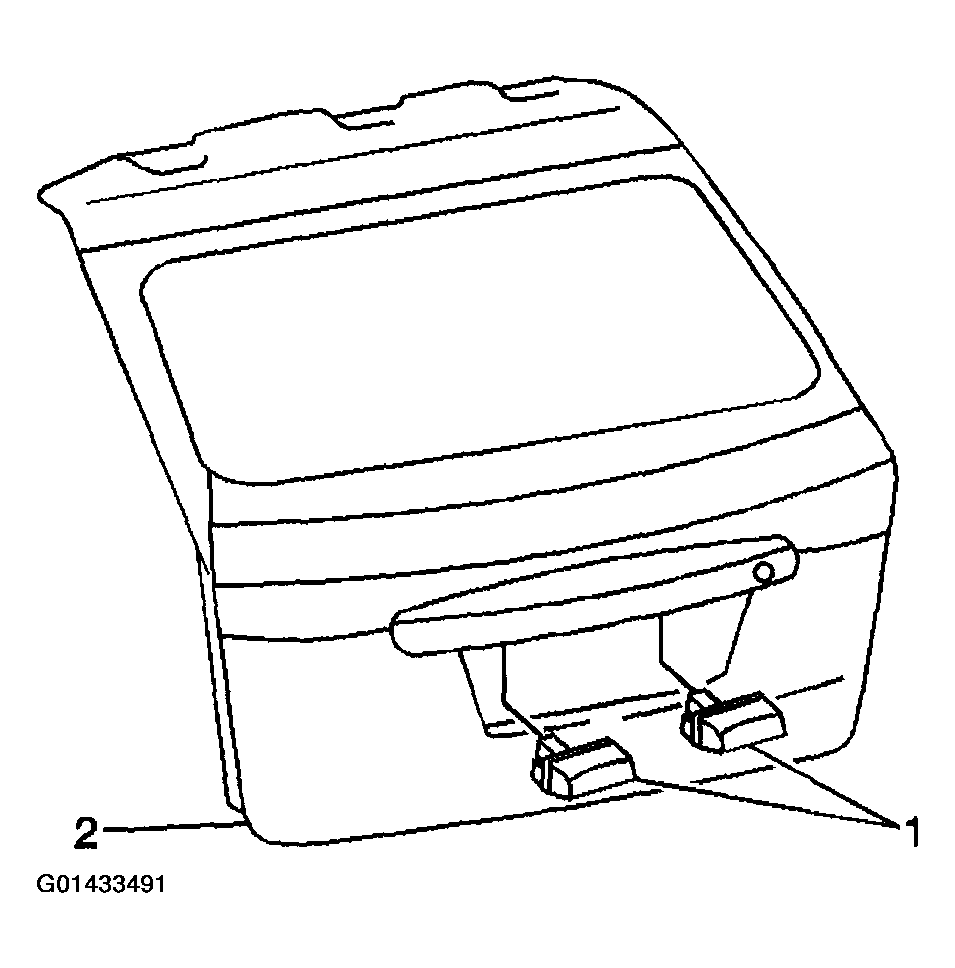

    Fig 1: Removing License Lamp
    G01433491Courtesy of GENERAL MOTORS CORP.
