Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY LEFT .
  2. Disconnect the electrical connectors.
  3. Using a taped flat bladed tool, gently pry and release the clips around the dimmer switch (3).

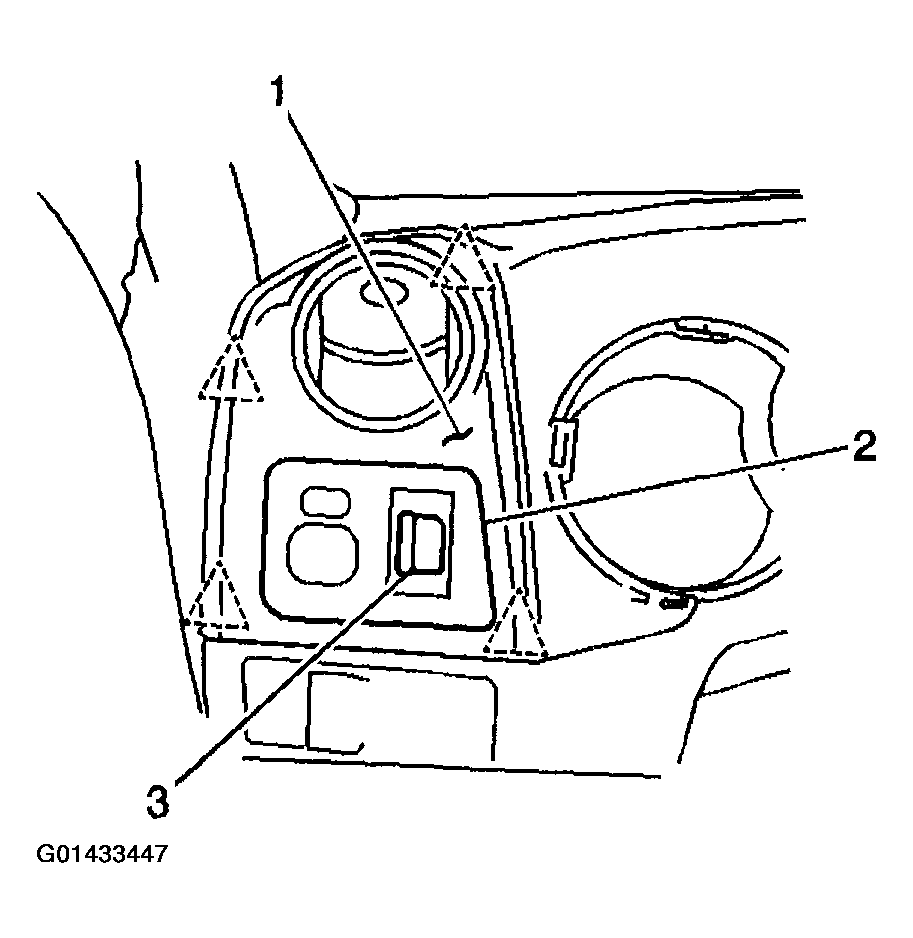

    Fig 1: Removing Instrument Panel (I/P) Dimmer Switch
    G01433447Courtesy of GENERAL MOTORS CORP.
