Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION .
  1. Open the hood.
  2. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .

    Remove the 3 bolts which secure the composite headlamp.

    Fig 1: Removing Headlamp Bolts
    G01433463Courtesy of GENERAL MOTORS CORP.
  3. Pull the composite headlamp (3) forward.
  4. Disconnect the headlamp bulb electrical connector (2).
  5. Remove the composite headlamp (3) from the vehicle, if necessary.
  6. Remove the headlamp bulb rubber insulator (1), if necessary.

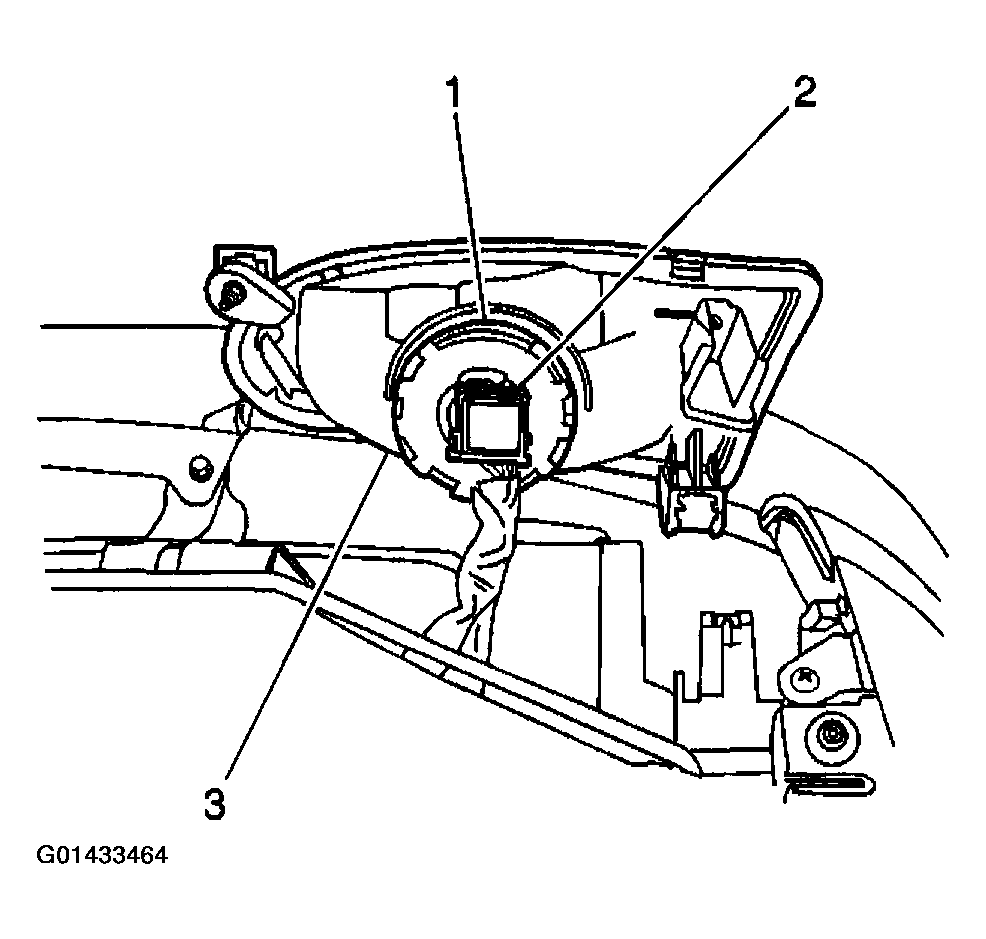

    Fig 2: Pulling Composite Headlamp Forward
    G01433464Courtesy of GENERAL MOTORS CORP.
  7. Open the headlamp bulb retainer (1), if necessary.
  8. Remove the headlamp bulb (2) from the composite headlamp (3), if necessary.
  9. Remove the sidemarker bulb electrical connector.
  10. Remove the sidemarker bulb, if necessary.

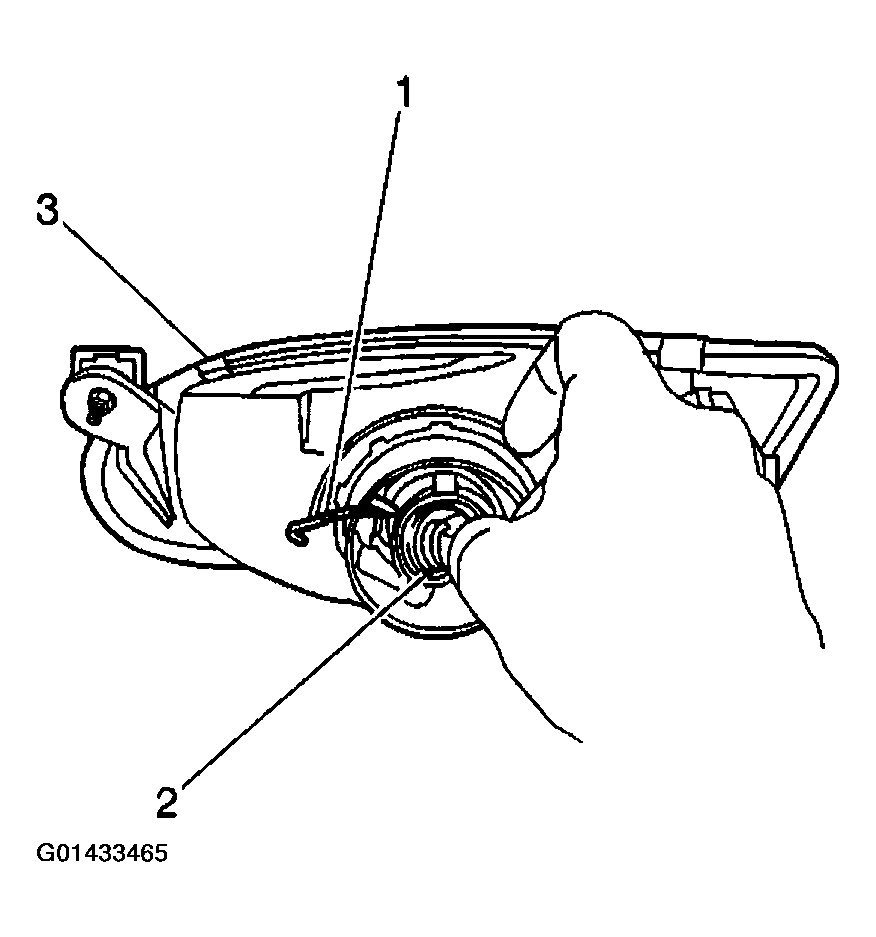

    Fig 3: Removing Headlamp Bulb From Composite Headlamp
    G01433465Courtesy of GENERAL MOTORS CORP.
