Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the composite headlamp bulb (2) to the composite headlamp (3), if removed.
  2. Close the headlamp bulb retainer (1), if opened.

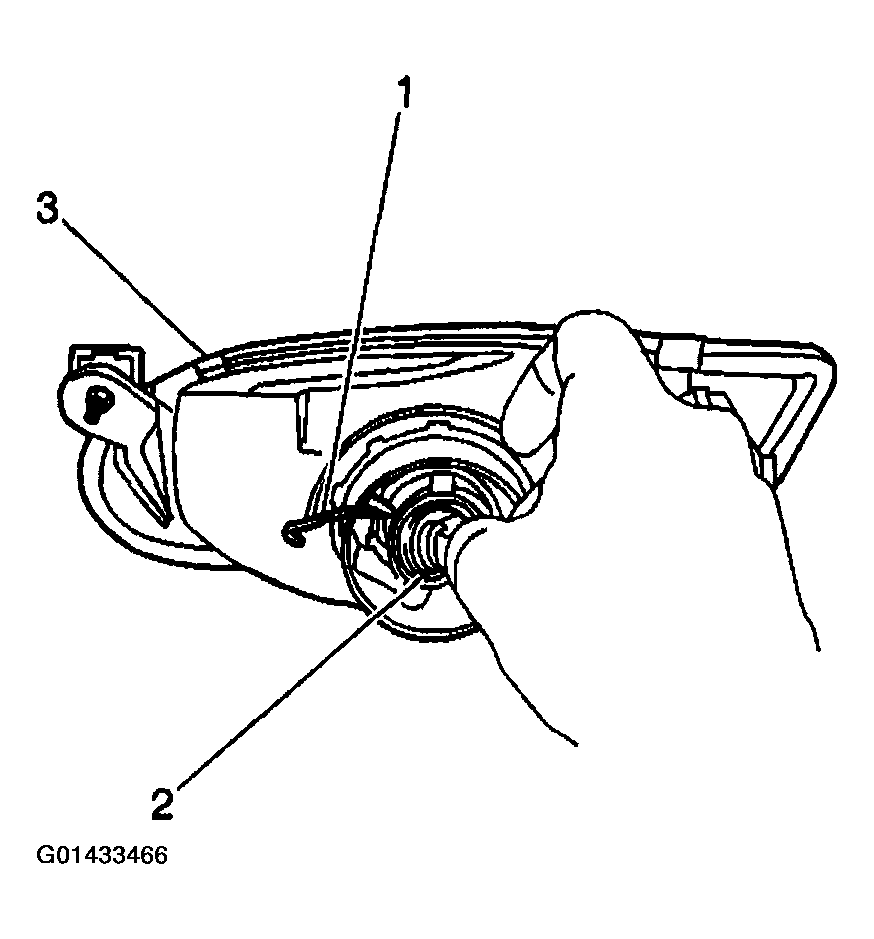

    Fig 1: Installing Composite Headlamp Bulb To Composite Headlamp
    G01433466Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp bulb rubber insulator (1), if removed.
  4. Connect the headlamp bulb electrical connector (2).
  5. Install the sidemarker bulb to the headlamp.
  6. Install the sidemarker bulb electrical connector, if removed.
  7. Install the composite headlamp (3) into its correct position.

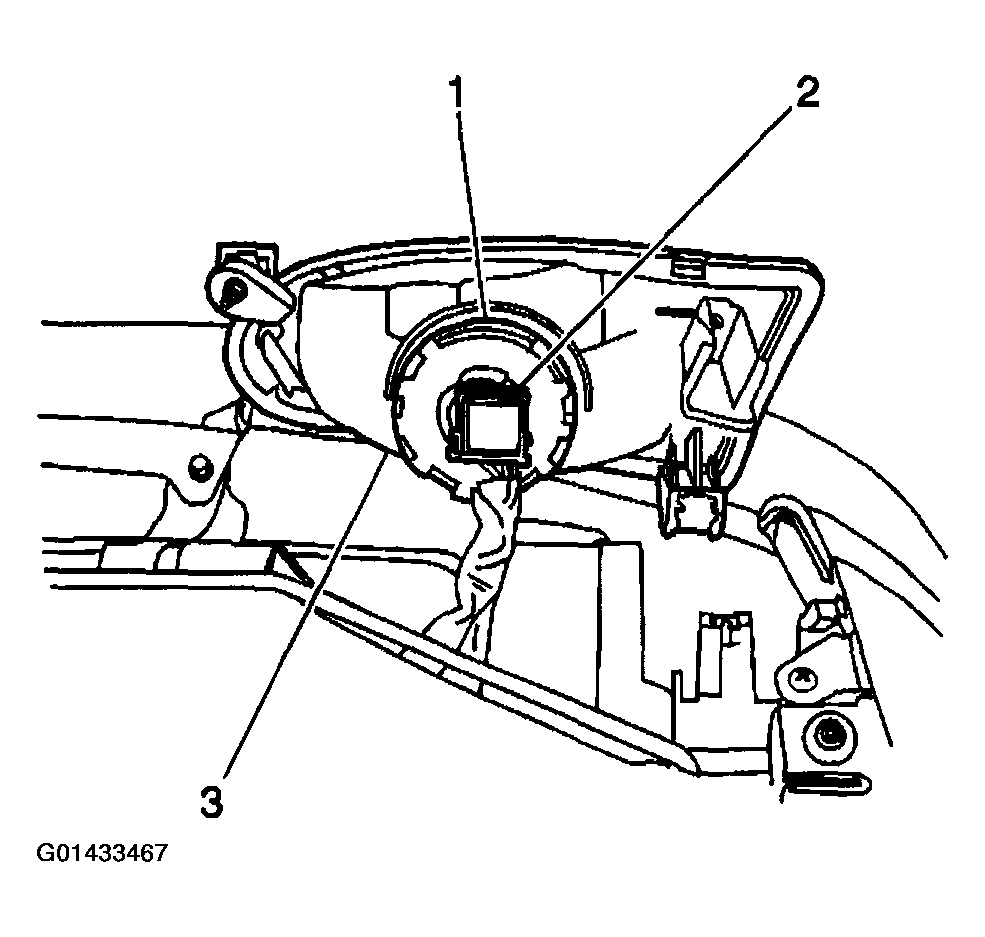

    Fig 2: Installing Composite Headlamp Into Correct Position
    G01433467Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  8. Secure the composite headlamp with the 3 bolts.

    Tighten

    Tighten the headlamp mounting bolts to 10 N.m (89 lb in).

    Fig 3: Installing Headlamp Bolts
    G01433468Courtesy of GENERAL MOTORS CORP.
  9. Install the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .
  10. Aim the headlamps. Refer to HEADLAMP AIMING  .
  11. Close the hood.
