Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP storage compartment tray. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
  2. Remove the turn/hazard signal relay (1) from the Junction Block.

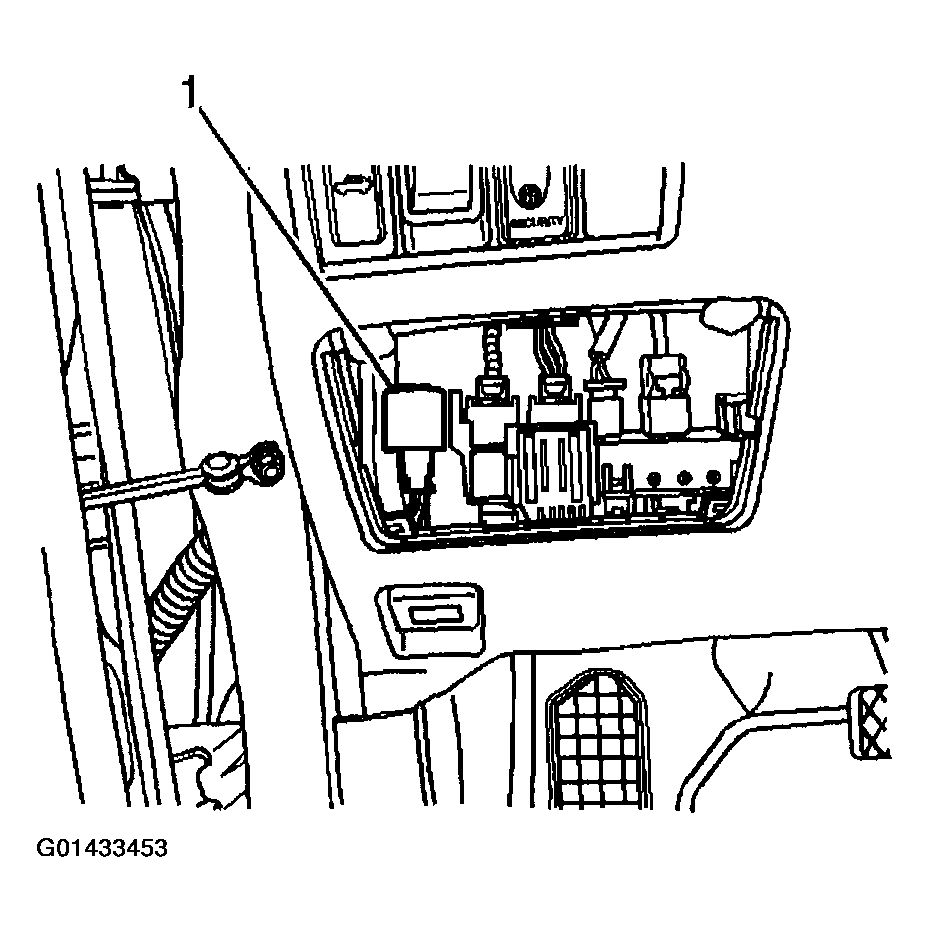

    Fig 1: Removing Hazard & Turn Signal Flasher
    G01433453Courtesy of GENERAL MOTORS CORP.
