Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the turn/hazard signal relay (1) to the Junction Block.
  2. Install the IP storage compartment tray. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .

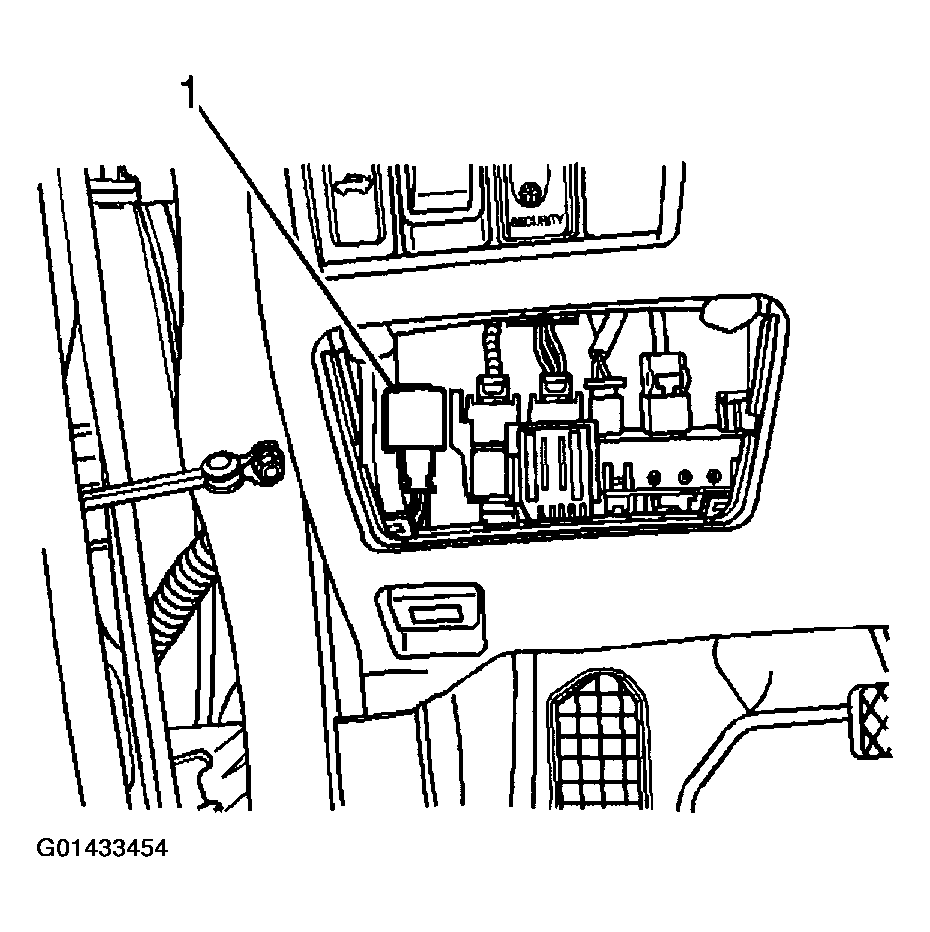

    Fig 1: Installing Hazard & Turn Signal Flasher
    G01433454Courtesy of GENERAL MOTORS CORP.
