Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.
  2. Disconnect the hazard warning switch electrical connector (1).
    Fig 1: Removing Hazard Warning Switch - On Vehicle
    G01433443Courtesy of GENERAL MOTORS CORP.
  3. Press down on the tabs (2) and remove the hazard warning switch (3) from the IP center trim panel.

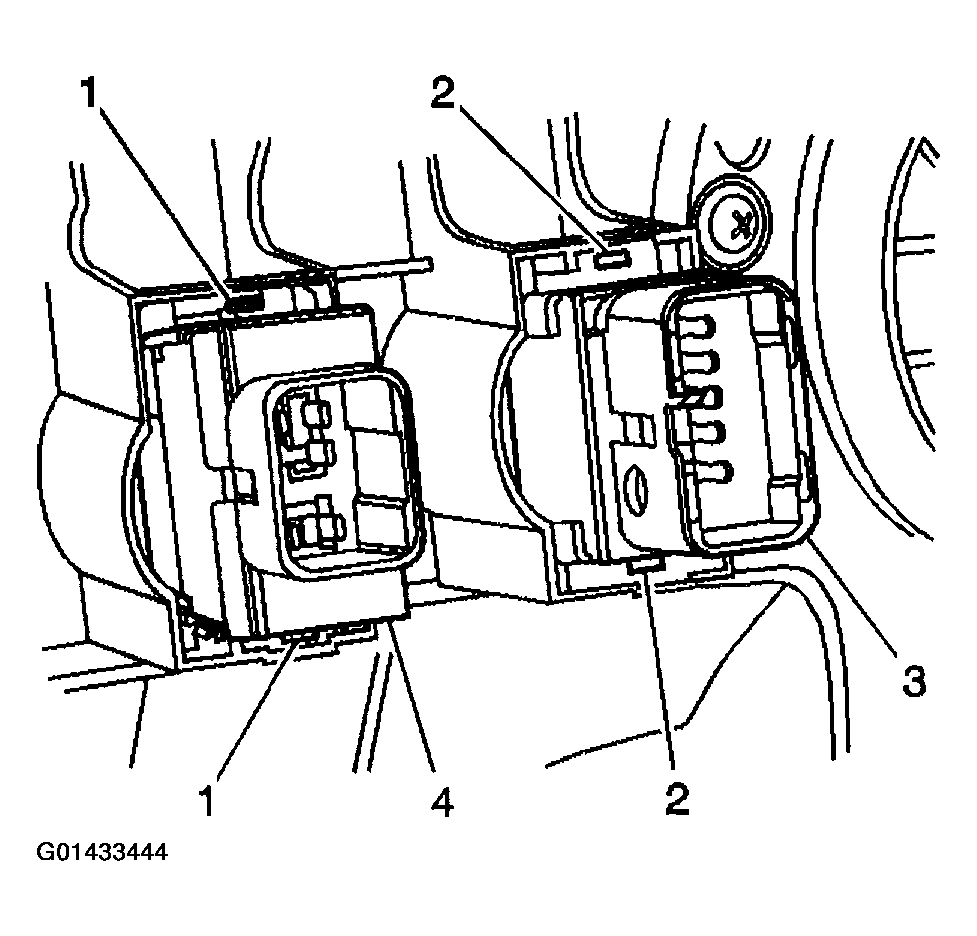

    Fig 2: Identifying Hazard Warning Switch Tabs
    G01433444Courtesy of GENERAL MOTORS CORP.
