Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hazard warning switch (3) to the IP center trim panel.

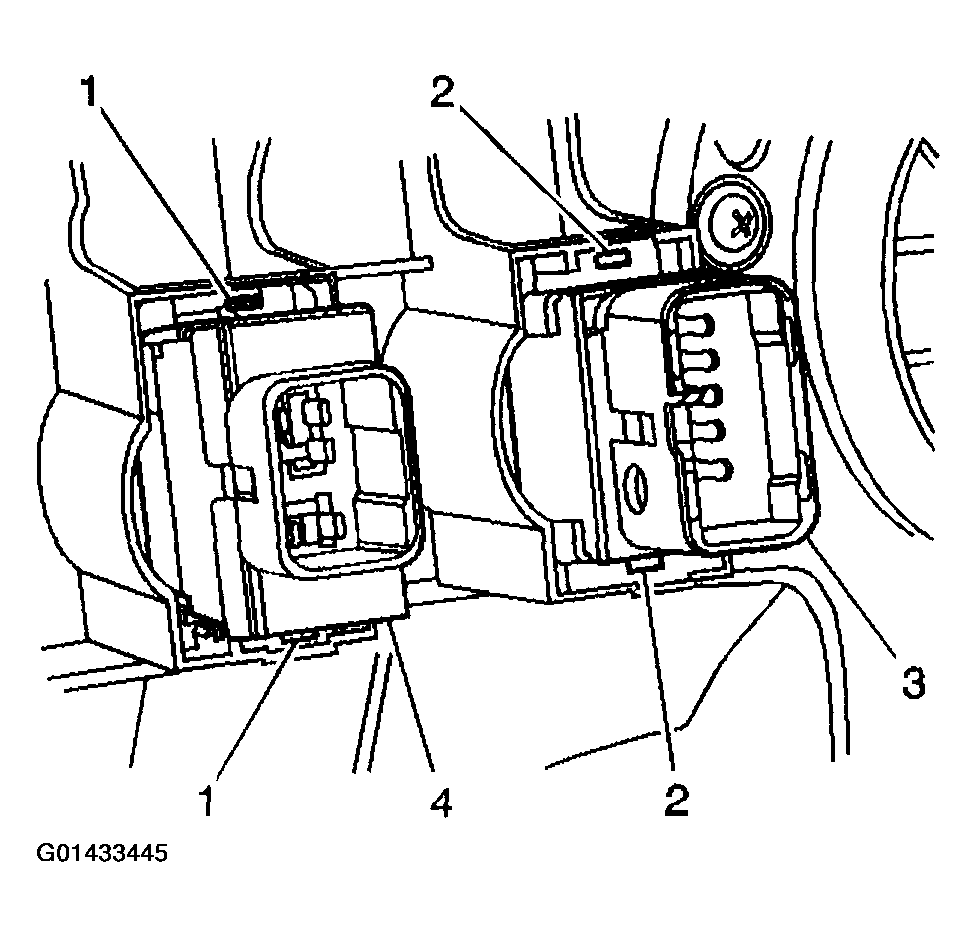

    Fig 1: Installing Hazard Warning Switch - On Vehicle
    G01433445Courtesy of GENERAL MOTORS CORP.
  2. Connect the hazard warning switch electrical connector (1).
  3. Install the IP center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.

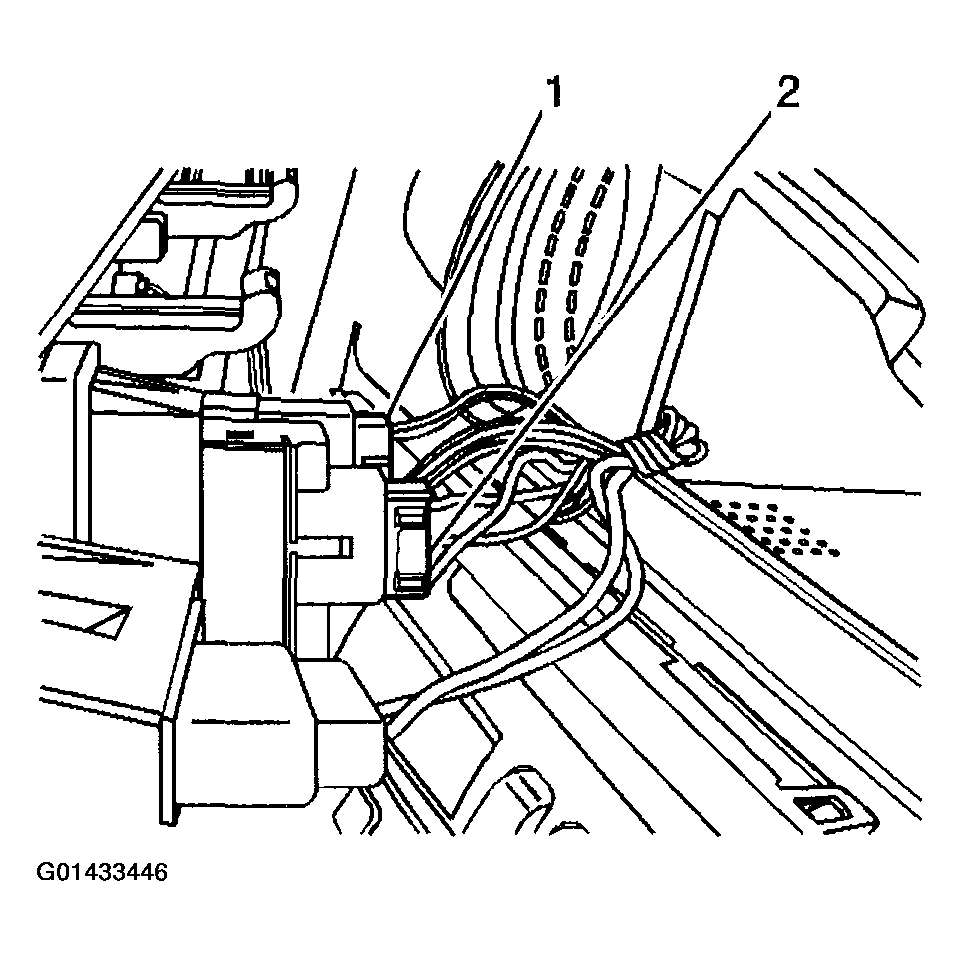

    Fig 2: Identifying Hazard Warning Switch Electrical Connector
    G01433446Courtesy of GENERAL MOTORS CORP.
