Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to HALOGEN BULB CAUTION .

Raise and support the vehicle. Refer to JACKING AND LIFTING - AWD in General Information.

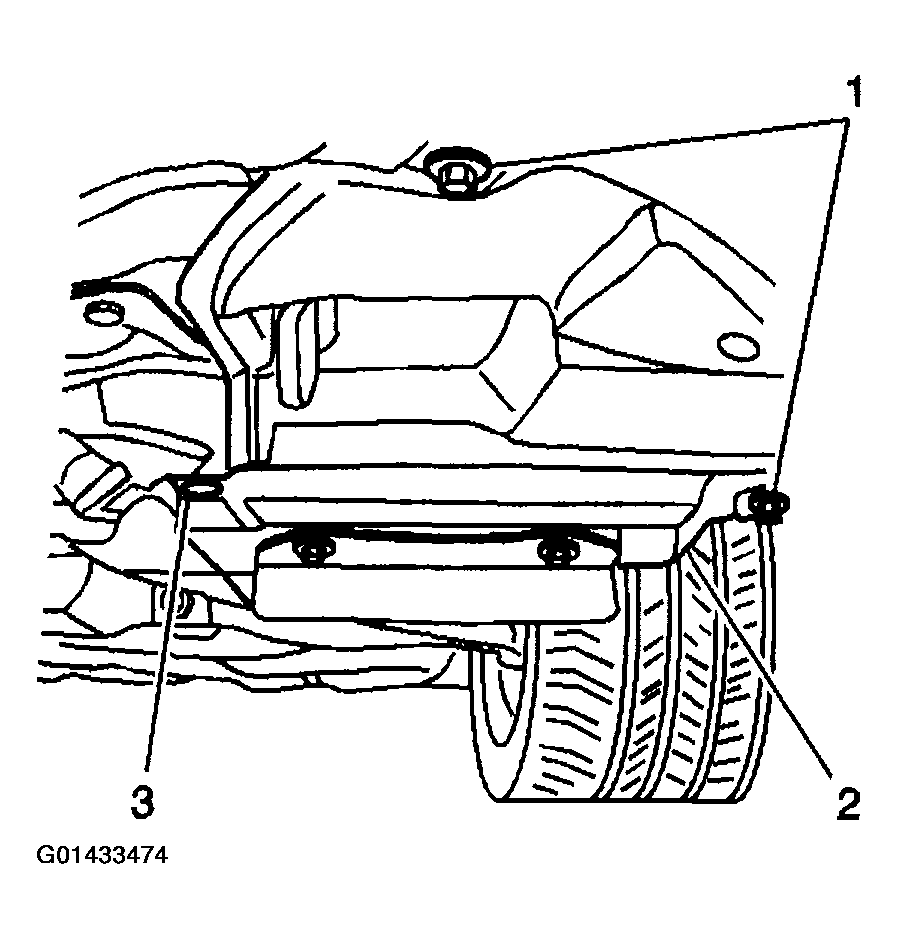

Remove the two screws (1) and push retainer (3) from the lower splash shield (2).
Disconnect the electrical connector from the fog lamp.

Fig 1: Identifying Fog Lamp Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

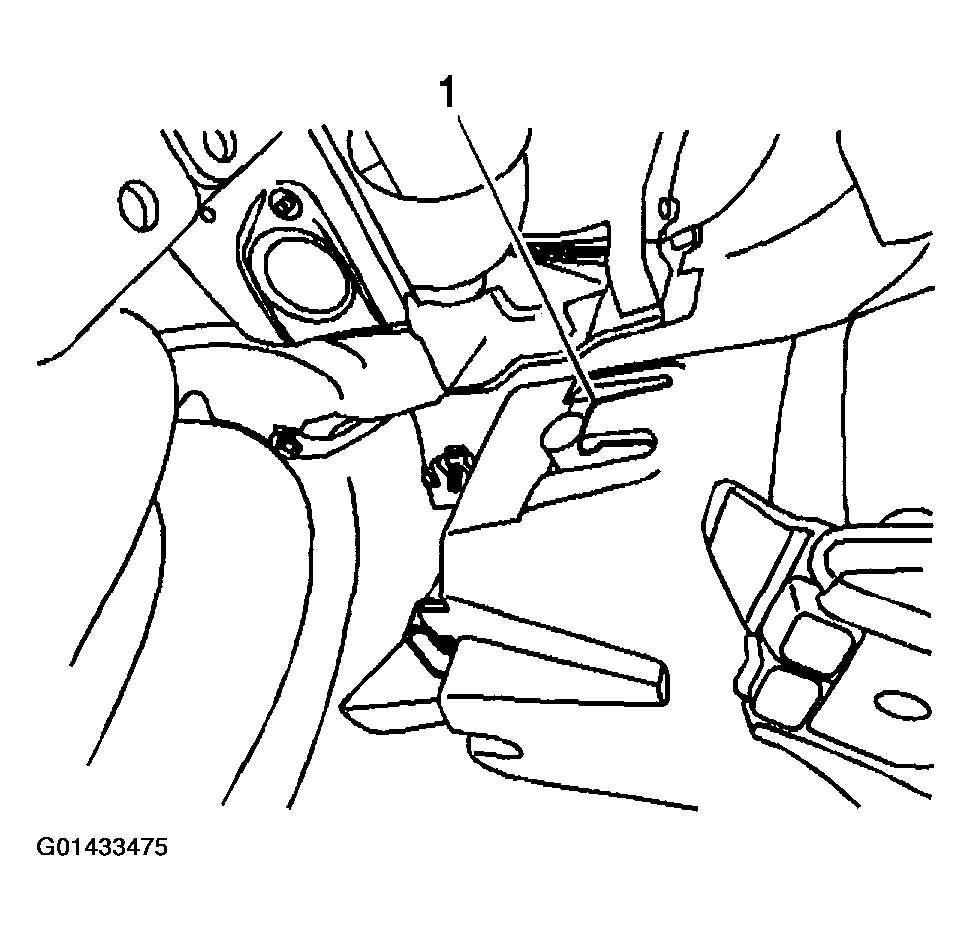

Pry out on tab (1) with a flat bladed tool and remove fog lamp.

Fig 2: Identifying Tab Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp bulb from the fog lamp, turning counterclockwise, if required.

Fig 3: Removing Fog Lamp Bulb From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
