Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door jamb switch mounting screw from the door jamb.
  2. Disconnect the rear door jamb switch electrical connector.
  3. Remove the door jamb switch (2) from the vehicle.

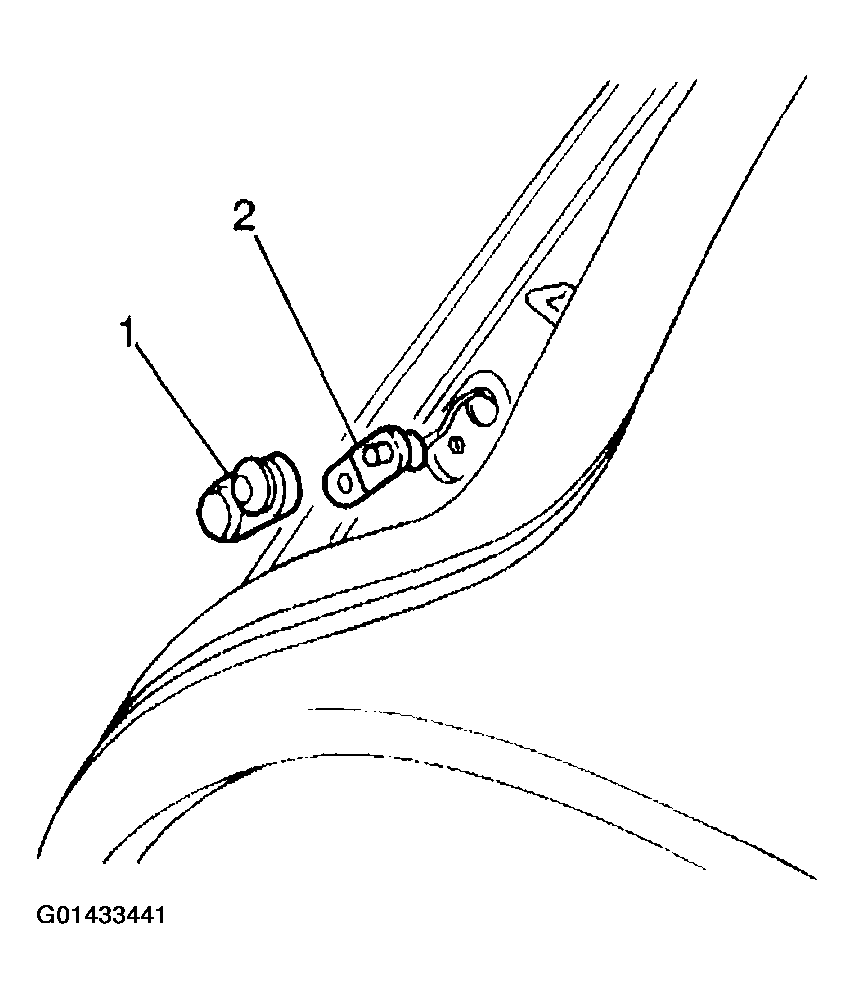

    Fig 1: Removing Door Jamb Switch - Rear
    G01433441Courtesy of GENERAL MOTORS CORP.
