Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the rear door jamb switch electrical connector.
  2. Install the rear door jamb switch (2) to the door jamb. Secure the door jamb switch with the screw.

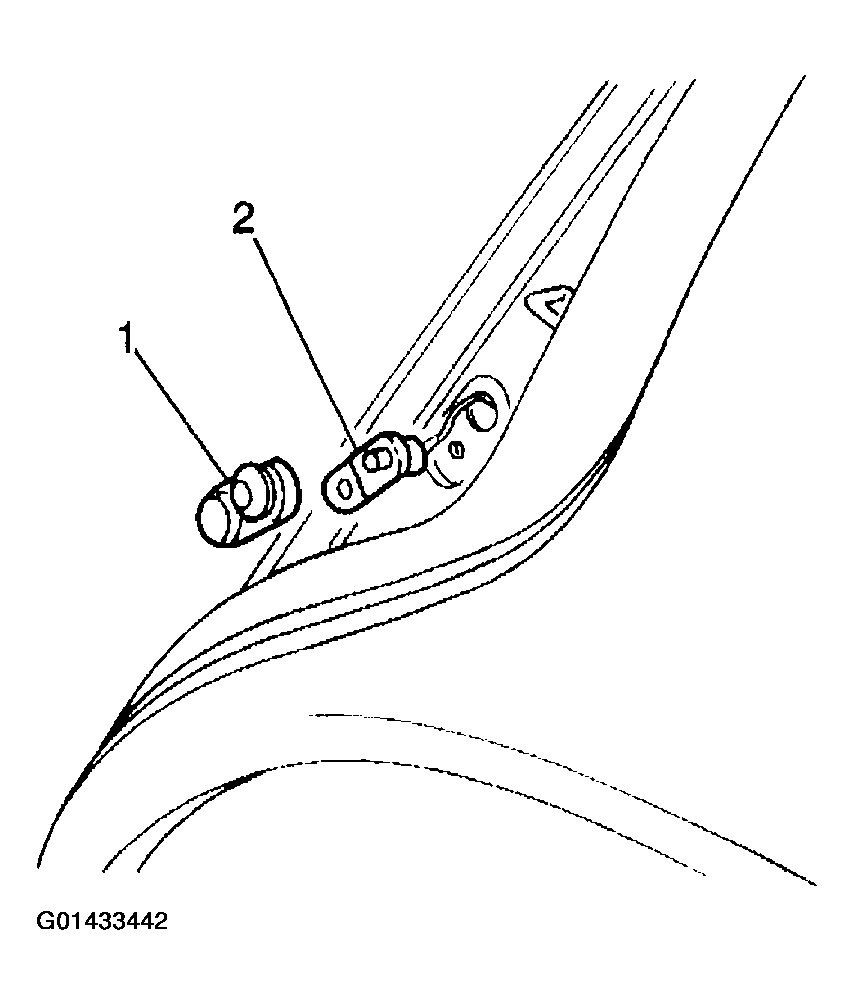

    Fig 1: Installing Procedure Door Jamb Switch - Rear
    G01433442Courtesy of GENERAL MOTORS CORP.
