Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the one mounting bolt and pull the switch (1) from the door jamb.
  2. Disconnect the front door jamb switch electrical connector.
  3. Remove the door jamb switch (1) from the vehicle.

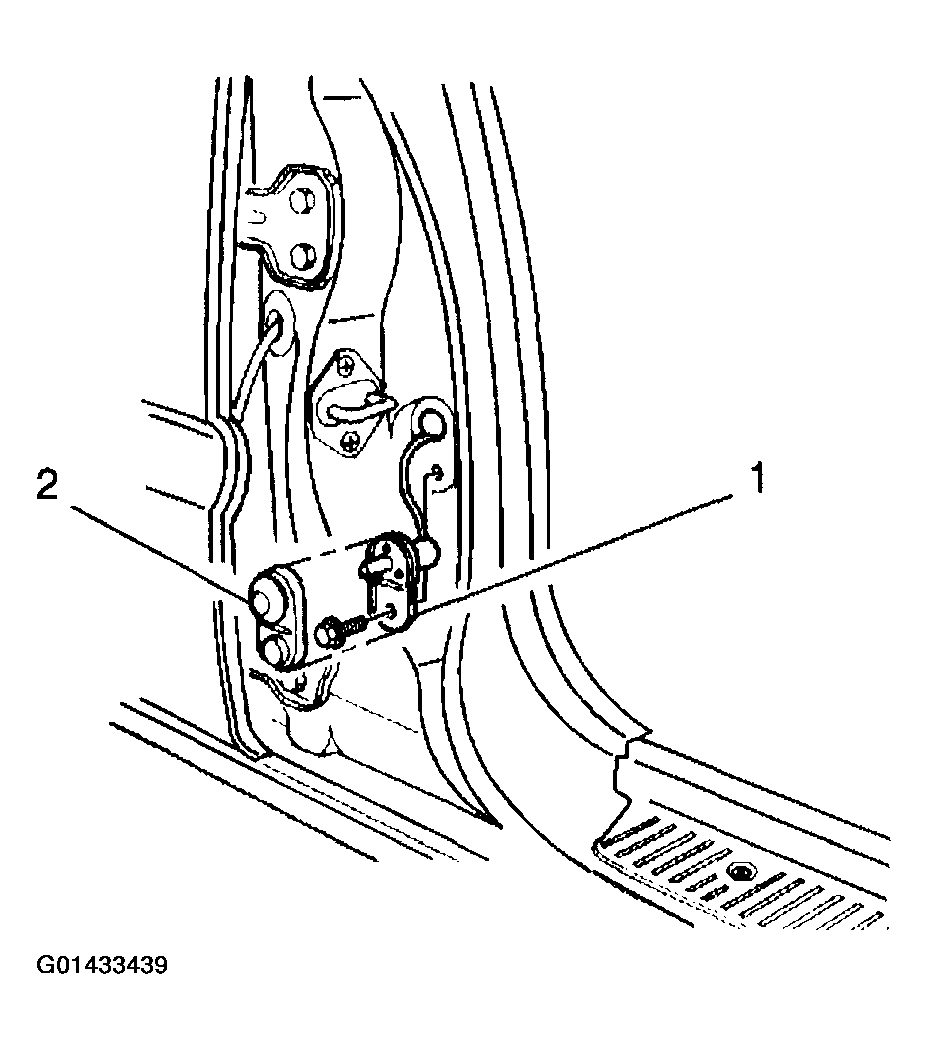

    Fig 1: Removing Door Jamb Switch - Front
    G01433439Courtesy of GENERAL MOTORS CORP.
