Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the front door jamb switch electrical connector.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the switch (1) to the door jamb. Secure the switch with the mounting bolt.

    Tighten

    Tighten the front door jamb switch mounting bolt to 10 N.m (89 lb in).

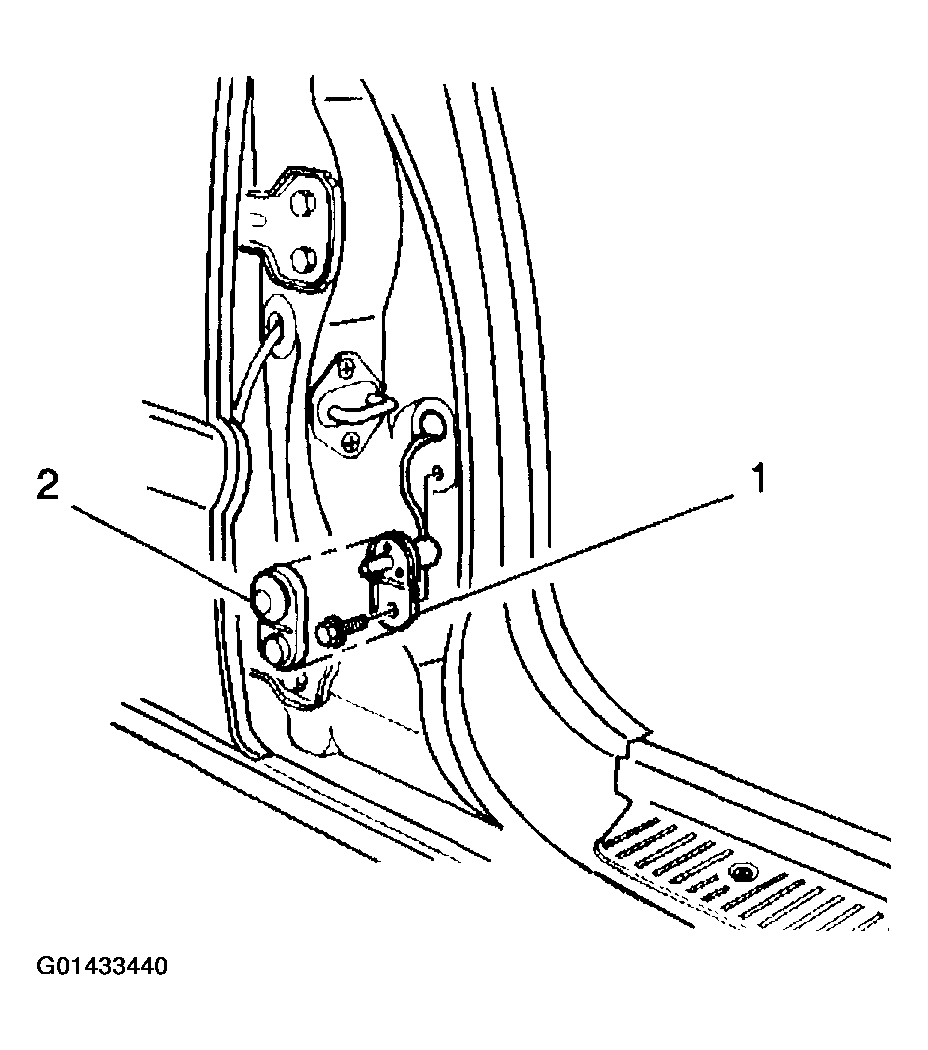

    Fig 1: Installing Door Jamb Switch - Front
    G01433440Courtesy of GENERAL MOTORS CORP.
