Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dome lamp lens by inserting a flat-bladed tool to the back edge and pushing downward to release the tab.
  2. Release the 2 clips which secure the dome lamp (1).
    Fig 1: Removing Dome Lamp Lens By Inserting Flat-Bladed Tool
    G01433459Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the dome lamp electrical connector (1).
  4. Remove the dome lamp (2) from the vehicle.
  5. Remove the bulb (3) from the dome lamp, if necessary.

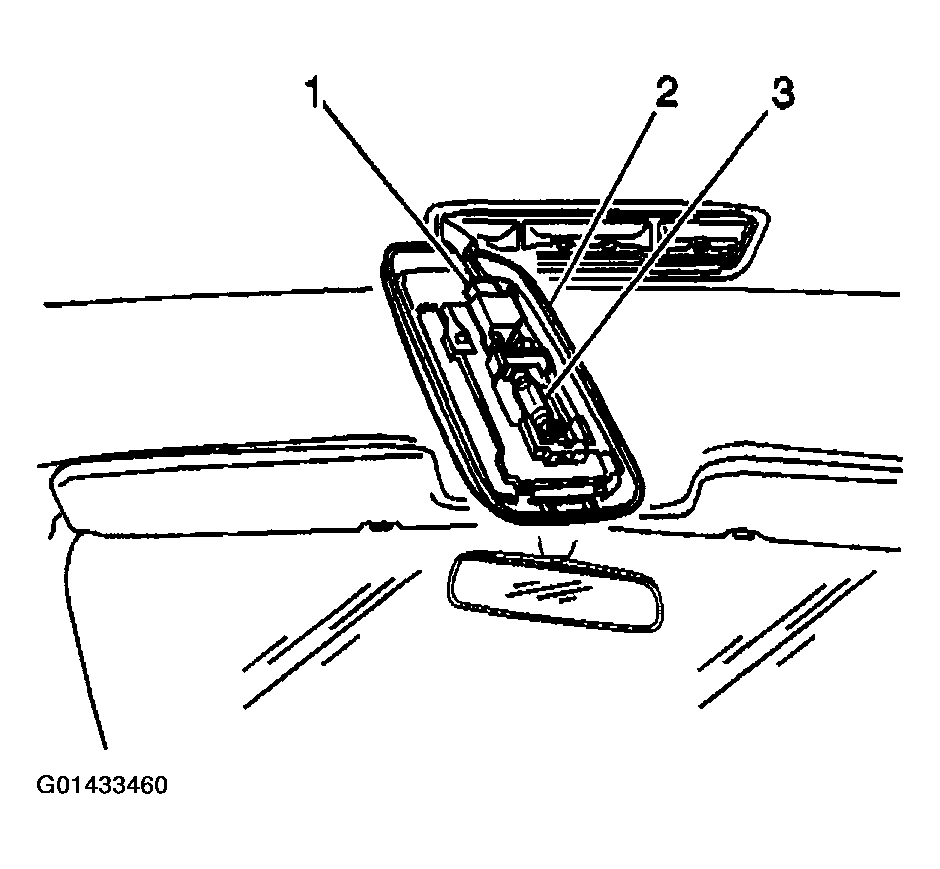

    Fig 2: Removing Dome Lamp From Vehicle
    G01433460Courtesy of GENERAL MOTORS CORP.
