Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, release the 2 retaining tabs that secure the ambient light sensor (1).
  2. Disconnect the ambient light sensor electrical connector.
  3. Remove the ambient light sensor (1) from the I/P assembly (2).

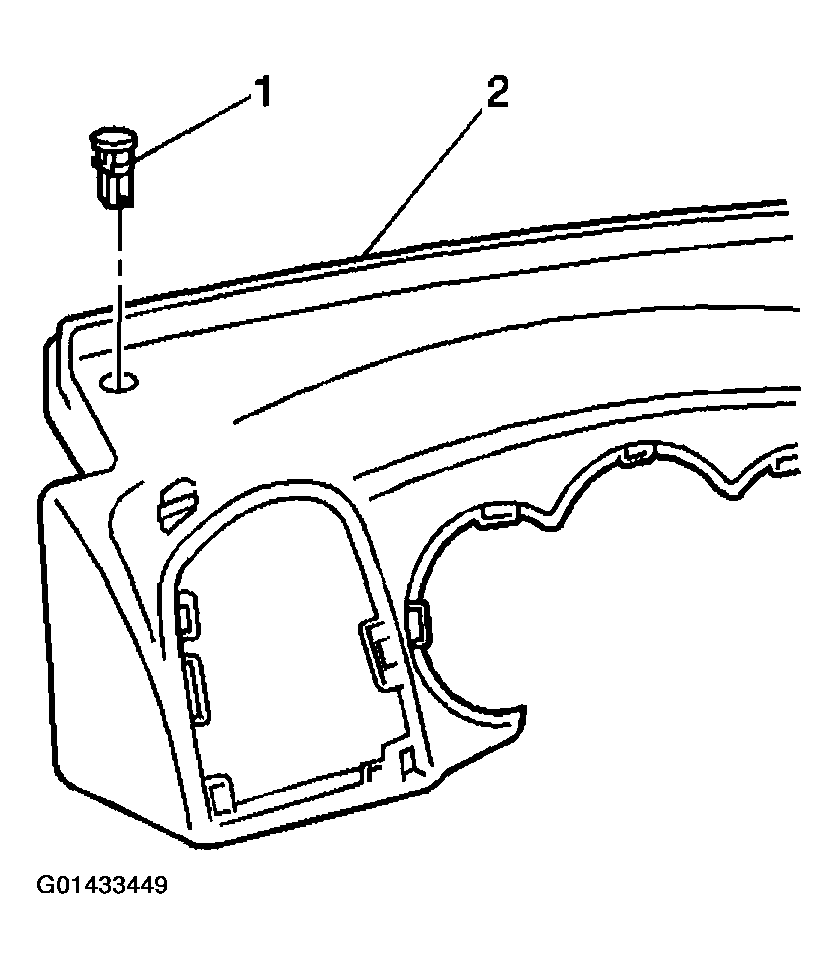

    Fig 1: Removing Daytime Running Lamps (DRL) Ambient Light Sensor
    G01433449Courtesy of GENERAL MOTORS CORP.
