Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the ambient light sensor (1).
  2. Install the ambient light sensor (1) to the I/P assembly (2). Ensure that the retaining tabs are fully engaged.

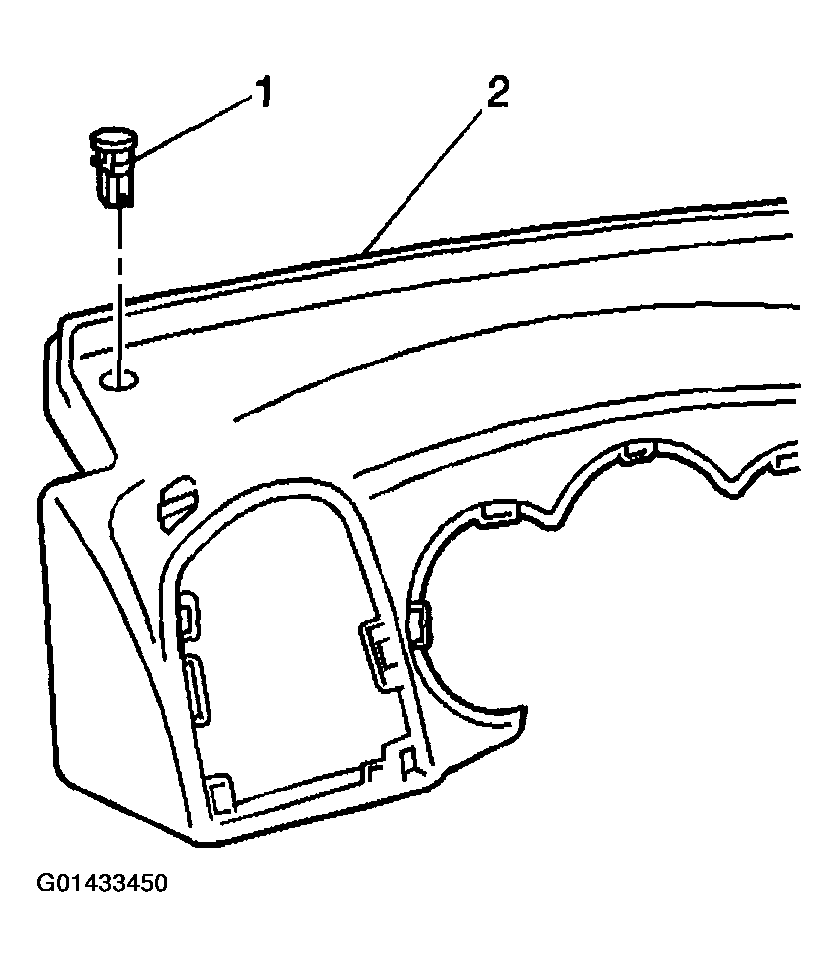

    Fig 1: Installing Daytime Running Lamps (DRL) Ambient Light Sensor
    G01433450Courtesy of GENERAL MOTORS CORP.
