Daytime Running Lamps (DRL) Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

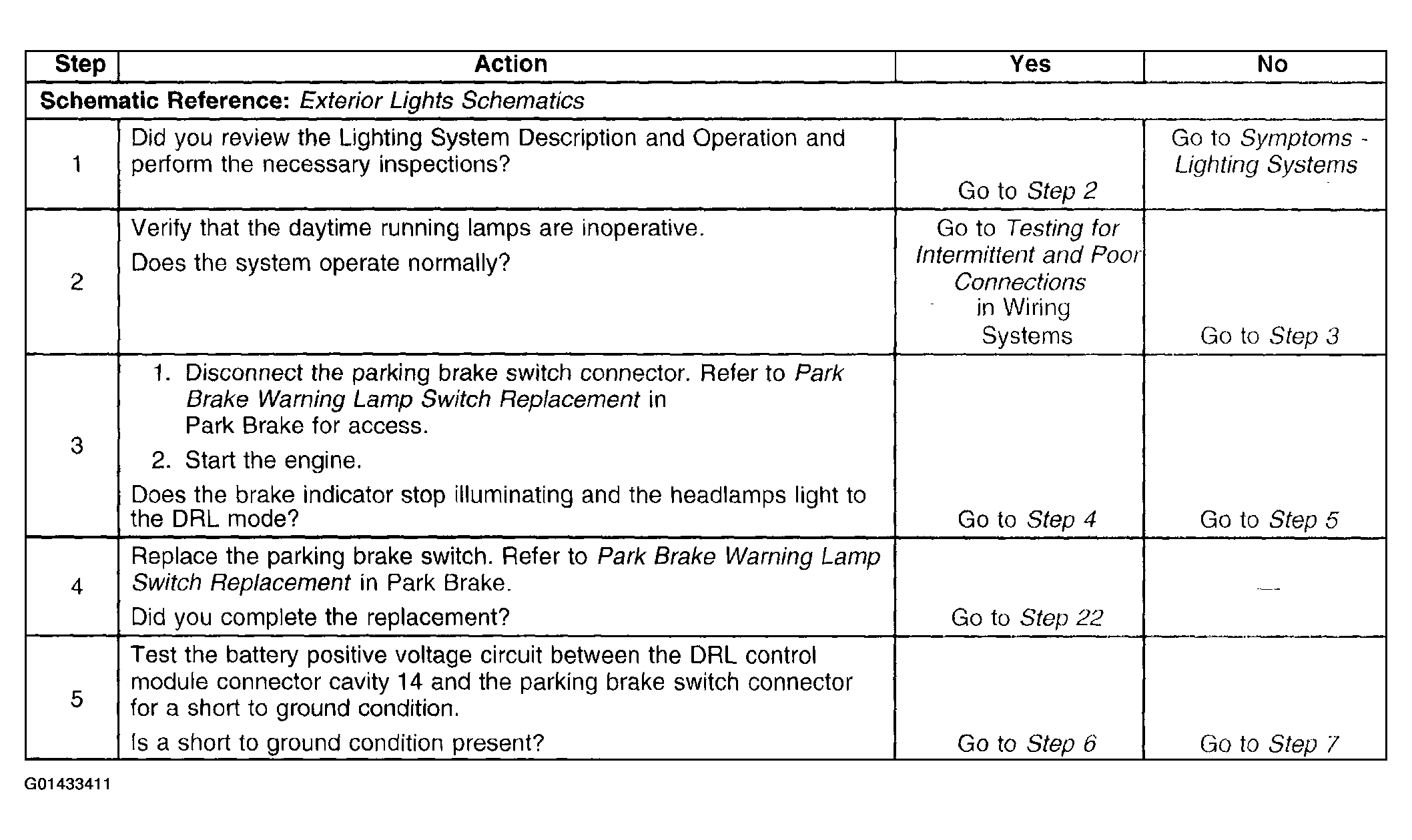

Fig 1: Daytime Running Lamps (DRL) Inoperative Reference Chart (Steps 1 - 5)

Courtesy of GENERAL MOTORS CORP.

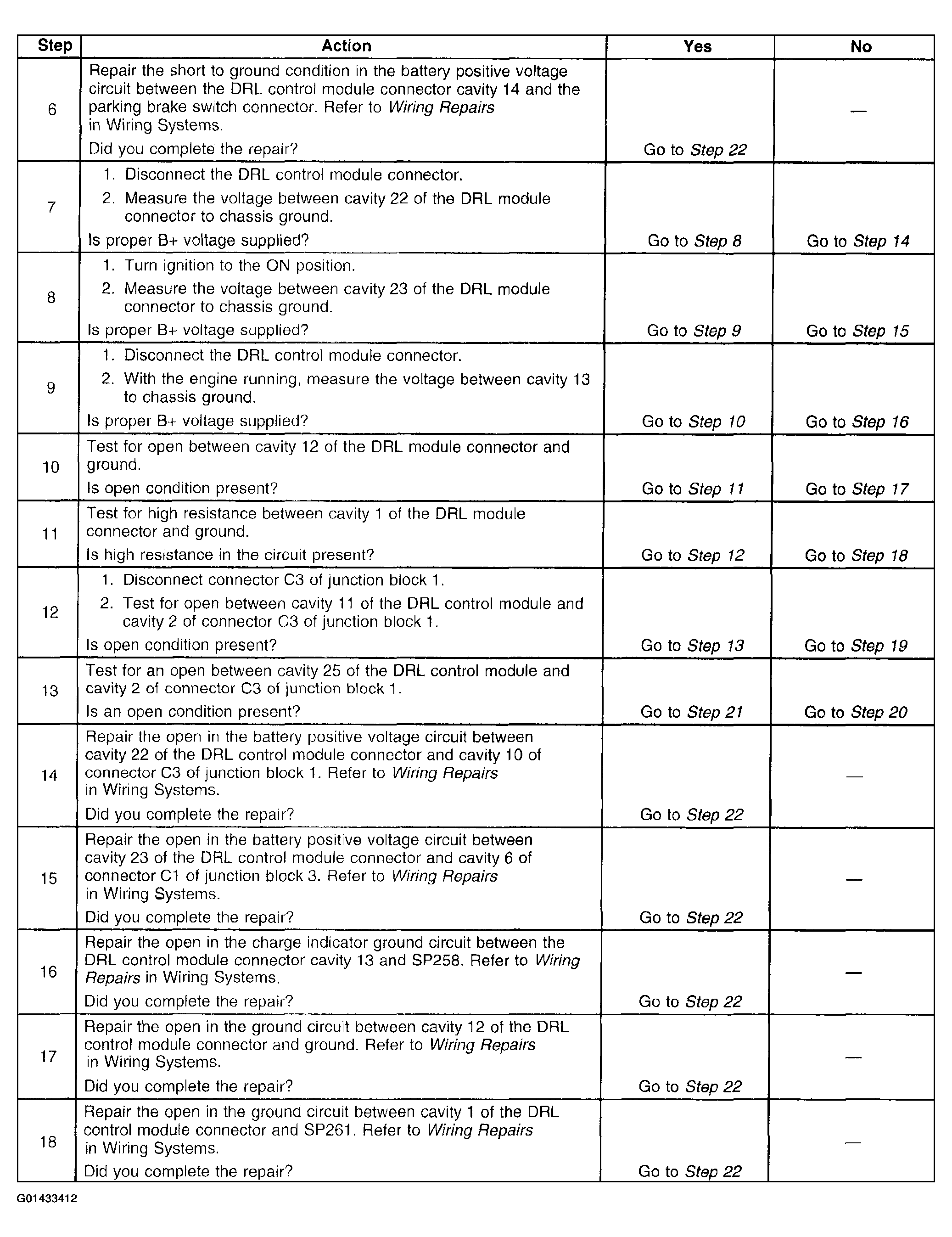

Fig 2: Daytime Running Lamps (DRL) Inoperative Reference Chart (Steps 6 - 18)

Courtesy of GENERAL MOTORS CORP.

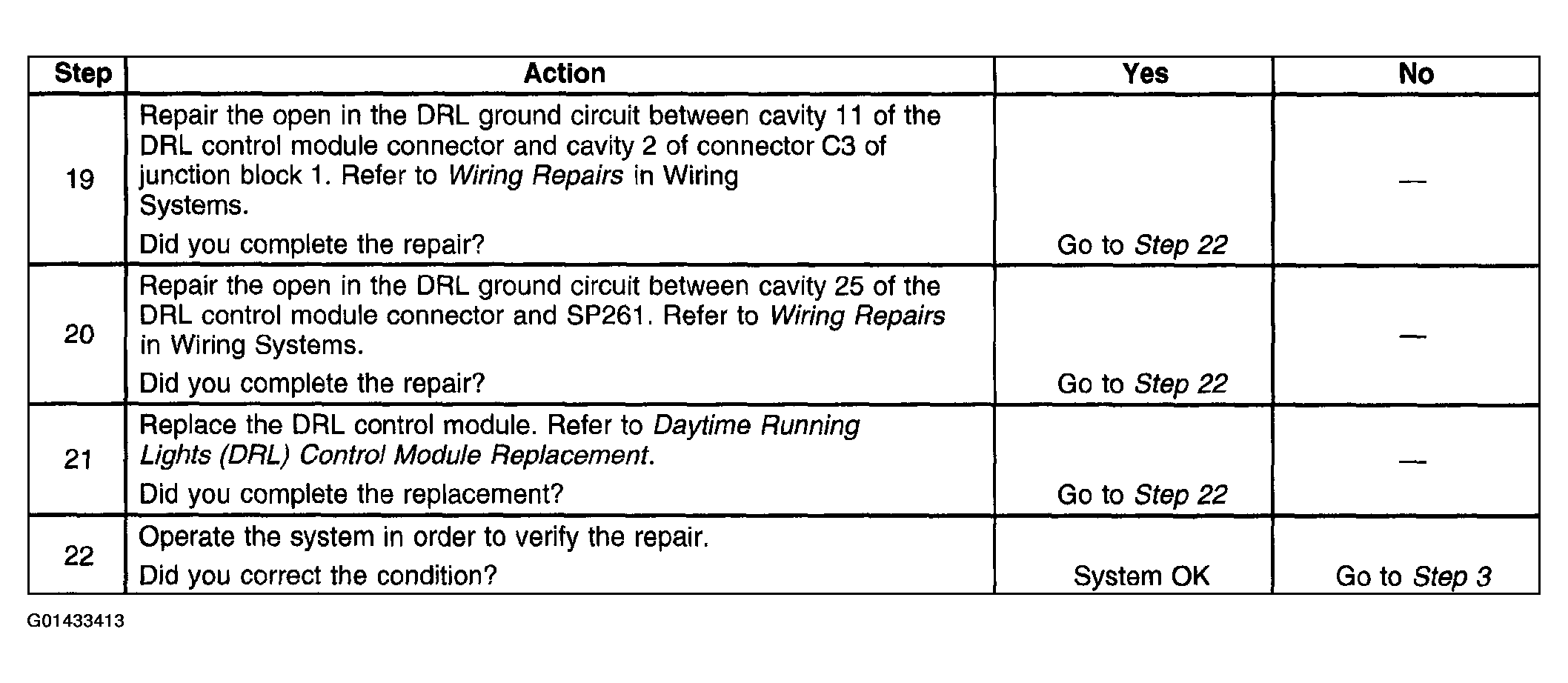

Fig 3: Daytime Running Lamps (DRL) Inoperative Reference Chart (Steps 19 - 22)

Courtesy of GENERAL MOTORS CORP.
