Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Remove the driver side front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  3. Remove the 2 bolts (1).
  4. Fold the floor carpet to the inside.
  5. Disconnect the electrical connector (2).
  6. Remove the accessory AC/DC power control module (3) from the vehicle.

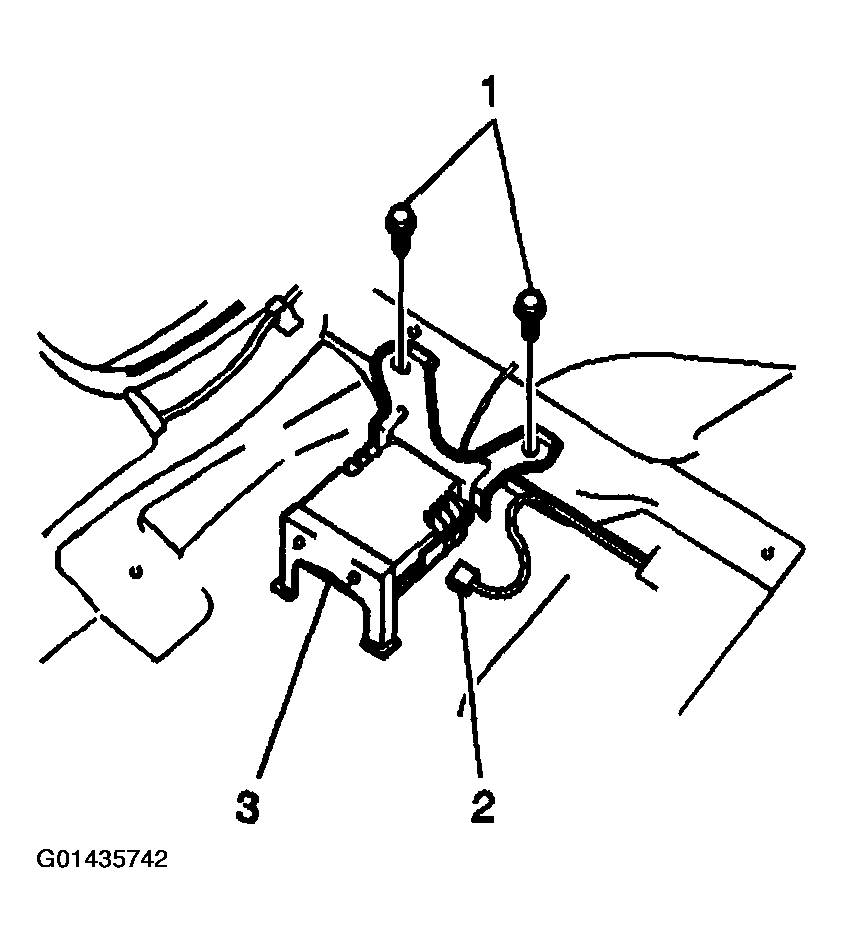

    Fig 1: Removing AC/DC Power Control Module
    G01435742Courtesy of GENERAL MOTORS CORP.
