Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the accessory AC/DC power control module (3) to the vehicle. Secure the module (3) with the 2 bolts (1).

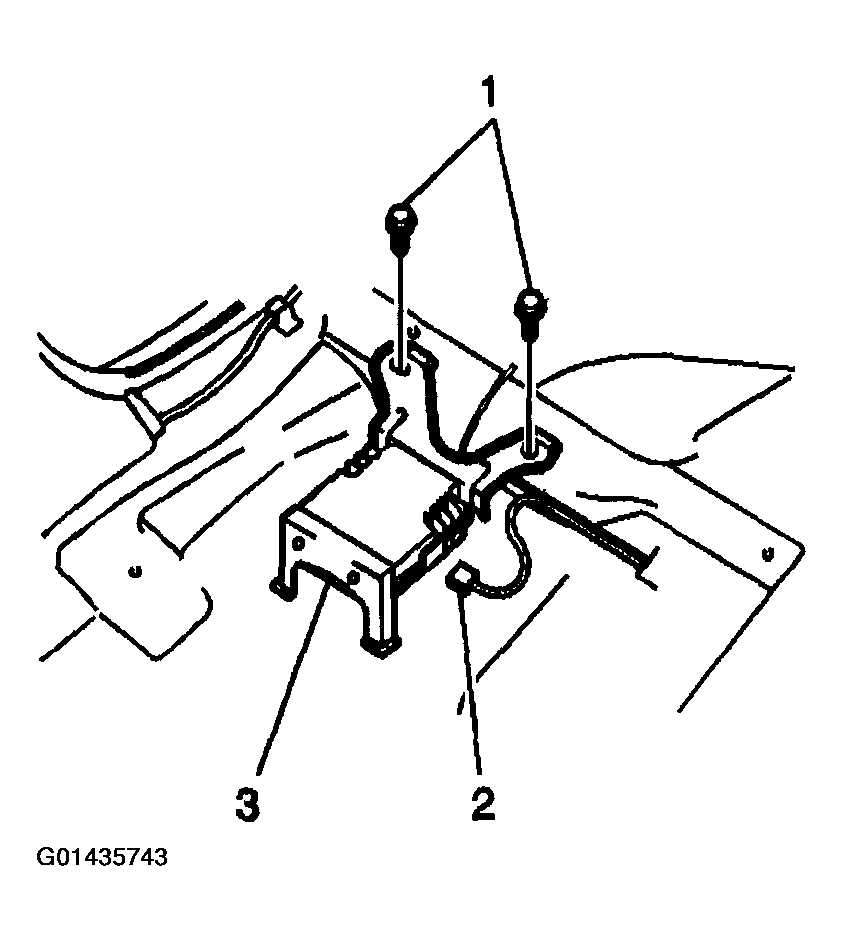

    Fig 1: Installing AC/DC Power Control Module
    G01435743Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the power control module bolts to 7.0 N.m (62 lb in).

  2. Fold the floor carpet to the inside.
  3. Connect the electrical connector (2).
  4. Install the driver side front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  5. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
