Repairing Damaged Wire Insulation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

If the conductive portion of the wire is not damaged, locate the problem and apply tape around the wire. If the damage is more extensive, replace the faulty segment of the wire. Refer to SPLICING COPPER WIRE USING SPLICE CLIPS  and follow the instruction to repair the wire.

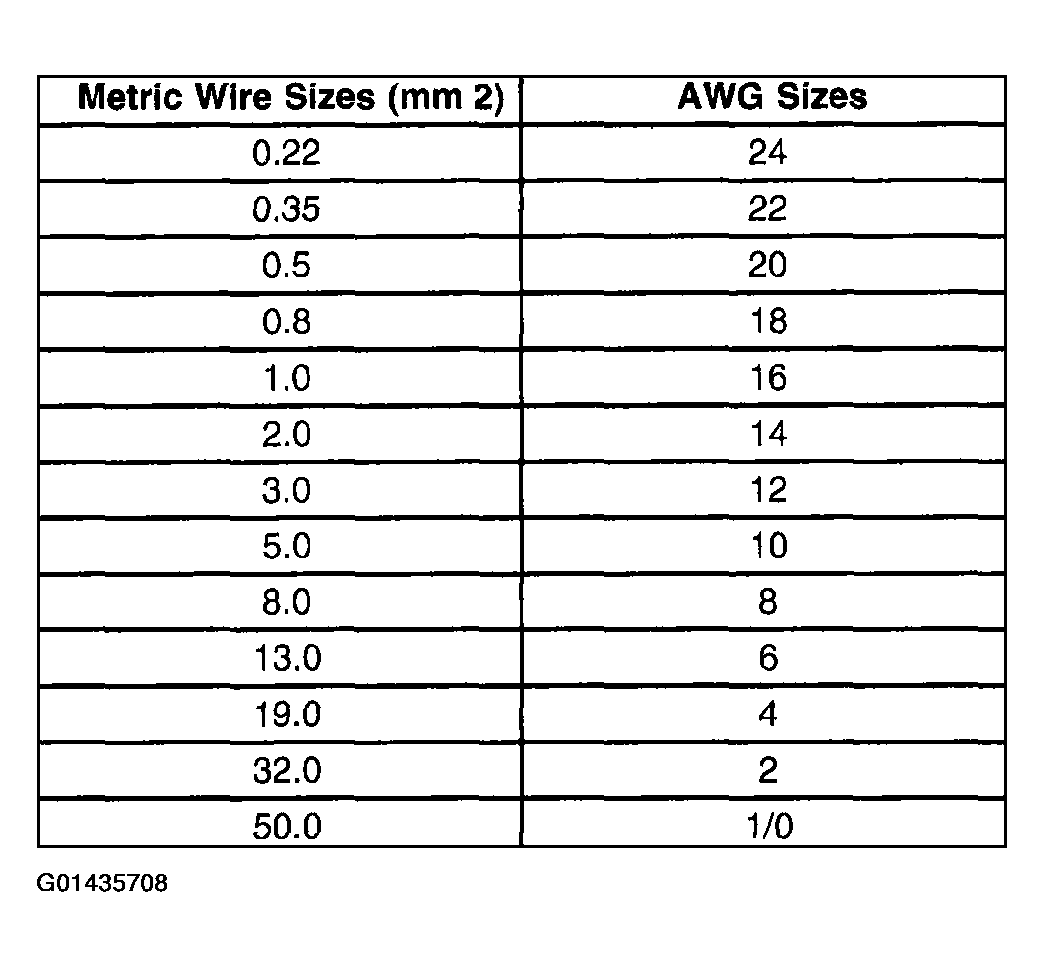

Fig 1: Wire Size Conversion Chart
G01435708Courtesy of GENERAL MOTORS CORP.
