Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the clutch release bearing using a thin coat of wheel bearing grease of GM P/N 1051344 (Canadian P/N 9930337) or the equivalent.
Install the clutch release bearing to the clutch release fork.
Install the clutch release bearing and the clutch release fork assembly onto the transaxle assembly.

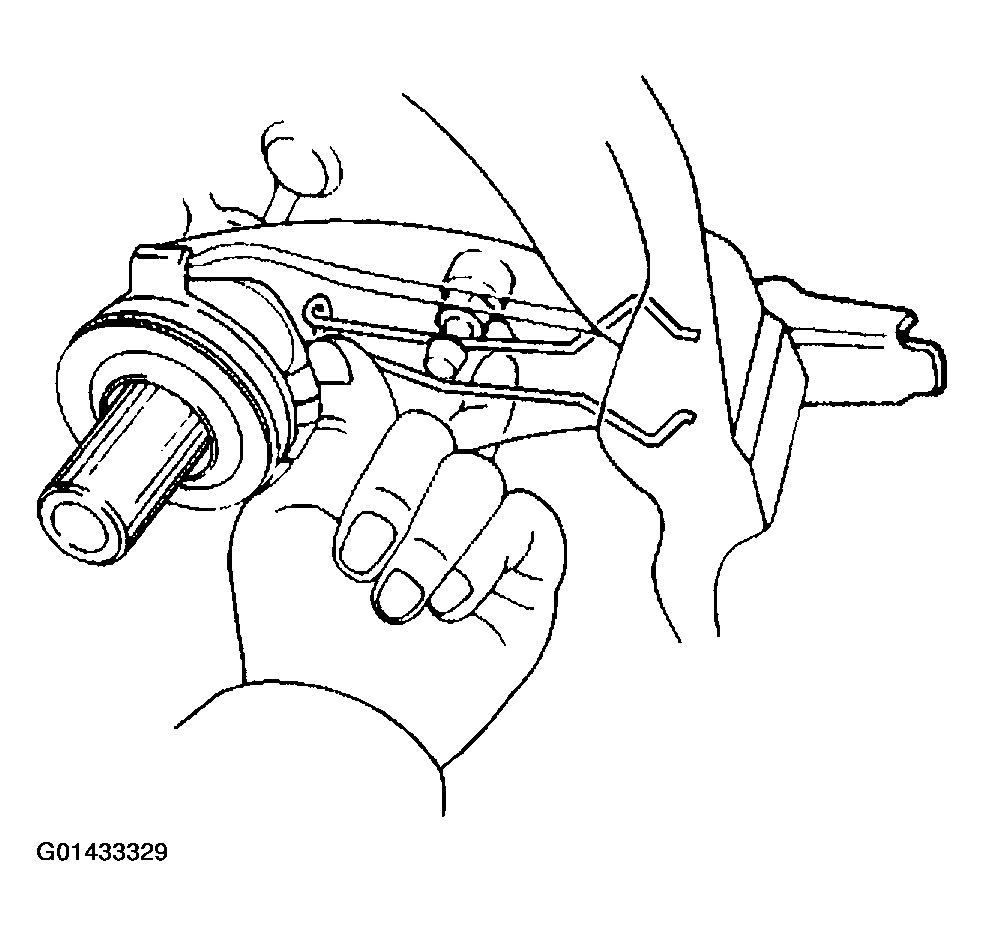

Fig 1: Installing Clutch Release Bearing And Clutch Release Fork Assembly
Courtesy of GENERAL MOTORS CORP.
Install the manual transaxle from the vehicle. Refer to TRANSAXLE REPLACEMENT in Manual Transmission -MK5 or TRANSAXLE REPLACEMENT in Manual Transmission - MTN.
