Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the Lower Instrument Panel. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LOWER .
  3. Remove the clevis clip and the pin.

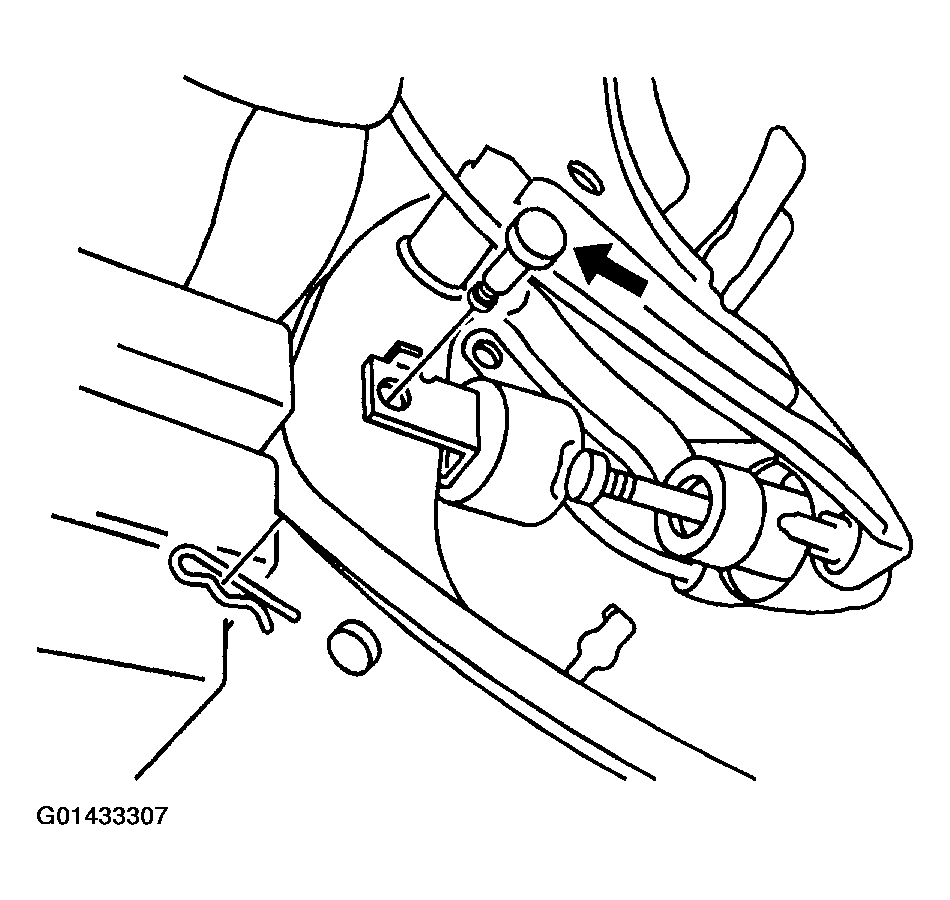

    Fig 1: Removing Clevis Clip And Pin
    G01433307Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the Clutch Pedal Position (CPP) switch electrical connector.
  5. Disconnect the Cruise Control Release (CCR) switch electrical connector.
  6. Remove the 2 pedal assembly bracket retaining nuts and the 1 retaining bolt.
  7. Remove the clutch pedal assembly from the vehicle.

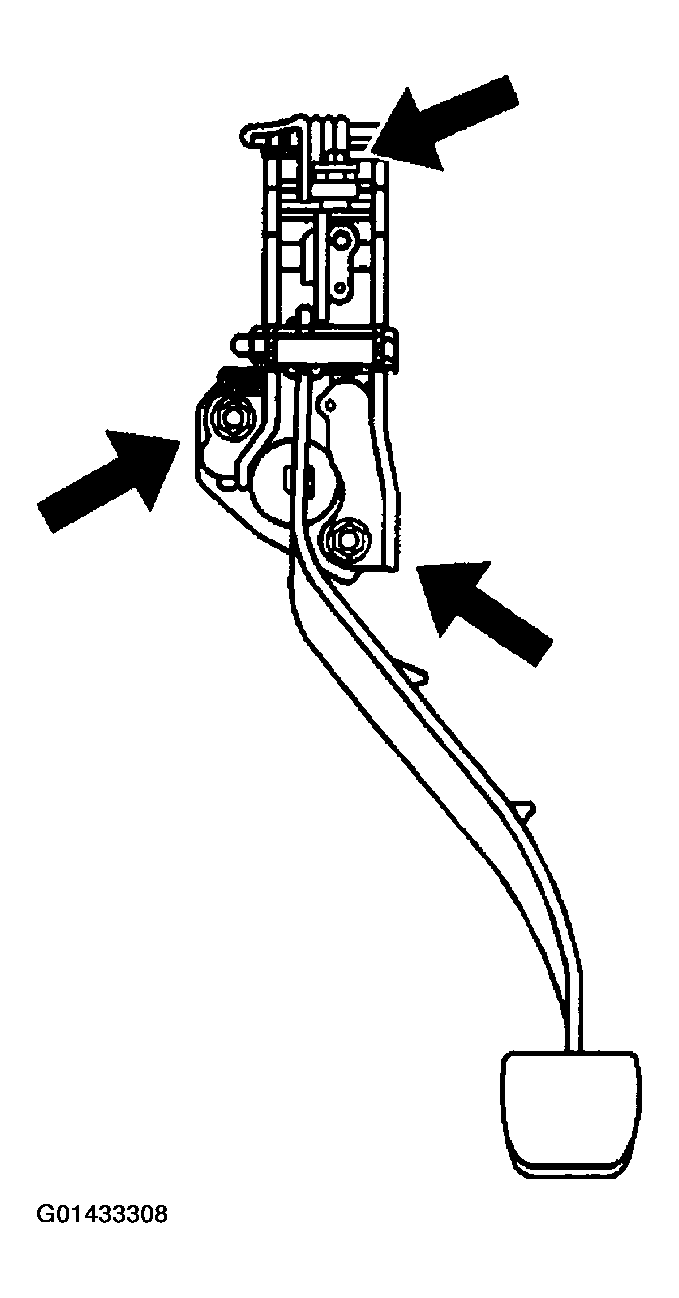

    Fig 2: Removing Clutch Pedal Assembly
    G01433308Courtesy of GENERAL MOTORS CORP.
