Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION .

Disconnect the negative battery cable.
Disconnect the electrical connector from the CPP switch.
Remove the CPP switch from the clutch and the brake pedal bracket by turning the CPP switch counterclockwise.
Remove the CPP switch lock nut from the CPP switch.
Inspect the CPP switch for excessive wear or damage. Replace the switch as necessary.

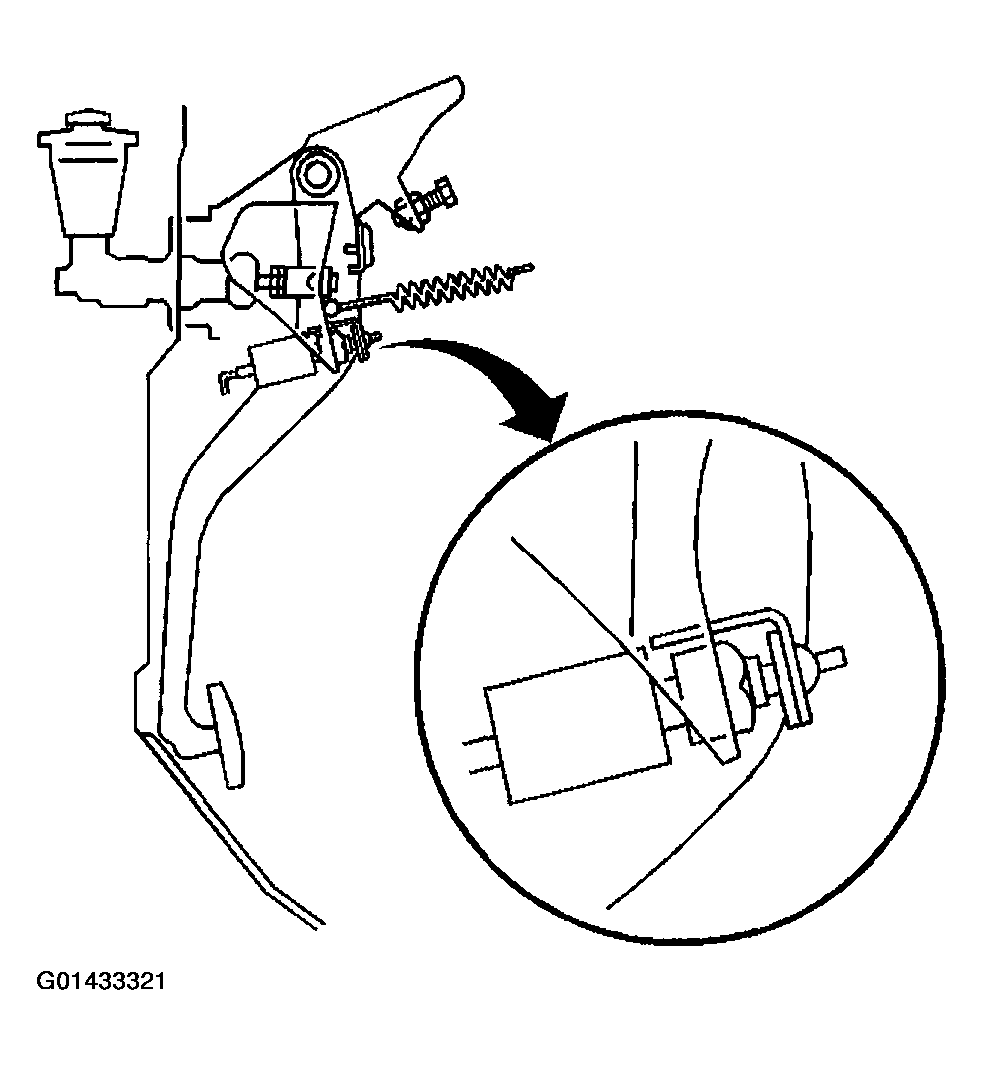

Fig 1: Removing Clutch Pedal Position Switch
Courtesy of GENERAL MOTORS CORP.
