Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the CPP switch lock nut to the CPP switch.
Install the CPP switch into the clutch and the brake pedal bracket by turning the CPP switch clockwise.
Use the J 39200 in order to adjust the clutch pedal position CPP switch.

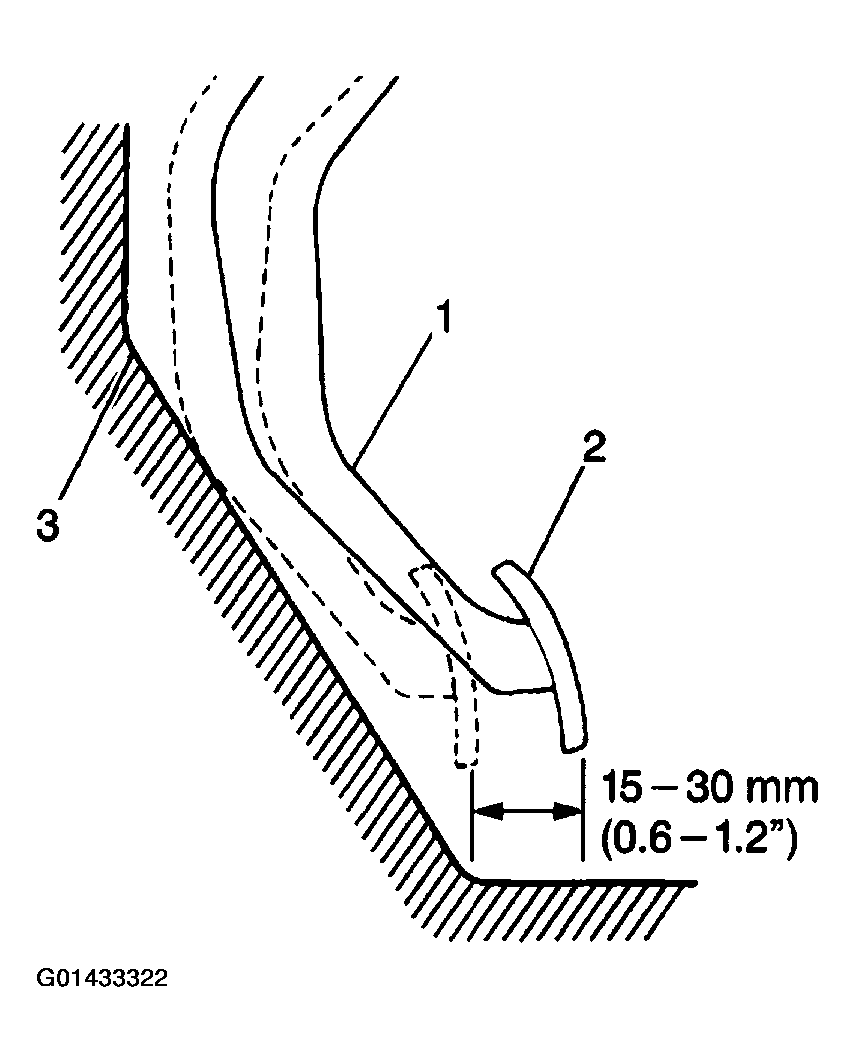

Depress the clutch pedal (2) to the floor (3). Return the clutch pedal within 15-30 mm (0.6-1.2 in) from the floor.

Fig 1: Depressing Clutch Pedal To Floor
Courtesy of GENERAL MOTORS CORP.

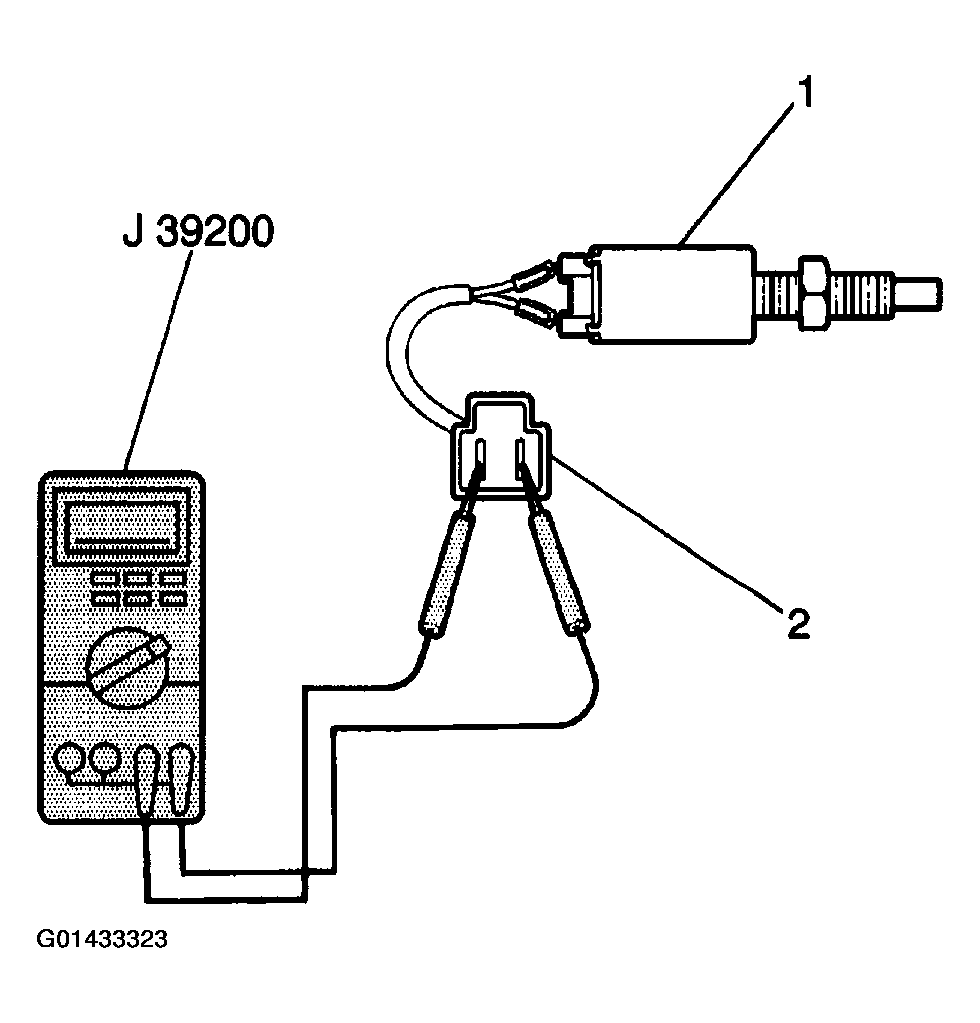

Adjust the probes of J 39200 in contact with both leads of the CPP switch electrical connector (2).

Fig 2: Adjusting Probes Of Digital Multimeter
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Adjust the CPP switch by threading the switch into the clutch and the brake pedal bracket until the continuity is achieved.
Tighten

Tighten the CPP switch lock nut to 13 N.m (115 lb in).
Connect the electrical connector to the CPP switch.
Connect the negative battery cable.
