Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake booster assembly from the vehicle. Refer to HYDRAULIC CLUTCH BLEEDING in Hydraulic Brakes.
Disconnect the clutch reservoir tube from the clutch master cylinder assembly.

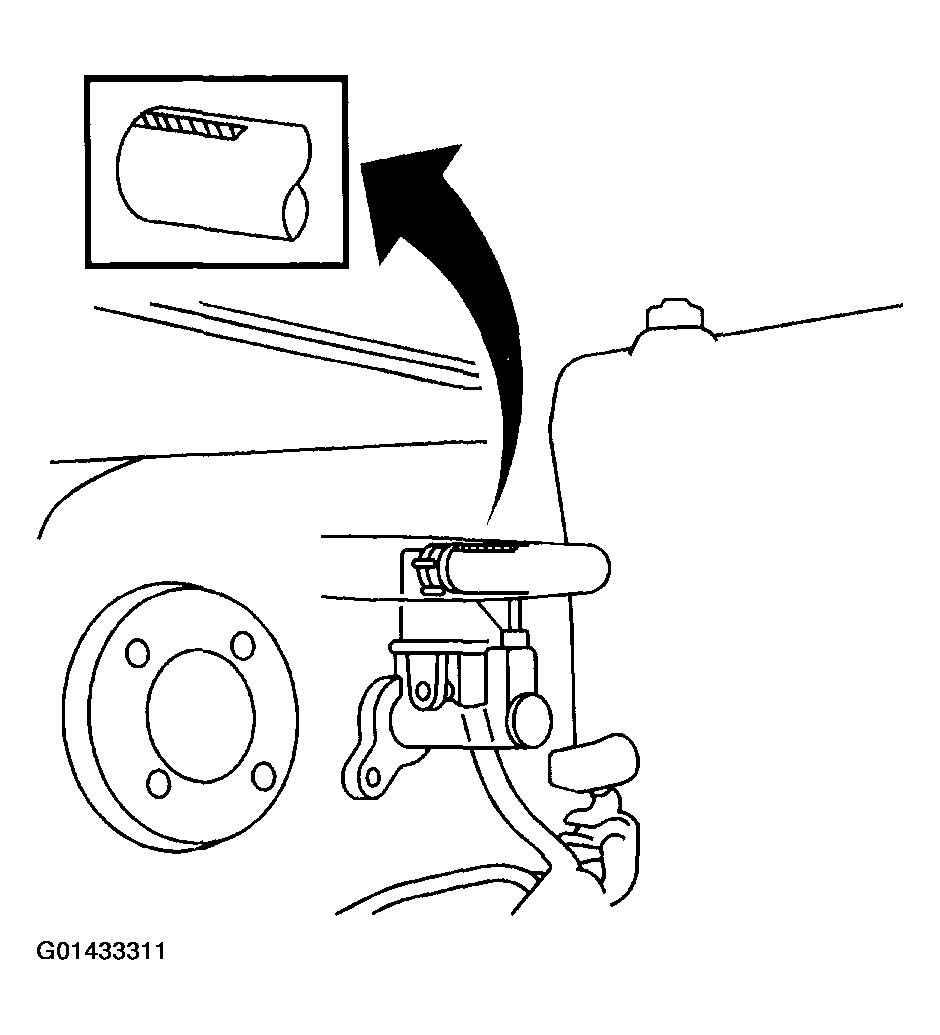

Fig 1: Disconnecting Clutch Reservoir Tube
Courtesy of GENERAL MOTORS CORP.
Disconnect the pipe from the clutch master cylinder.

Fig 2: Disconnecting Pipe From Clutch Master Cylinder
Courtesy of GENERAL MOTORS CORP.
Remove the clutch master cylinder push rod clevis pin and clip.

Fig 3: Removing Clutch Master Cylinder Push Rod Clevis Pin And Clip
Courtesy of GENERAL MOTORS CORP.
Remove the 2 clutch master cylinder retaining nuts.
Remove the clutch master cylinder from the vehicle.

Fig 4: Removing Clutch Master Cylinder
Courtesy of GENERAL MOTORS CORP.
