Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clutch master cylinder in the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the clutch master cylinder retaining nuts.

    Tighten

    Tighten the clutch master cylinder retaining nuts to 12 N.m (9 lb ft).

    Fig 1: Installing Clutch Master Cylinder
    G01433315Courtesy of GENERAL MOTORS CORP.
  3. Install the clevis pin and clip.

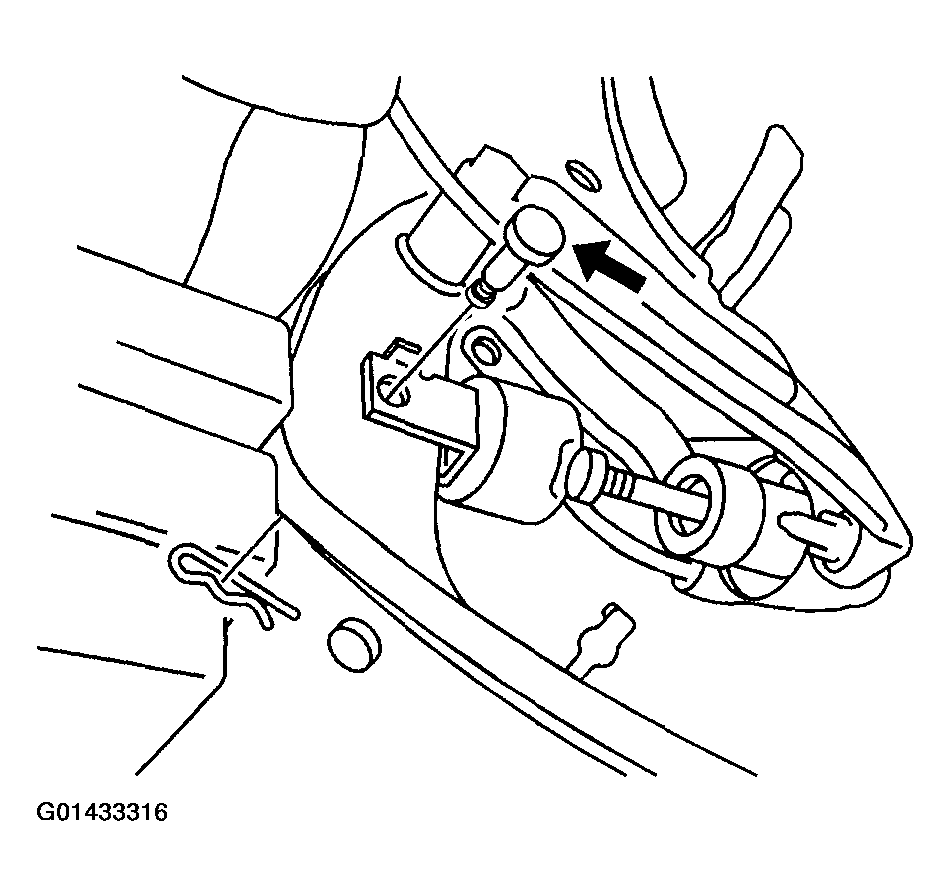

    Fig 2: Installing Clevis Pin And Clip
    G01433316Courtesy of GENERAL MOTORS CORP.
  4. Install the hydraulic pipe to the clutch master cylinder.
    Fig 3: Installing Hydraulic Pipe To Clutch Master Cylinder
    G01433317Courtesy of GENERAL MOTORS CORP.
  5. Install the brake booster assembly in the vehicle. Refer to HYDRAULIC CLUTCH BLEEDING  in Hydraulic Brakes.
  6. Connect the reservoir tube to the clutch master cylinder.
  7. Bleed the clutch. Refer to VACUUM BRAKE BOOSTER REPLACEMENT

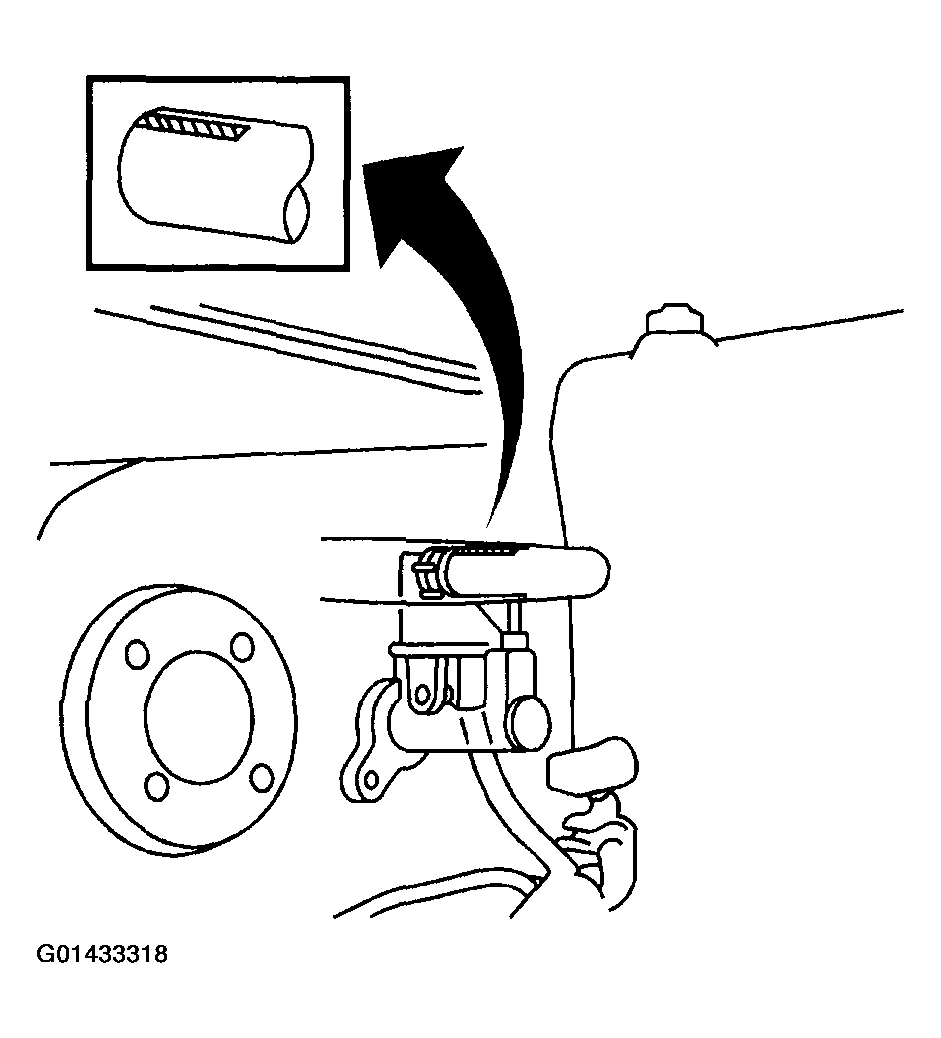

    Fig 4: Connecting Reservoir Tube To Clutch Master Cylinder
    G01433318Courtesy of GENERAL MOTORS CORP.
