Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch disc to the flywheel with the torsion springs offset toward the transaxle. Use the J 34860 in order to center and hold in place the clutch disc on the flywheel.

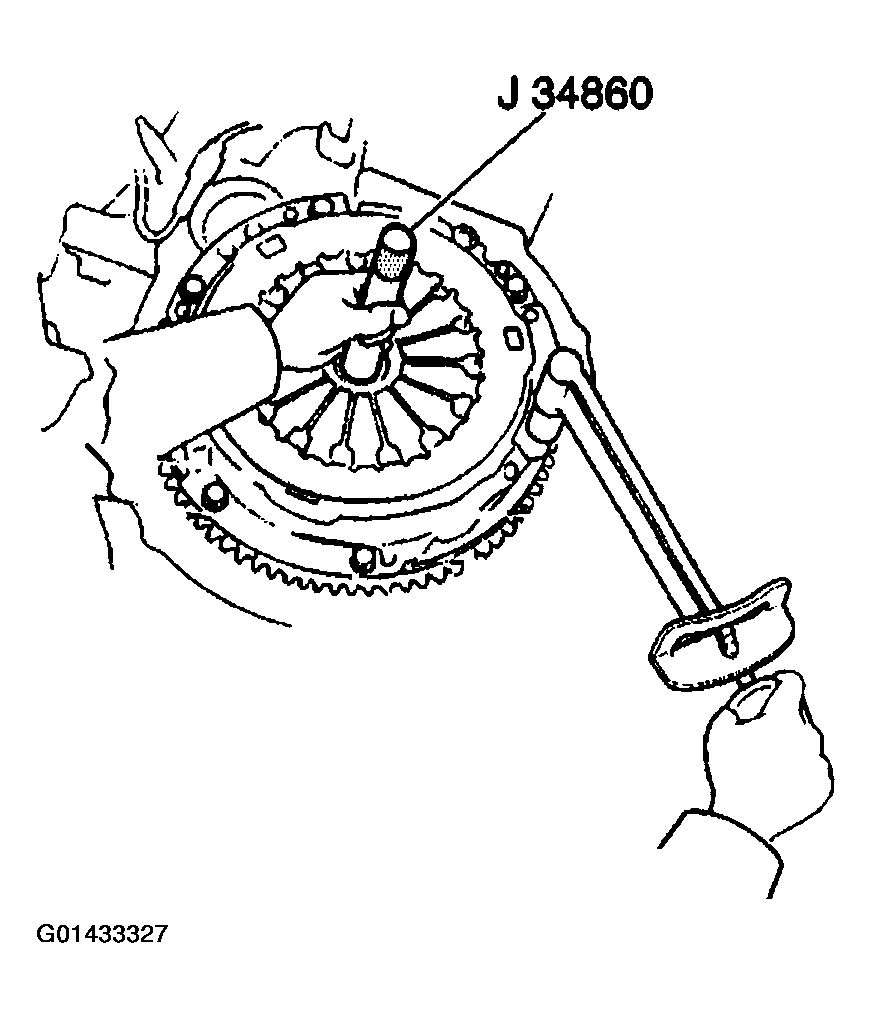

Fig 1: Installing Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
Install the clutch pressure plate to the flywheel. Secure the flywheel with the 6 clutch pressure plate cover bolts.
Tighten

Tighten the clutch pressure plate cover bolts to 19 N.m (14 lb ft).
Remove the J 34860 .
Lubricate the transaxle input shaft splines and clutch release bearing using a thin coat of wheel bearing grease GM P/N 1051344 (Canadian P/N 993037) or the equivalent.
Install the manual transaxle assembly into the vehicle. Refer to TRANSAXLE REPLACEMENT in Manual Transmission -MK5 or TRANSAXLE REPLACEMENT in Manual Transaxle - MTN.
