Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clutch actuator cylinder fluid line from the clutch actuator cylinder.

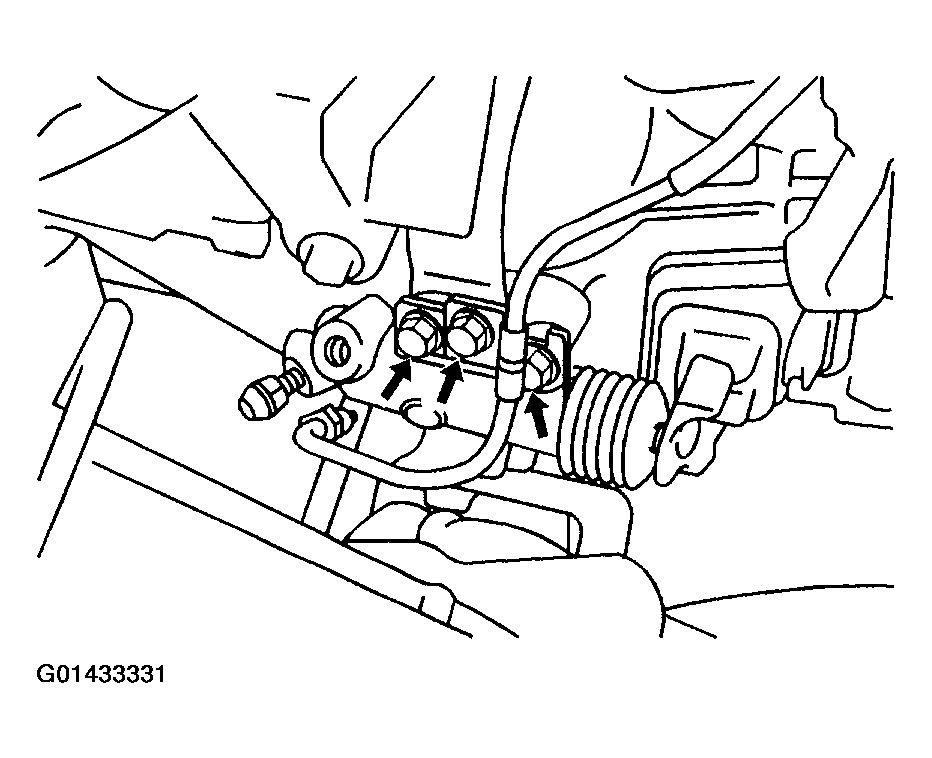

Fig 1: Removing Clutch Actuator Cylinder Fluid Line
Courtesy of GENERAL MOTORS CORP.
Remove the clutch actuator cylinder bolts.
Remove the clutch actuator cylinder from the transaxle.

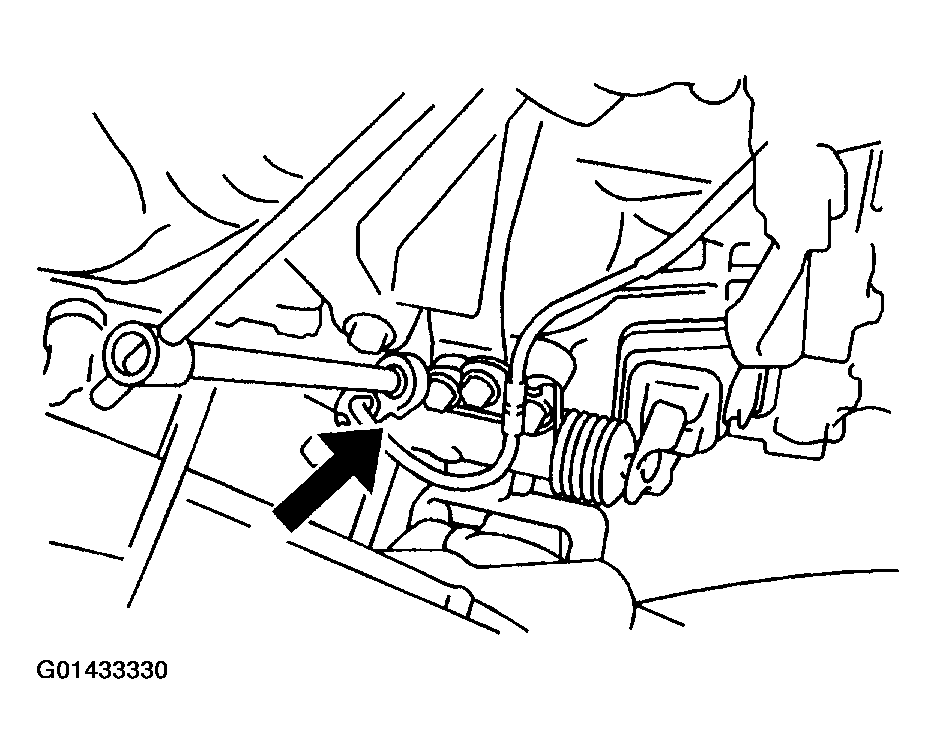

Fig 2: Removing Clutch Actuator Cylinder
Courtesy of GENERAL MOTORS CORP.
