Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch actuator cylinder to the transaxle.

Fig 1: Installing Clutch Actuator Cylinder
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the clutch actuator cylinder bolts.
Tighten

Tighten the clutch actuator cylinder bolts to 12 N.m (9 lb ft).
Install the clutch actuator cylinder fluid line to the clutch actuator cylinder.

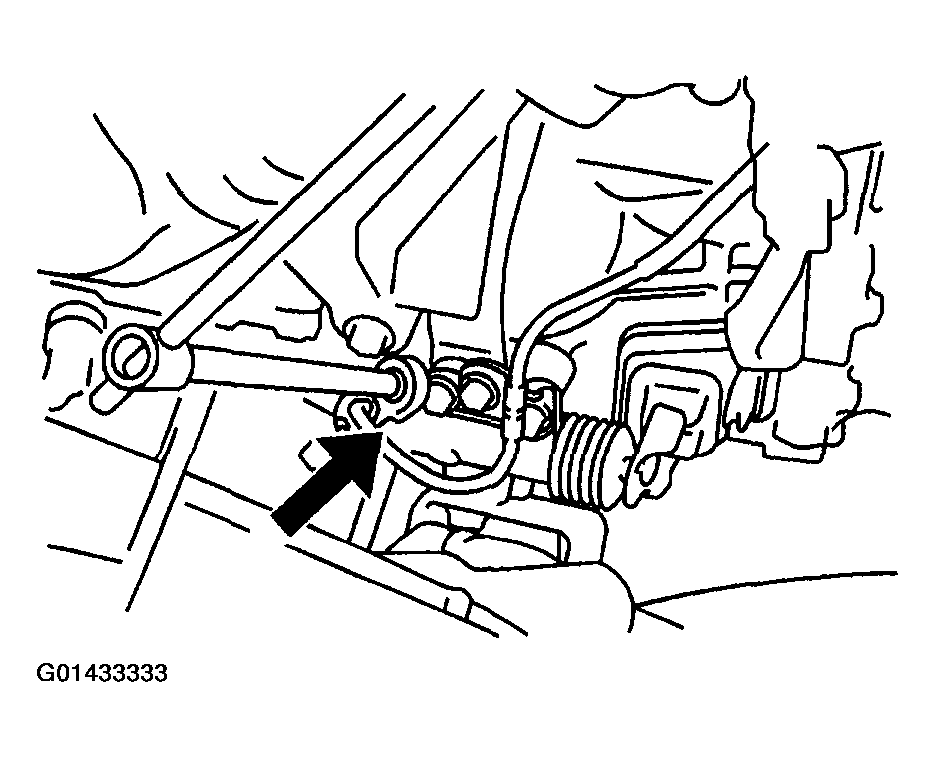

Fig 2: Installing Clutch Actuator Cylinder Fluid Line
Courtesy of GENERAL MOTORS CORP.
Bleed the hydraulic clutch system. Refer to HYDRAULIC CLUTCH BLEEDING .
