Transaxle Specifications

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

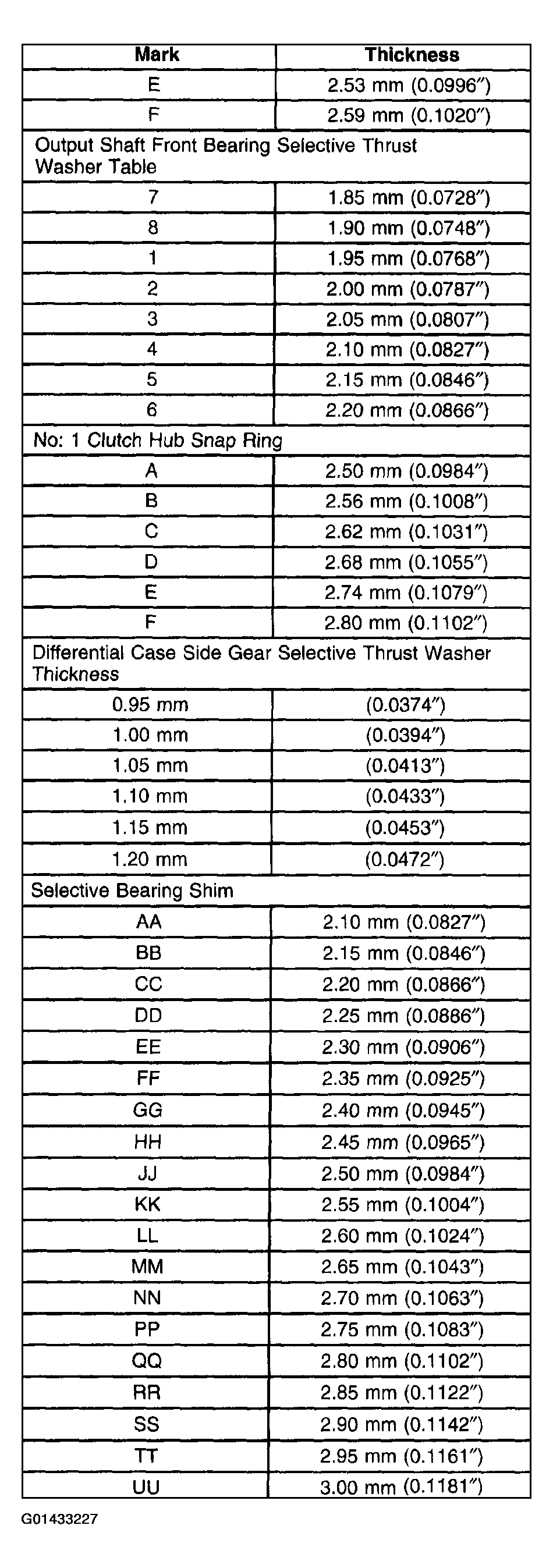

Fig 1: Transaxle Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

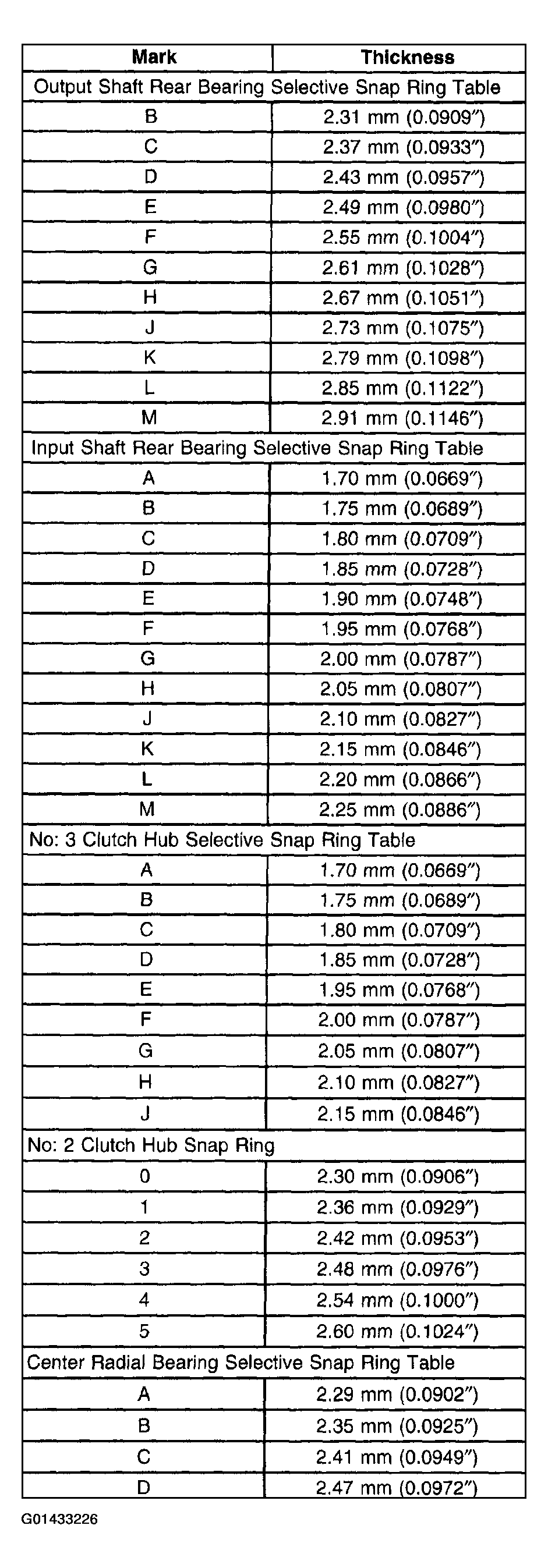

Fig 2: Transaxle Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
