Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Disconnect the vehicle speed sensor (VSS) electrical connector (1).
  3. Remove the 1 retaining bolt and the VSS from the transaxle.
  4. Inspect the VSS O-ring for cuts or damage. Replace as necessary.

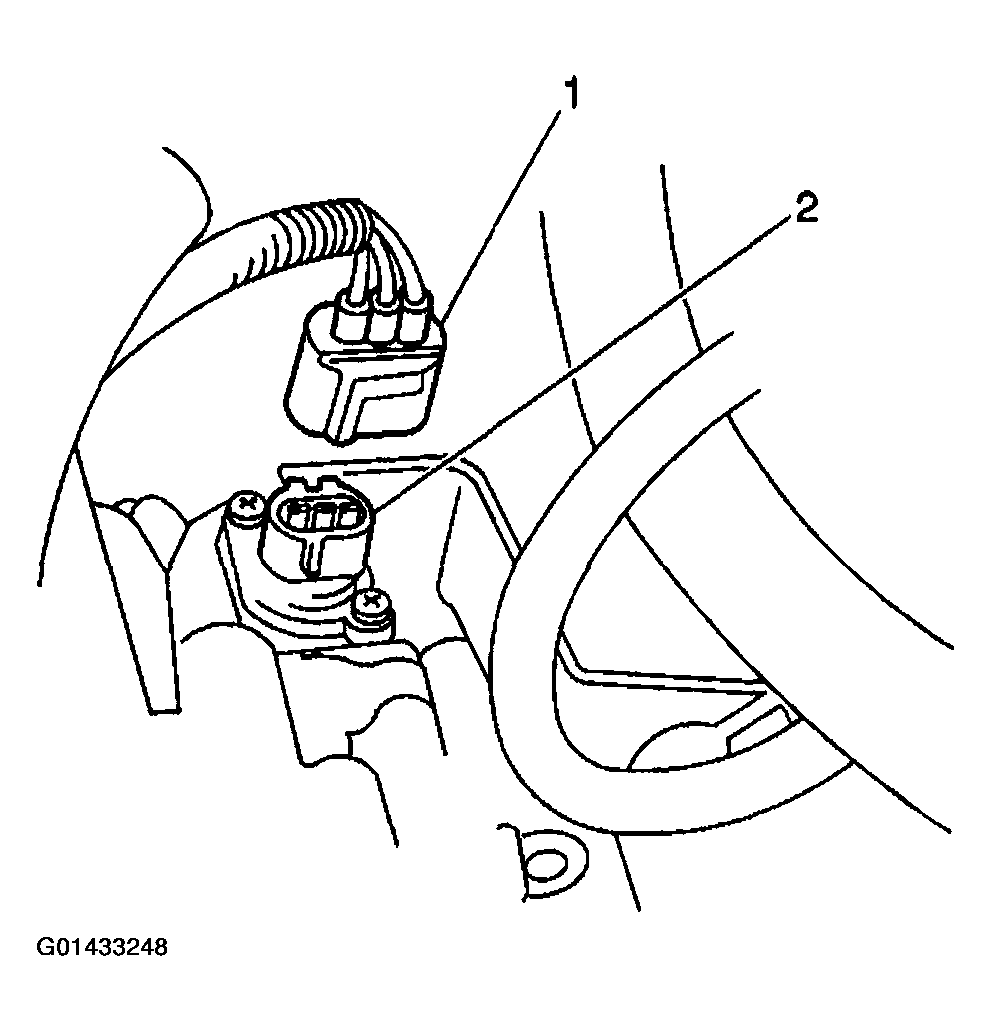

    Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
    G01433248Courtesy of GENERAL MOTORS CORP.
