Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .

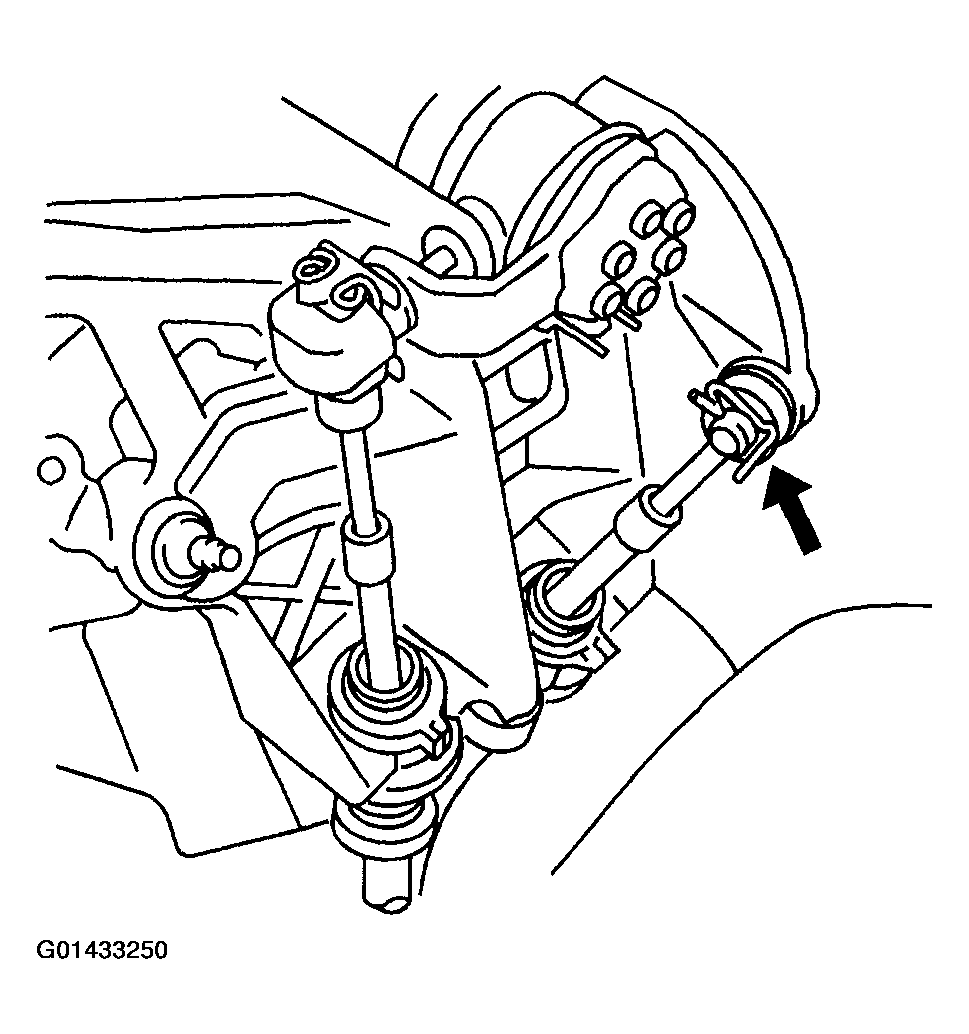

Fig 1: Removing Clip And Washer
G01433250Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable.
  2. Remove the knob.
  3. Remove the center instrument trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.
  4. Remove the instrument compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  5. Remove the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.
  6. Remove the clip and washer, then disconnect the cable end from the shift lever assembly.
  7. Turn the cable lock, then disconnect the shift cable from the shift lever assembly.

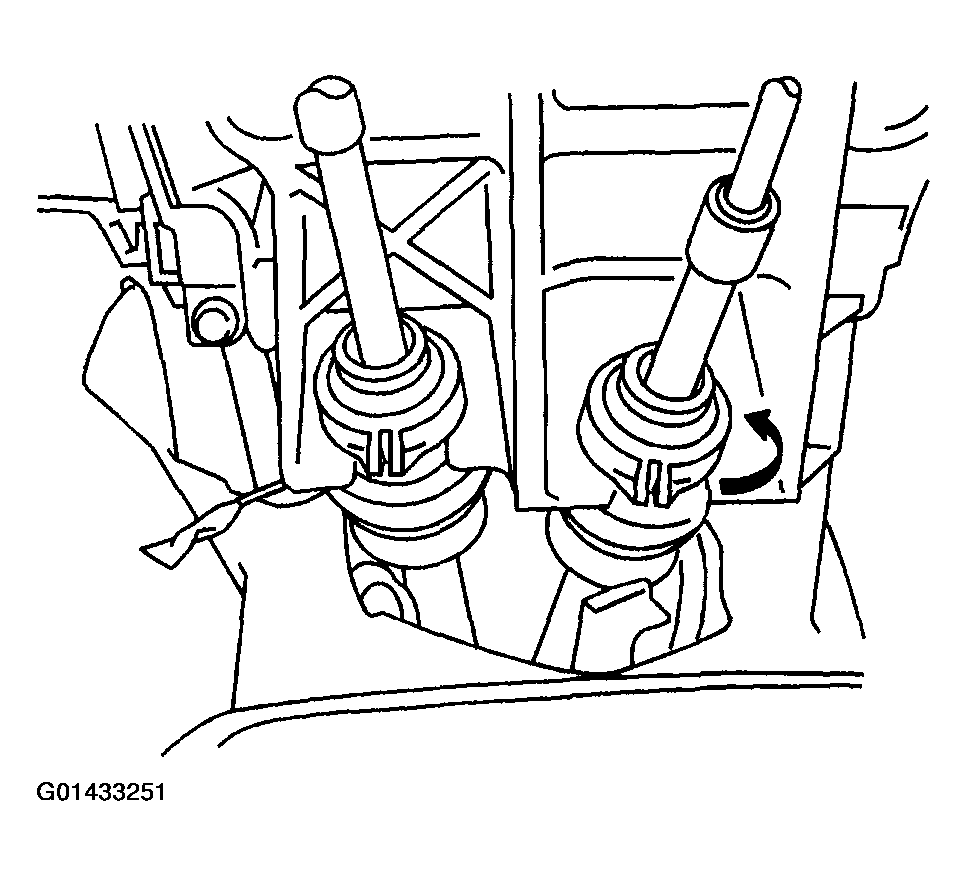

    Fig 2: Turning Cable Lock, Then Disconnecting Shift Cable From Shift Lever Assembly
    G01433251Courtesy of GENERAL MOTORS CORP.
  8. Remove the clip, then disconnect the cable end from the shift lever assembly.

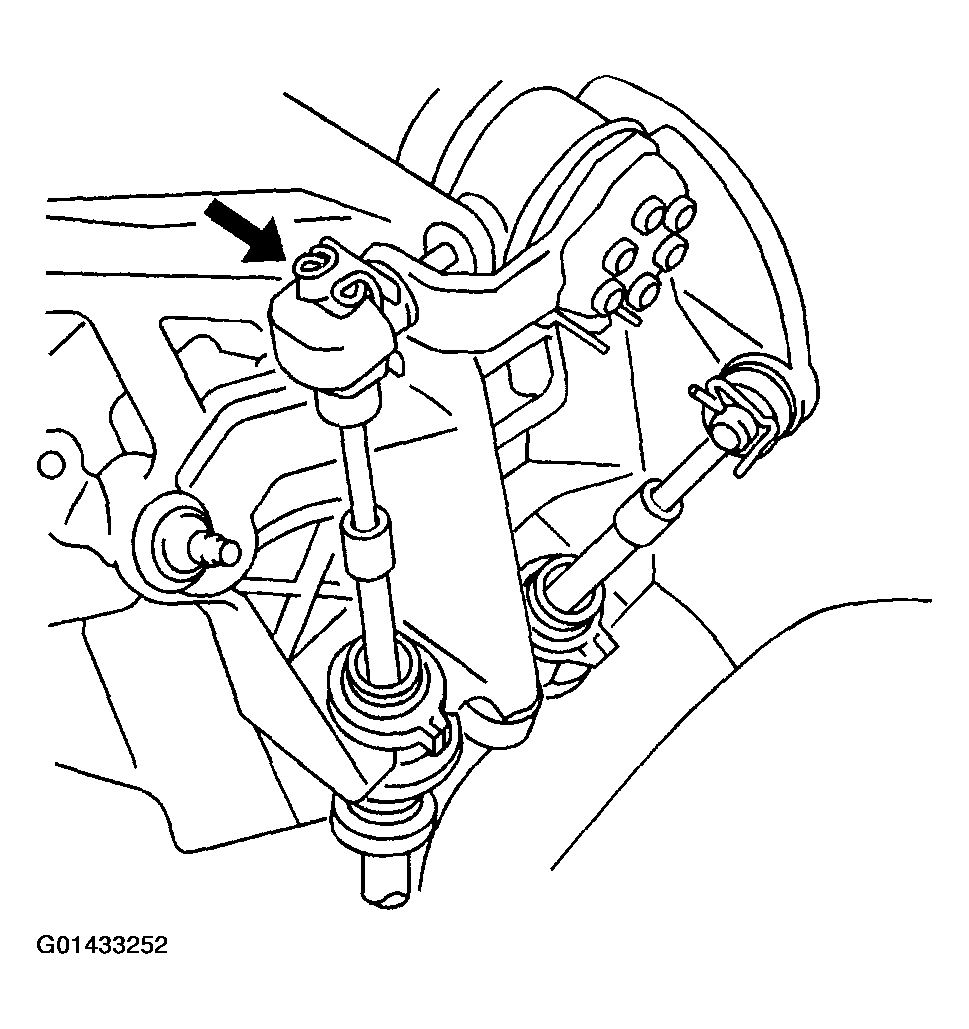

    Fig 3: Removing Clip, And Disconnecting Cable End From Shift Lever Assembly
    G01433252Courtesy of GENERAL MOTORS CORP.
  9. Turn the lock, then disconnect the select cable from the shift lever assembly.
  10. Remove the 4 nuts, then the shift lever assembly.

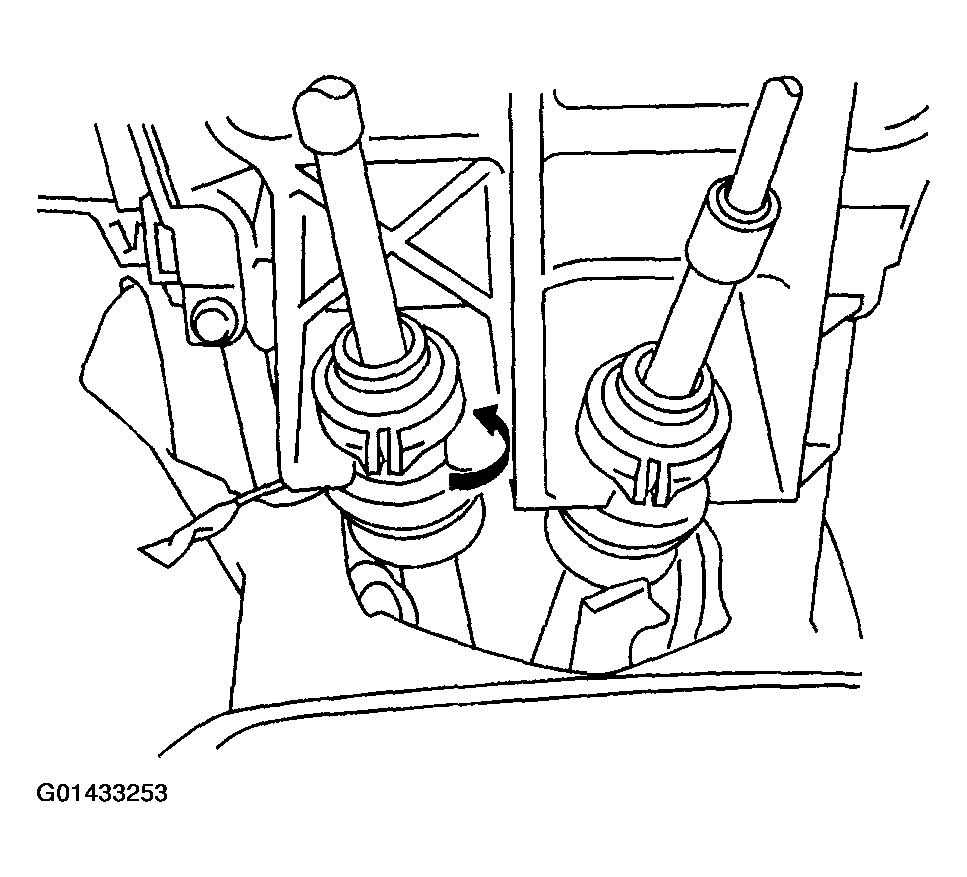

    Fig 4: Turning Lock, And Disconnecting Select Cable From Shift Lever Assembly
    G01433253Courtesy of GENERAL MOTORS CORP.
