Manual Transmission Schematics

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

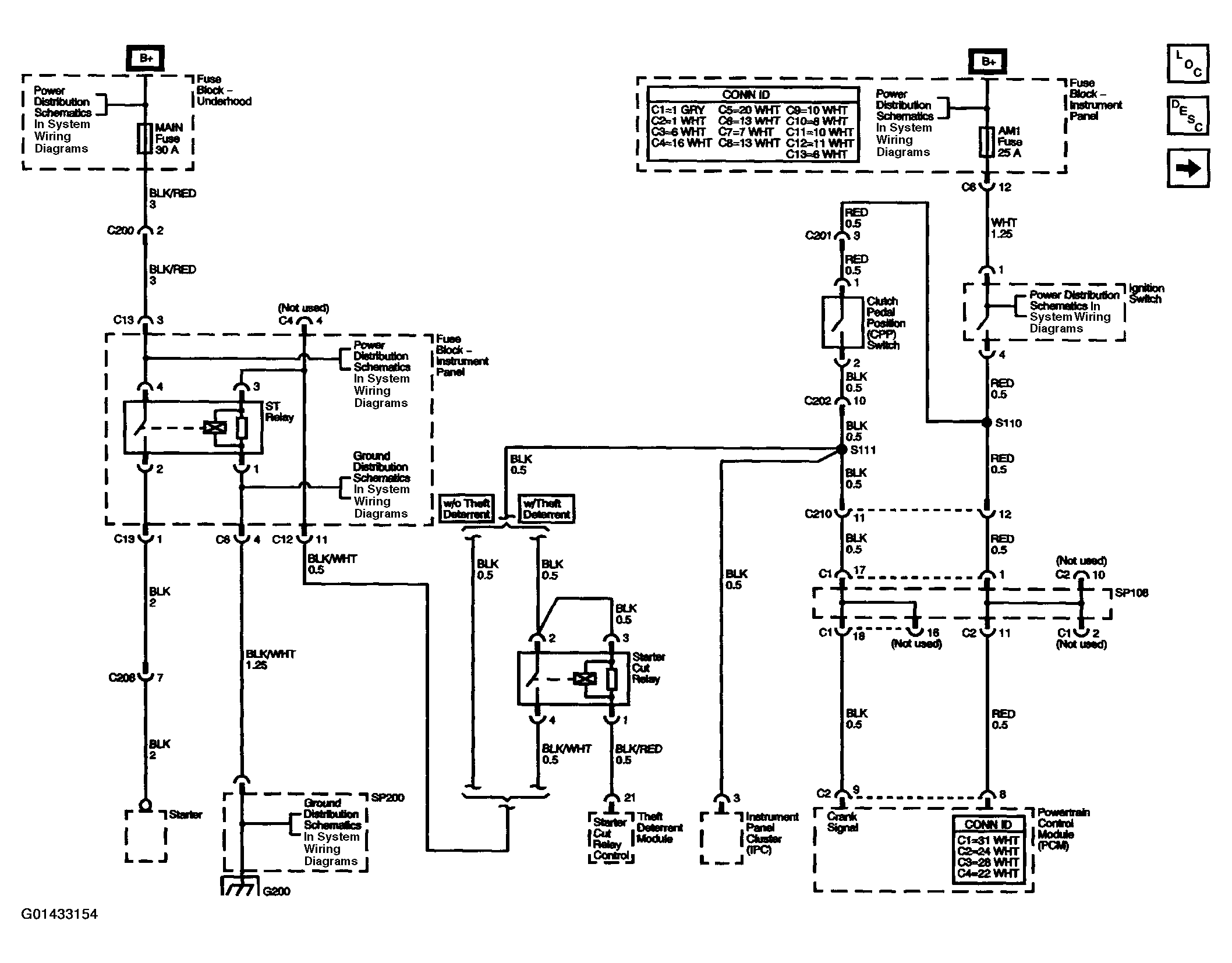

Fig 1: Starter Relay, Clutch Pedal Position (CPP) Switch & Starter Cut Relay Schematic

Courtesy of GENERAL MOTORS CORP.

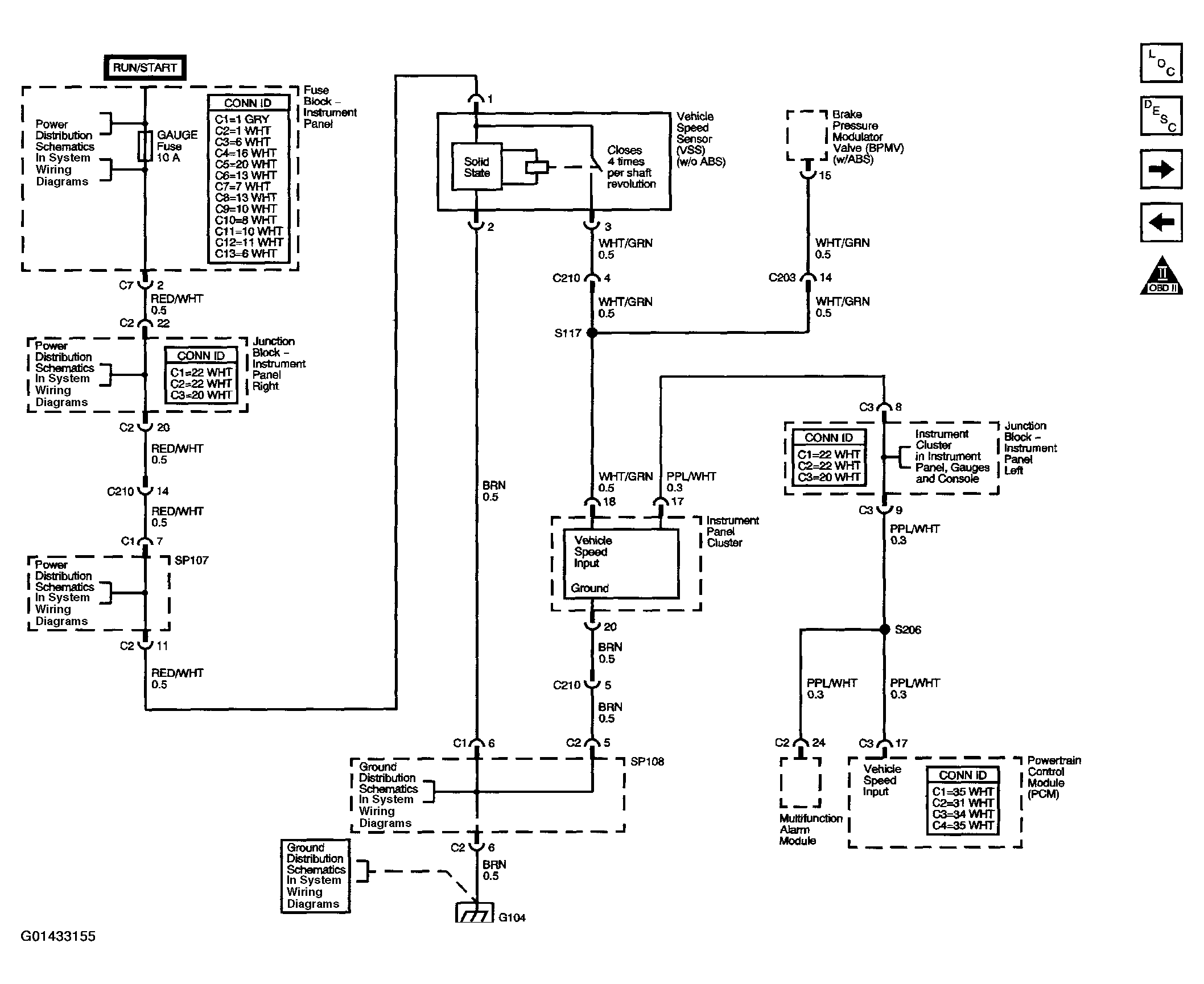

Fig 2: Vehicle Speed Sensor (VSS) Schematic

Courtesy of GENERAL MOTORS CORP.

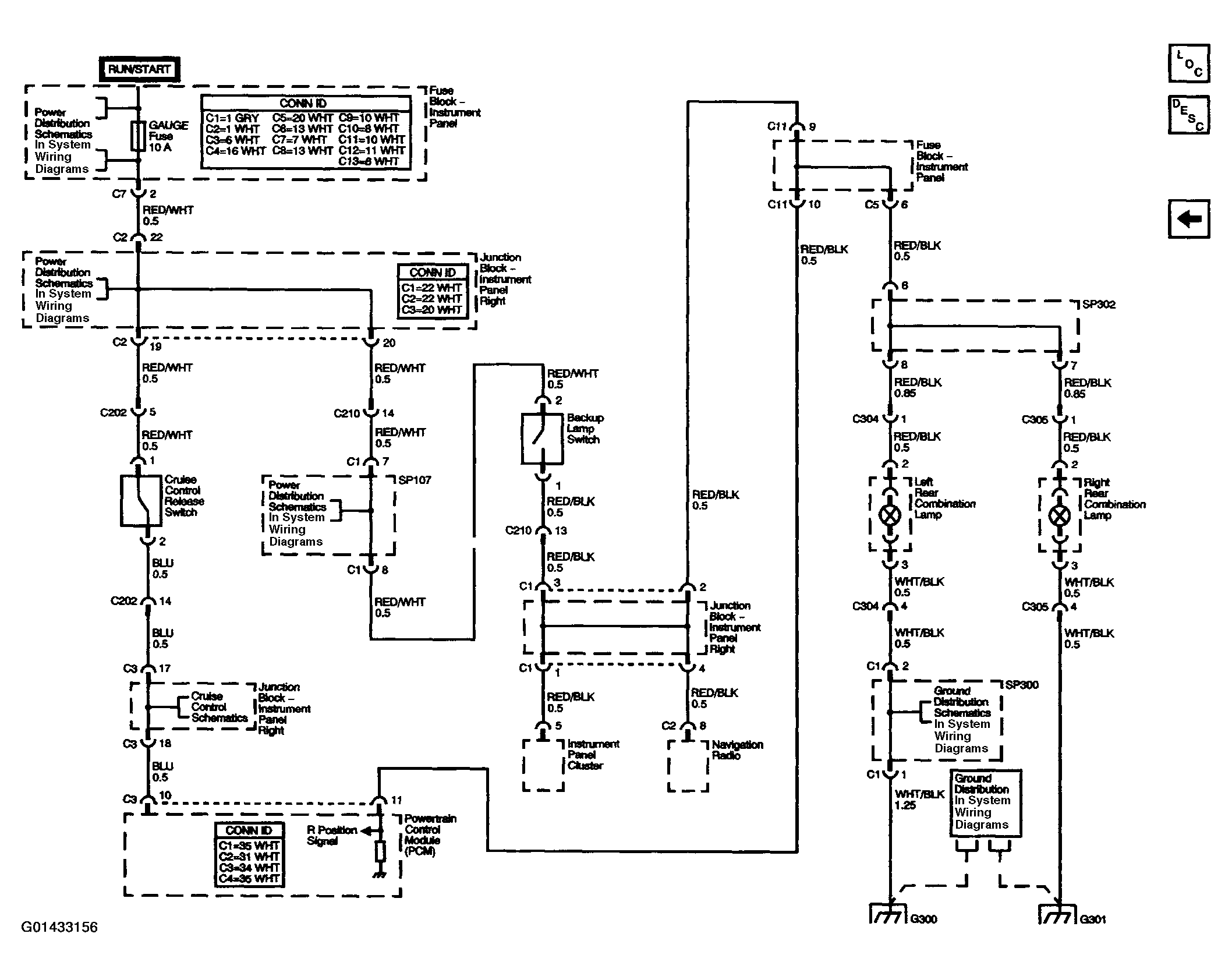

Fig 3: Back Up Lamp Switch & Cruise Control Release Switch Schematic

Courtesy of GENERAL MOTORS CORP.
