Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply J 36850  to the VSS O-ring.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the Vehicle Speed Sensor (VSS) into the transaxle case. Secure the VSS with the retaining bolt.

    Tighten

    Tighten the VSS speed sensor (VSS) bolt to 6 N.m (53 lb in).

  3. Connect the VSS electrical connector (1).
  4. Connect the negative battery cable.

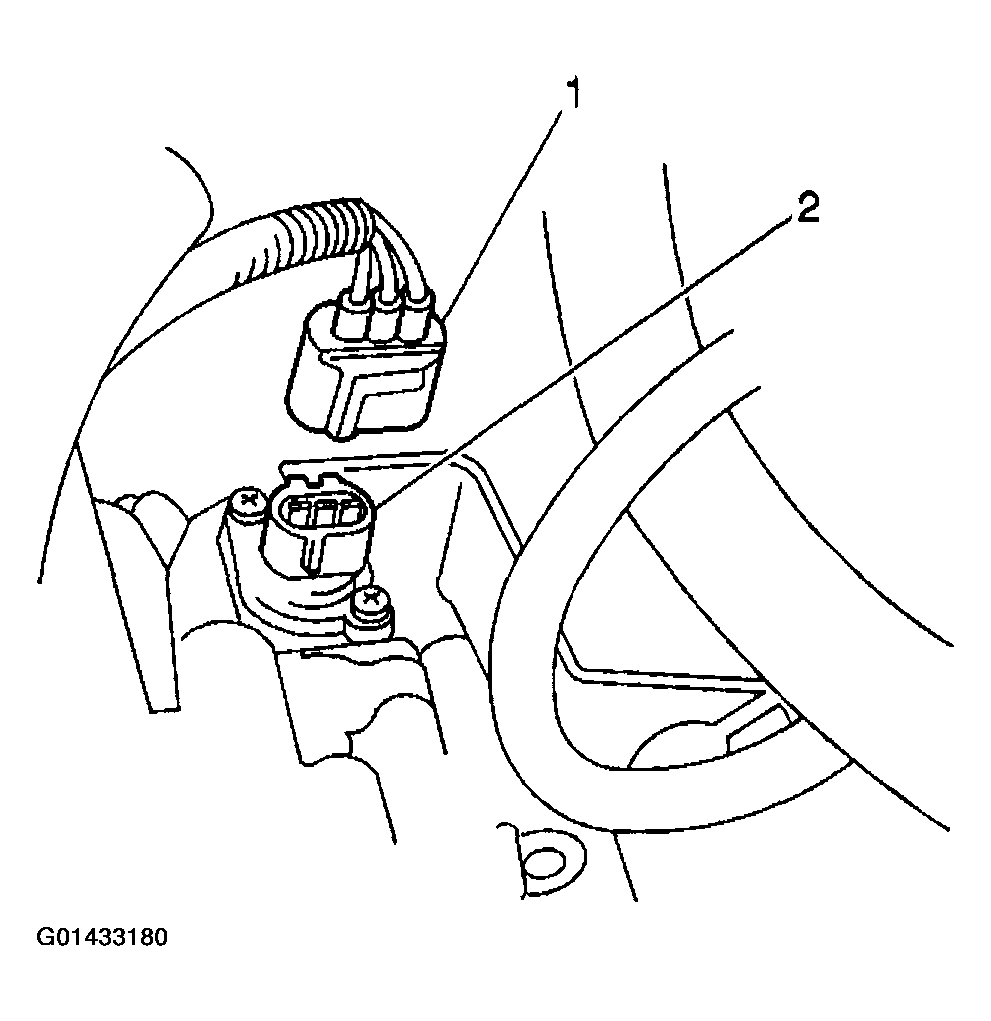

    Fig 1: Connecting VSS Electrical Connector
    G01433180Courtesy of GENERAL MOTORS CORP.
