Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift cables in the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 shift cable grommet retaining bolts.

    Tighten

    Tighten the bolts to 5.0 N.m (44 lb in).

  3. Install the inflatable restraint sensing and diagnostic module from the instrument panel. Refer to SENSING & DIAGNOSTIC MODULE (SDM) in Air Bag Restraint Systems.
  4. Install the gearshift selector assembly. Refer to GEARSHIFT SELECTOR ASSEMBLY REPLACEMENT .
    Fig 1: Installing Shift Cable Grommet Retaining Bolts
    G01433184Courtesy of GENERAL MOTORS CORP.
  5. Install the shift cable clamp on the shift cables, then install the 2 retaining nuts.

    Tighten

    Tighten the nuts to 5.0 N.m (44 lb in).

    Fig 2: Installing Shift Cable Clamp Retaining Nuts
    G01433185Courtesy of GENERAL MOTORS CORP.
  6. Connect the shift cable ends to the transaxle.
  7. Install the shift cable washers and retaining clips (1).
  8. Install the shift cables into the bracket.
  9. Install the shift cable bracket retaining clips (2).
  10. Connect the negative battery cable.

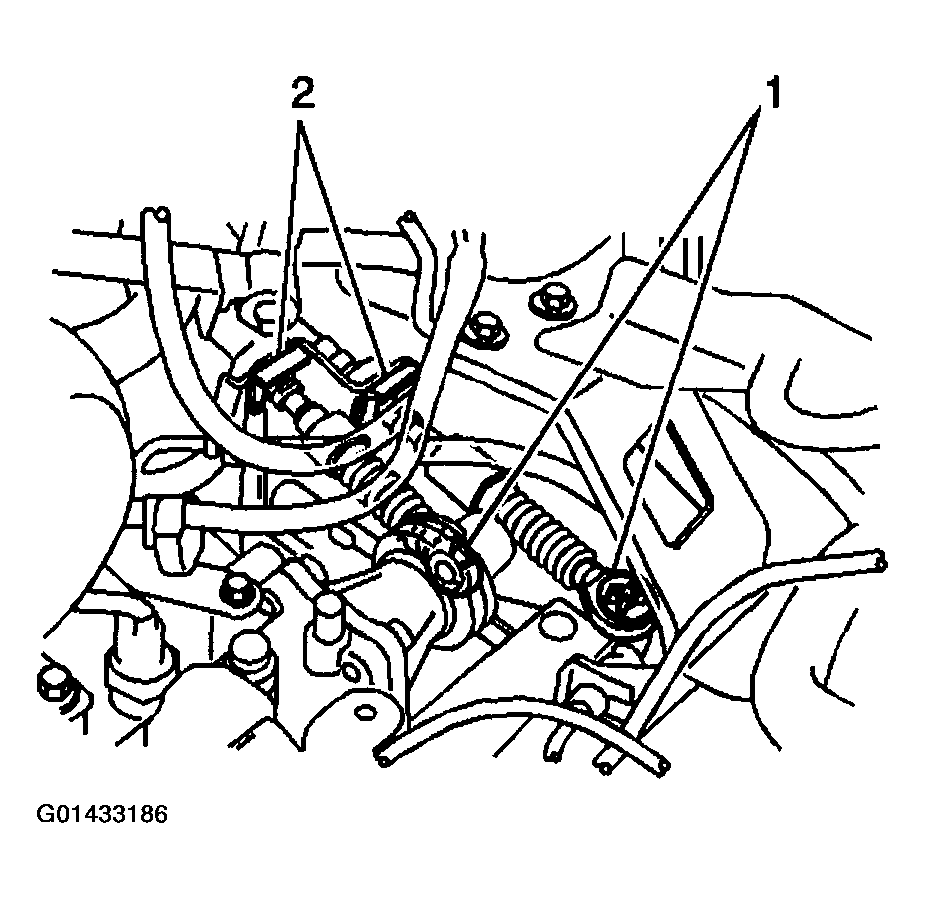

    Fig 3: Installing Shift Cable And Shift Cable Bracket Retaining Clips
    G01433186Courtesy of GENERAL MOTORS CORP.
