Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly.
  2. Disconnect the shift cables from the transaxle assembly. Refer to SHIFT CABLE REPLACEMENT .
  3. Disconnect the backup lamp switch connector from the switch.
  4. Remove the backup lamp switch from the transaxle.

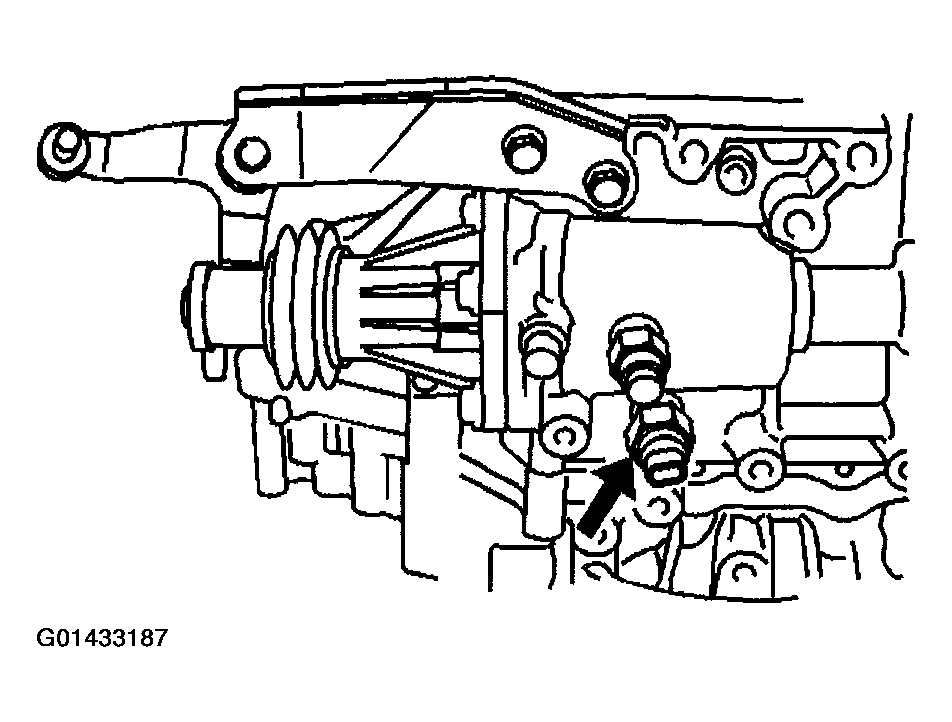

    Fig 1: Removing Backup Lamp Switch From Transaxle
    G01433187Courtesy of GENERAL MOTORS CORP.
  5. Remove the 3 bolts and the shift control support bracket from the transaxle.

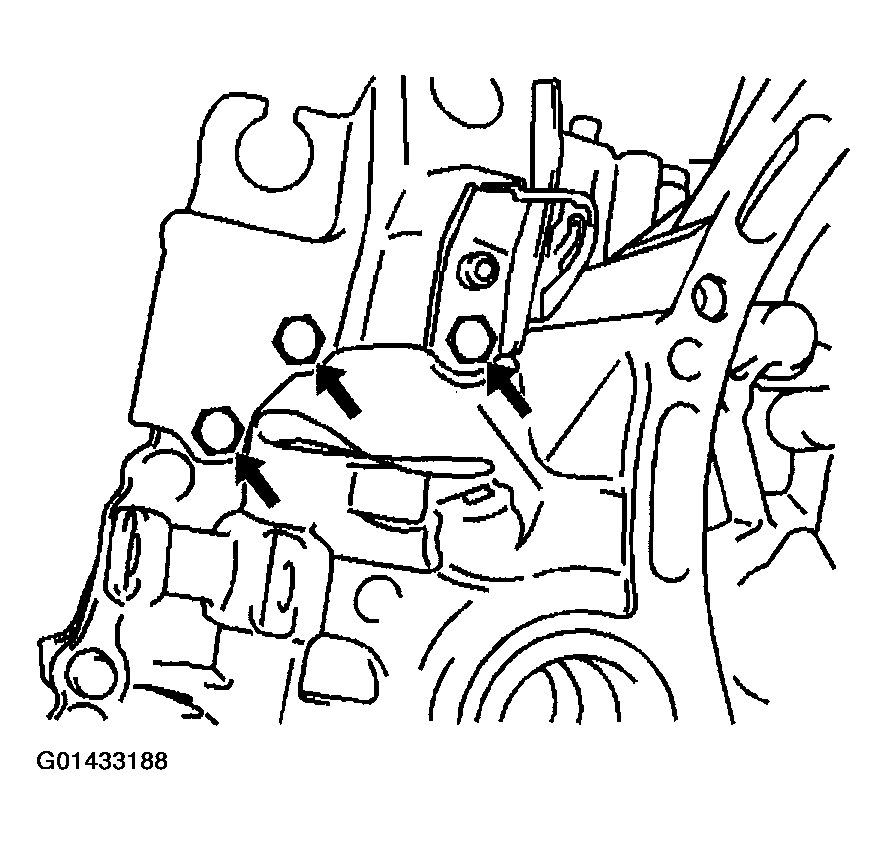

    Fig 2: Removing Bolts And Shift Control Support Bracket From Transaxle
    G01433188Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 bolts and the control shift lever from the transaxle

    Important:  When removing the shift control lever notice that there is a shift control lever bushing and that it must be replaced in its original position, or incorrect shifting may occur.

  7. Remove the shift control lever bushing from the transaxle.

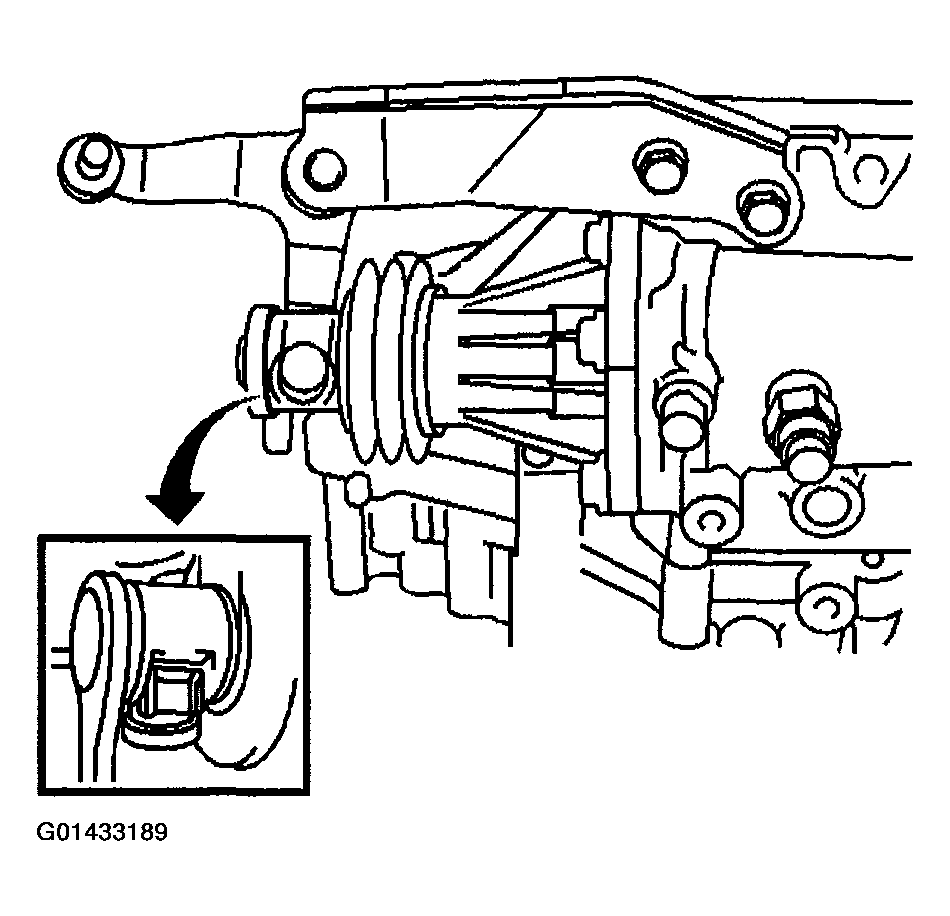

    Fig 3: Removing Shift Control Lever Bushing From Transaxle
    G01433189Courtesy of GENERAL MOTORS CORP.
  8. Remove the lock ball assembly from the transaxle.

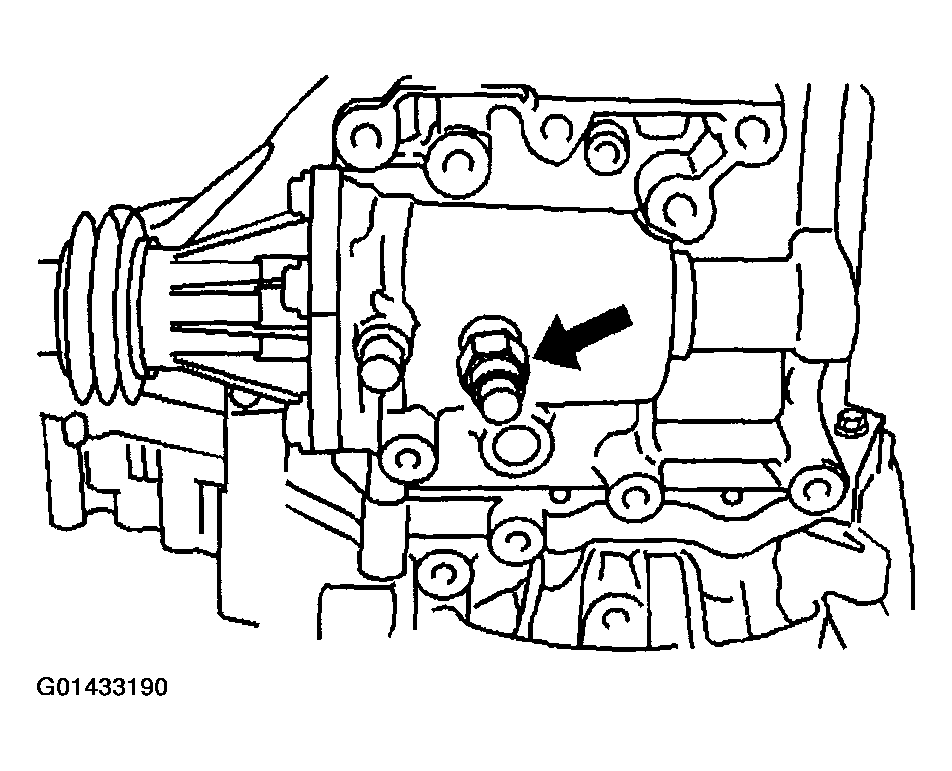

    Fig 4: Removing Lock Ball Assembly From Transaxle
    G01433190Courtesy of GENERAL MOTORS CORP.
  9. Remove the 4 gear case lever bolts.
  10. Remove the gear case lever assembly from the transaxle.
  11. Remove the gasket.

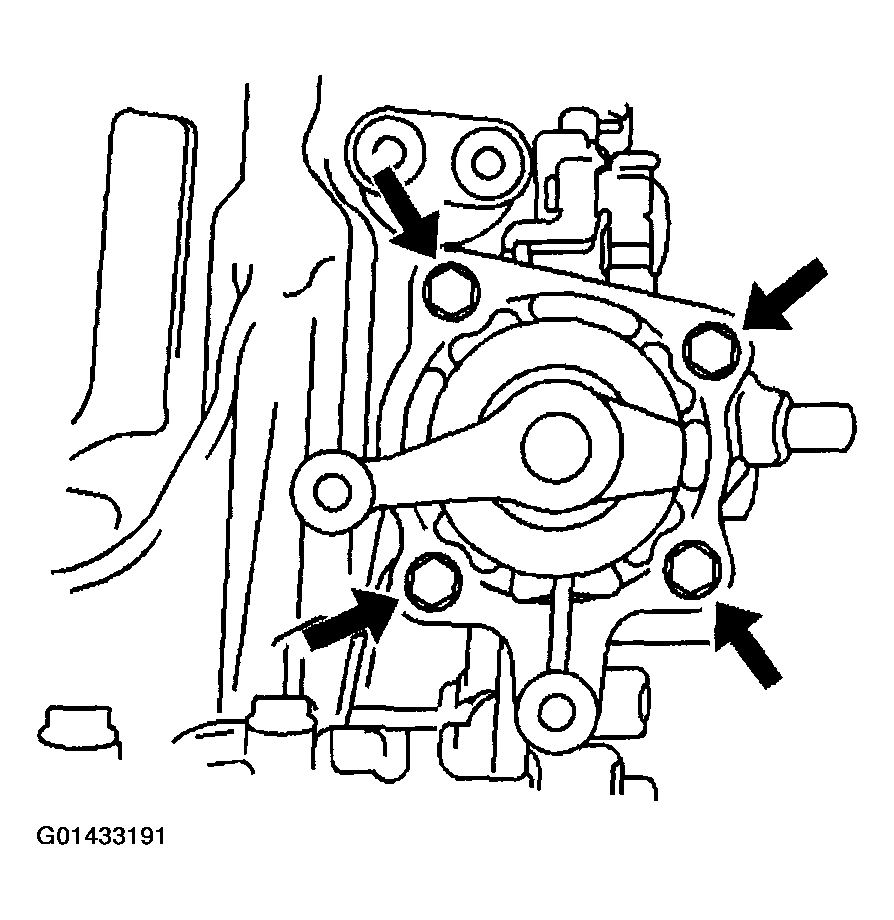

    Fig 5: Removing Gear Case Lever Bolts
    G01433191Courtesy of GENERAL MOTORS CORP.
