Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing or installing the backup lamp switch, do not use an open end wrench. Use only a socket in order to avoid damage to the switch assembly.

NOTE: Refer to FASTENER NOTICE .

Install the backup light switch with a new gasket.
Tighten

Tighten the switch to 40 N.m (30 lb ft).

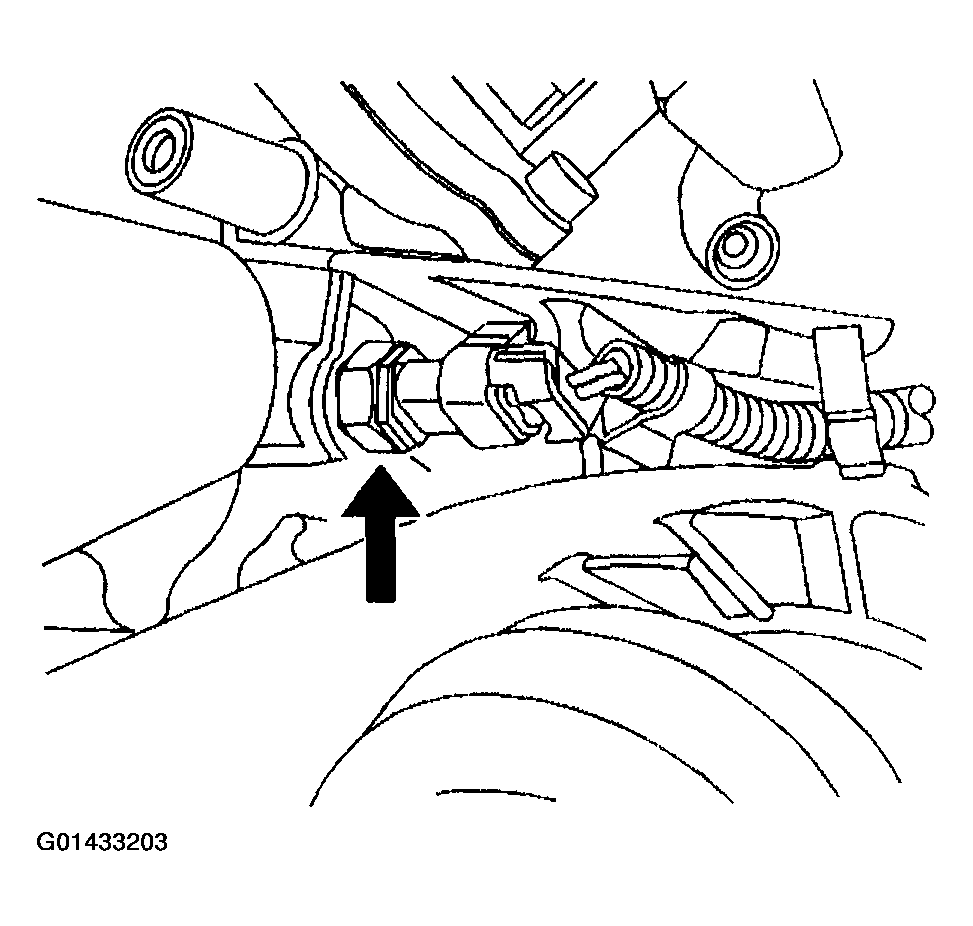

Fig 1: Installing Backup Light Switch With A New Gasket
Courtesy of GENERAL MOTORS CORP.
Connect the backup lamp connector.

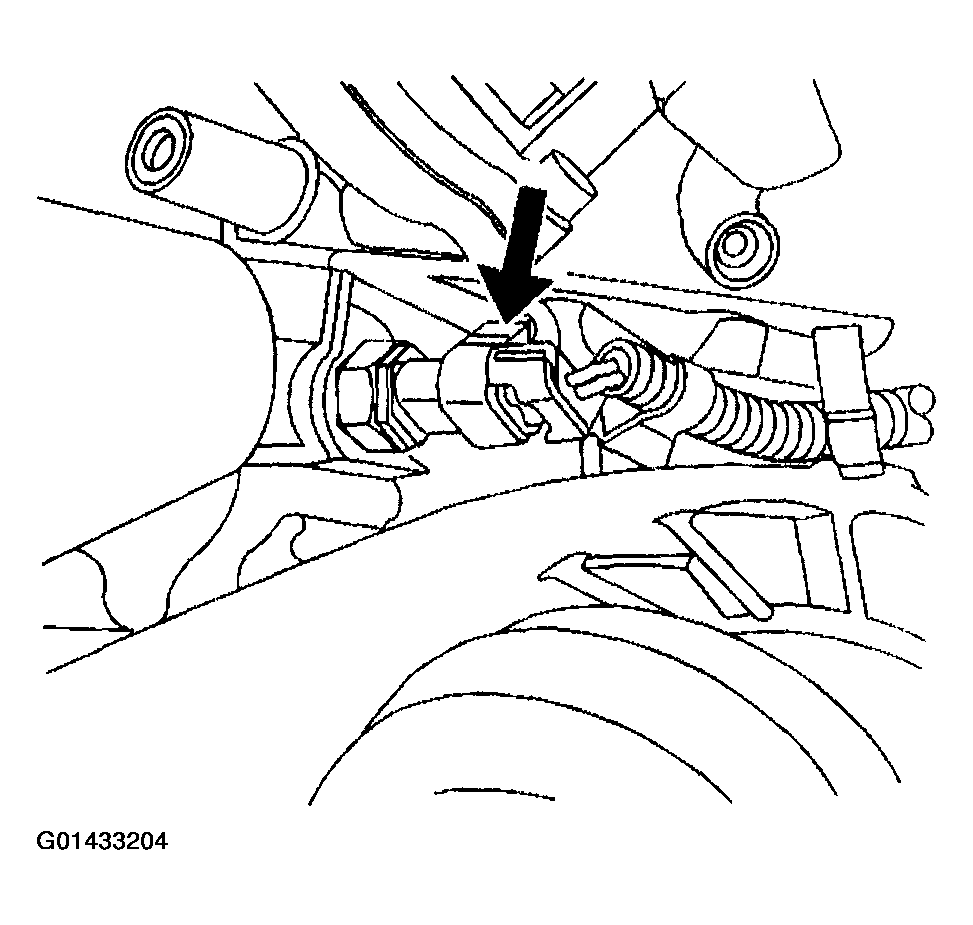

Fig 2: Connecting Backup Lamp Connector
Courtesy of GENERAL MOTORS CORP.
